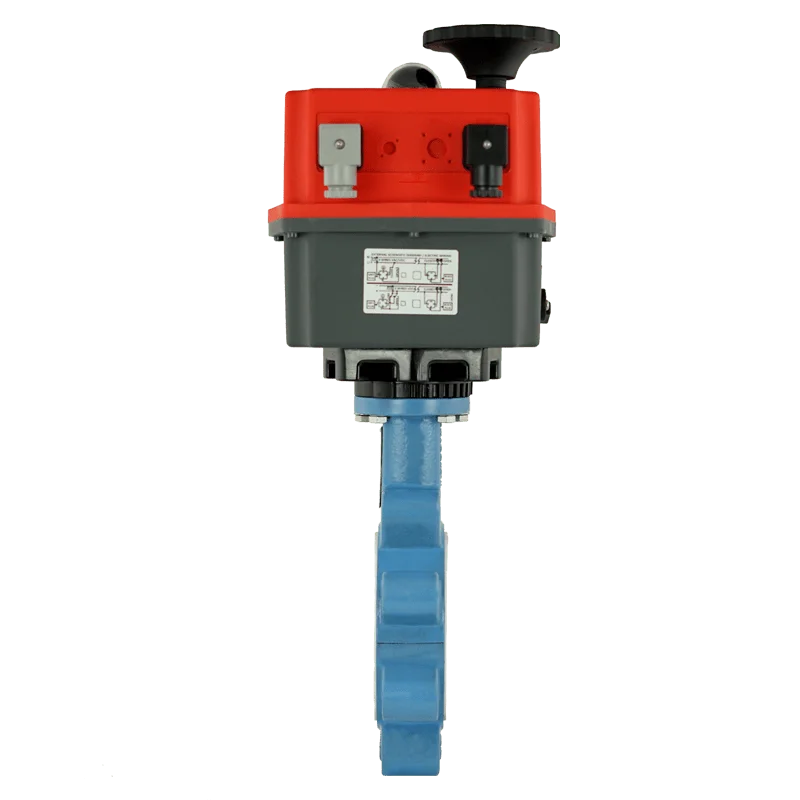

AK130 Butterfly valve DN 100 PN16 PTFE PFA lined electric actuator
Product number 150-1303-12-EL
Price €979.28
€1,165.34 incl. VAT
Delivery Time: 2-7 Days
Available: In Stock
Contact
Support and advice at:
Mon-Fri, 8:00 a.m. - 5:00 p.m
Mon-Fri, 8:00 a.m. - 5:00 p.m
Payment Methods
Shipping Methods
Description

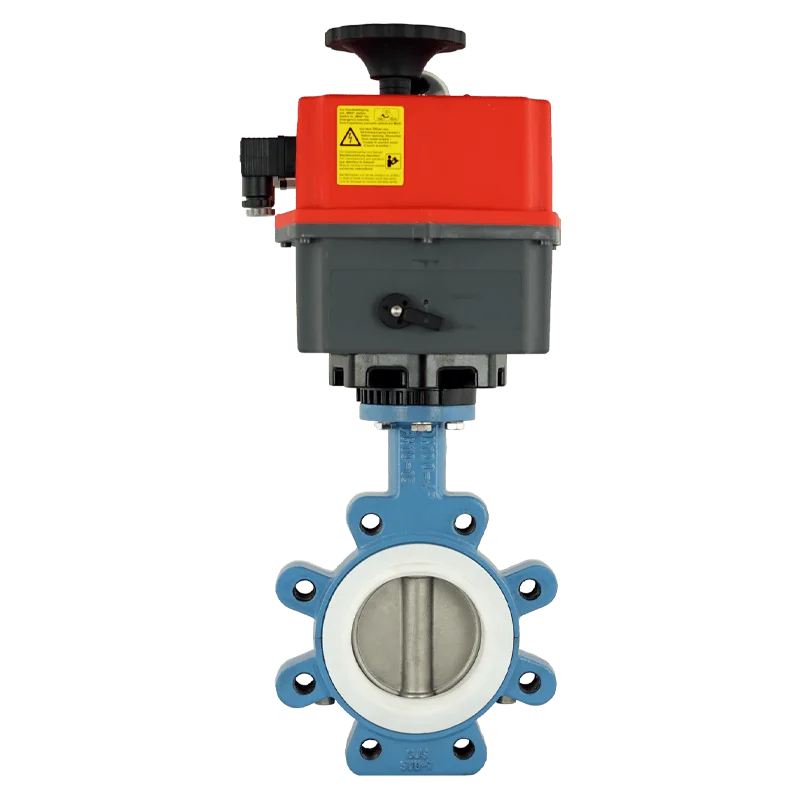

Intermediate flange PTFE lined butterfly valve DN 100, connection PN10/PN16, body made of EN-GSJ-500-7 (GGG50) ductile cast iron, disc made of (CF8M) stainless steel, PFA + PTFE lined, seal made of PTFE with electric actuatorJ4C S140 multivoltage 24V-240V AC/DC
Nominal width : DN100 - 4'' inch
Running time (90°): 34s ± 10%
Connection : Flange PN10 , Flange PN16
Design : Lug
Body: Ductile Cast Iron (GGG50)
Face to Face length : EN558-1, Series 20
Sleeve material : PTFE
Disc : Stainless steel
Temperature range : -25°C to +200°C
Actuation : Electric Actuator
Max. Operating pressure : 10 bar
Option: 24V, 230V, 240V
Availability: In Stock
Tender
Fergo Absperrklappe AK131-DYTLL-DN100-EL Antrieb
Anflanschgehäuse - 2-teilig
Dichtschließend - Zentrisch gelagert
Einbau zw. Flansche PN10, PN16
Optional: Flanschbohrung ANSI150
Gehäuse: EN-GSJ-500-7 (GGG50) Späroguss
Klappenscheibe: ASTM A182 F316 (CF8M), PTFE-Ummantelung
Nenndruck (max.): 10bar
Sitzring: PTFE
Temp. (min. max.): -25°C bis +200°C
Betätigung: Elektroschwenkantrieb Typ: FG-J4C-S140
Multivoltagesystem: 24 - 240V AC/DC, 50/60Hz
Laufzeit (90°): 34s ± 10% • Gehäuse: Polyamid (PA6)
Endlagenschalter: 2x SPST NO 5A 125V AC / 3A 250V AC
Handnotbetätigung
Elektronische Drehmomentbegrenzung
Automatische Schaltraumheizung
Anflanschgehäuse - 2-teilig
Dichtschließend - Zentrisch gelagert
Einbau zw. Flansche PN10, PN16
Optional: Flanschbohrung ANSI150
Gehäuse: EN-GSJ-500-7 (GGG50) Späroguss
Klappenscheibe: ASTM A182 F316 (CF8M), PTFE-Ummantelung
Nenndruck (max.): 10bar
Sitzring: PTFE
Temp. (min. max.): -25°C bis +200°C
Betätigung: Elektroschwenkantrieb Typ: FG-J4C-S140
Multivoltagesystem: 24 - 240V AC/DC, 50/60Hz
Laufzeit (90°): 34s ± 10% • Gehäuse: Polyamid (PA6)
Endlagenschalter: 2x SPST NO 5A 125V AC / 3A 250V AC
Handnotbetätigung
Elektronische Drehmomentbegrenzung
Automatische Schaltraumheizung
