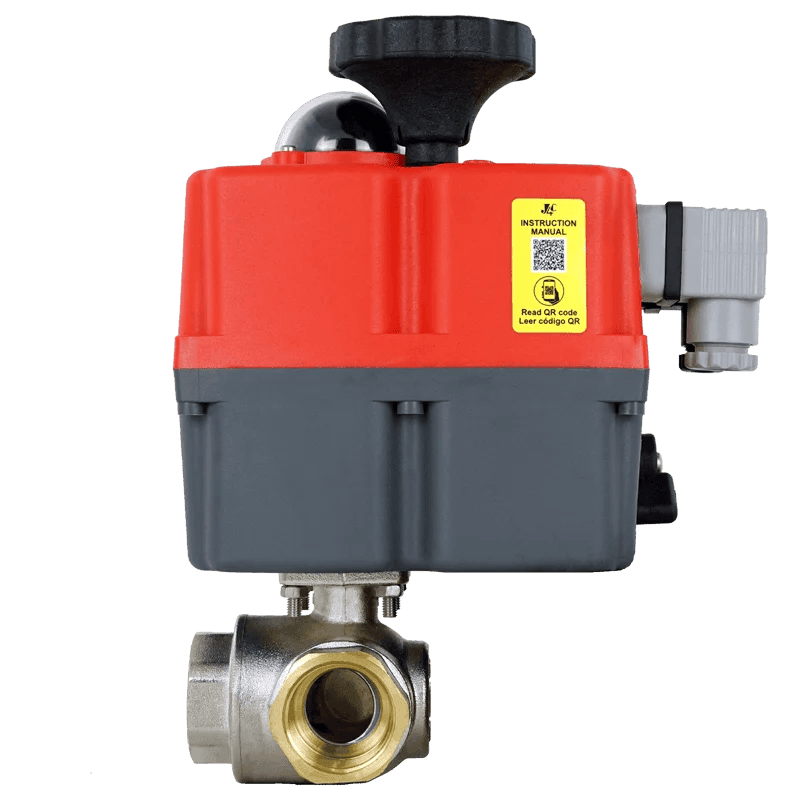

Automated 2-way and 3-way electric ball valves with flanged, female threaded or welded ends enable precise control of liquid or gas flows. They are made from robust materials such as stainless steel (corrosion-resistant), steel (high strength), brass (versatile) or ductile iron (extremely resilient). They are powered by reliable J4C actuators with torques ranging from 20 Nm to 300 Nm, which are ideal for demanding industrial environments. The actuators are available in four variants: battery-powered (mobile and easy to install), DPS (dual power supply for redundant power supply), a combination of battery + DPS (maximum flexibility) and standard (cost-effective for basic requirements).
...Automated 2-way and 3-way electric ball valves with flanged, female threaded or welded ends enable precise control of liquid or gas flows. They are made from robust materials such as stainless steel (corrosion-resistant), steel (high strength), brass (versatile) or ductile iron (extremely resilient). They are powered by reliable J4C actuators with torques ranging from 20 Nm to 300 Nm, which are ideal for demanding industrial environments. The actuators are available in four variants: battery-powered (mobile and easy to install), DPS (dual power supply for redundant power supply), a combination of battery + DPS (maximum flexibility) and standard (cost-effective for basic requirements).
Ball valve with electric actuator: multi-voltage
Fergo electric ball valves offer high-quality 2-/3-way valves with various voltage options (24V, 230V, 400V) for precise and reliable flow control in industrial and utility plants. The valves are equipped with individually customisable electric actuators – available in the following versions: Standard (cost-effective basic version), positioner (automatic position monitoring and correction), battery pack (uninterrupted operation in the event of a power failure) and a combination of positioner and battery pack (maximum operational reliability through redundant control). The areas of application include energy generation, chemical processing, water treatment and building automation. The actuators are characterised by their compact design, easy integration into existing control systems and low maintenance requirements. Thanks to their modular design and wide voltage range, Fergo ball valves can be flexibly adapted to different environmental conditions and customer specifications – ideal for projects with high requirements for precision, reliability and long-term cost-effectiveness.
Electric Ball Valves: Reliable and Efficient Solutions for Demanding Industrial Applications
Electric ball valves are high-quality valves designed for extreme operating conditions such as aggressive media, high temperatures (-50°C to +200°C), and pressures (PN16 to PN100). With IP ratings (e.g., IP67/IP68), they provide protection against dust, moisture, and submersion. Their flexible mounting in horizontal or vertical positions, along with compatibility with various pipeline materials (steel, plastic, copper), facilitates integration. Energy-efficient actuators lower power consumption, while international certifications (CE, TA-Luft, WRAS, DVGW Gas & Potable Water) confirm their suitability for sensitive areas such as potable water treatment, gas supply, and the food & beverage industry.
Why Choose Actuated Ball Valves from Fergo?
Fergo's electrically actuated 24V-230V ball valves combine precision engineering with robust materials like stainless steel (1.4408) and PTFE seals, ensuring a long service life in demanding environments. These valves are designed for industrial automation, HVAC, and water systems, support voltages from 24 V DC to 240 V AC/DC, and feature ISO 5211-compliant actuators for seamless integration.
Key Features and Technical Specifications
Versatile Sizes and Materials
- Nominal Diameters (DN): DN15 (½") to DN100 (4") with options for flanged, threaded (ISO 228/ISO 7-1), or welded connections.
- Materials: Stainless steel (1.4408) for corrosion resistance, PTFE/TFM1600 seals for chemical resistance, and actuator housing made of polyamide (PA6).
Powerful Actuators
- Multi-Voltage Compatibility (J4C): Operates on 24V-240V AC/DC with a 90° rotation time of 9-13 seconds and electronic torque limitation.
- Safety and Compliance: TA-Luft, DVGW Potable Water, DVGW Gas, ATEX, and SIL3 certifications ensure reliability in hazardous or potable water applications.
Robust Construction
- Pressure and Temperature: Withstands up to 63 bar and temperatures from -29°C to +180°C, suitable for extreme conditions.
- Full Bore Design: Minimises pressure drop, ideal for high-flow systems.
- Mechanical Strength: Durable construction for harsh industrial environments.
- Integrated Protection: Actuator protected against overload and jamming.
Applications
Fergo's electric ball valves are perfectly suited for:
- Water Treatment: DVGW-certified models for potable water systems.
- Gas Systems: DVGW-certified models for biogas and industrial gas installations.
- Industrial Automation: Petrochemical, pharmaceutical, and food processing with ATEX compliance.
- HVAC & Energy: Precise flow control in heating, cooling, and solar thermal systems.
Customisation & Additional Features
- Digital Positioners: Integrate 0-10V or 4-20mA signals for automatic control.
- Battery Backup: NC/NO safety packages for fail-safe operation during power outages.
- Fire-Safe Options: API 607/ISO 10497 certifications for fire-hazardous environments.
Why Trust Fergo?
- Over 20,000 Satisfied B2B Customers: Proven reliability and fast worldwide shipping.
- Expert Support: Technical consultations for customised solutions.
- Focus on Sustainability: Eco-friendly materials and energy-efficient designs.
