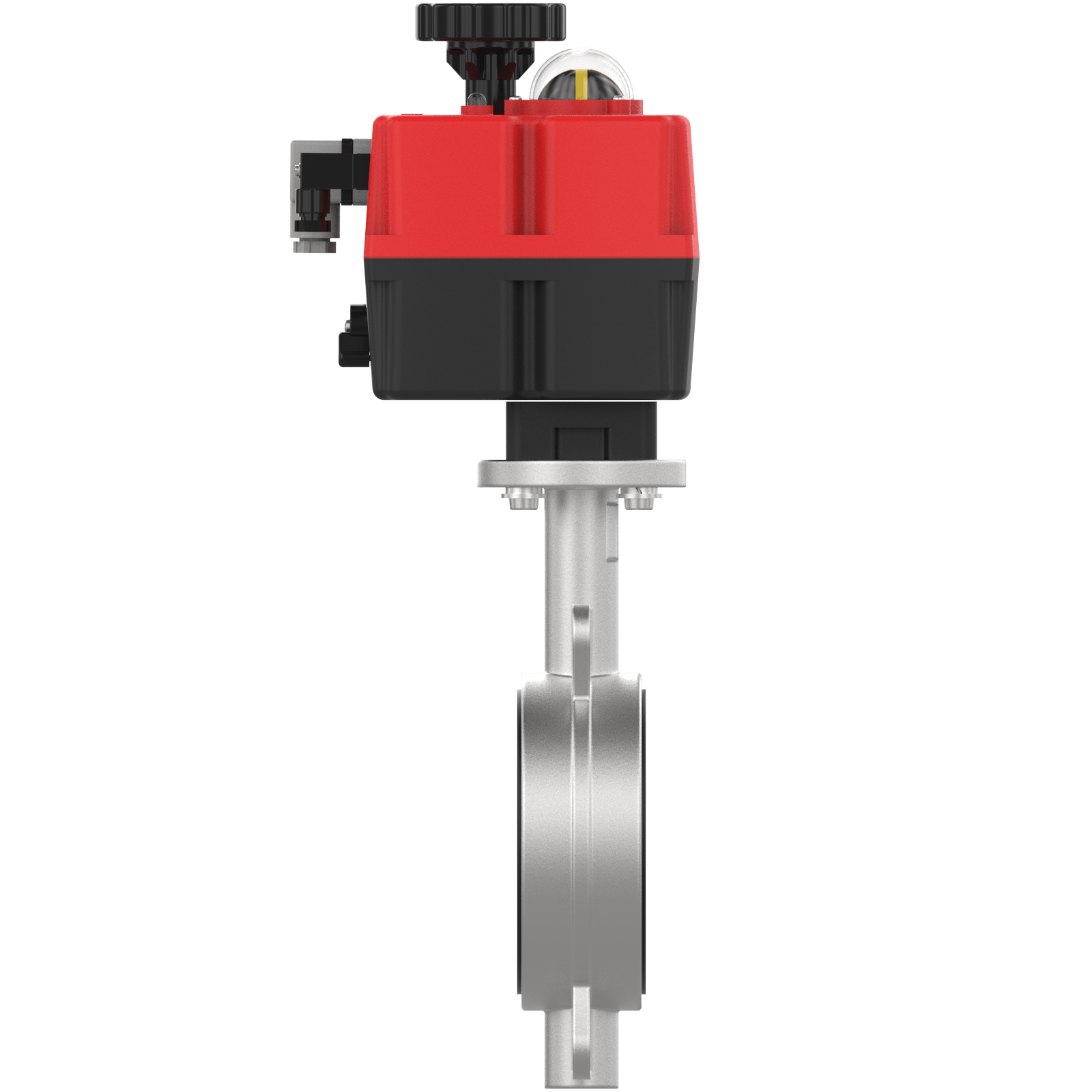

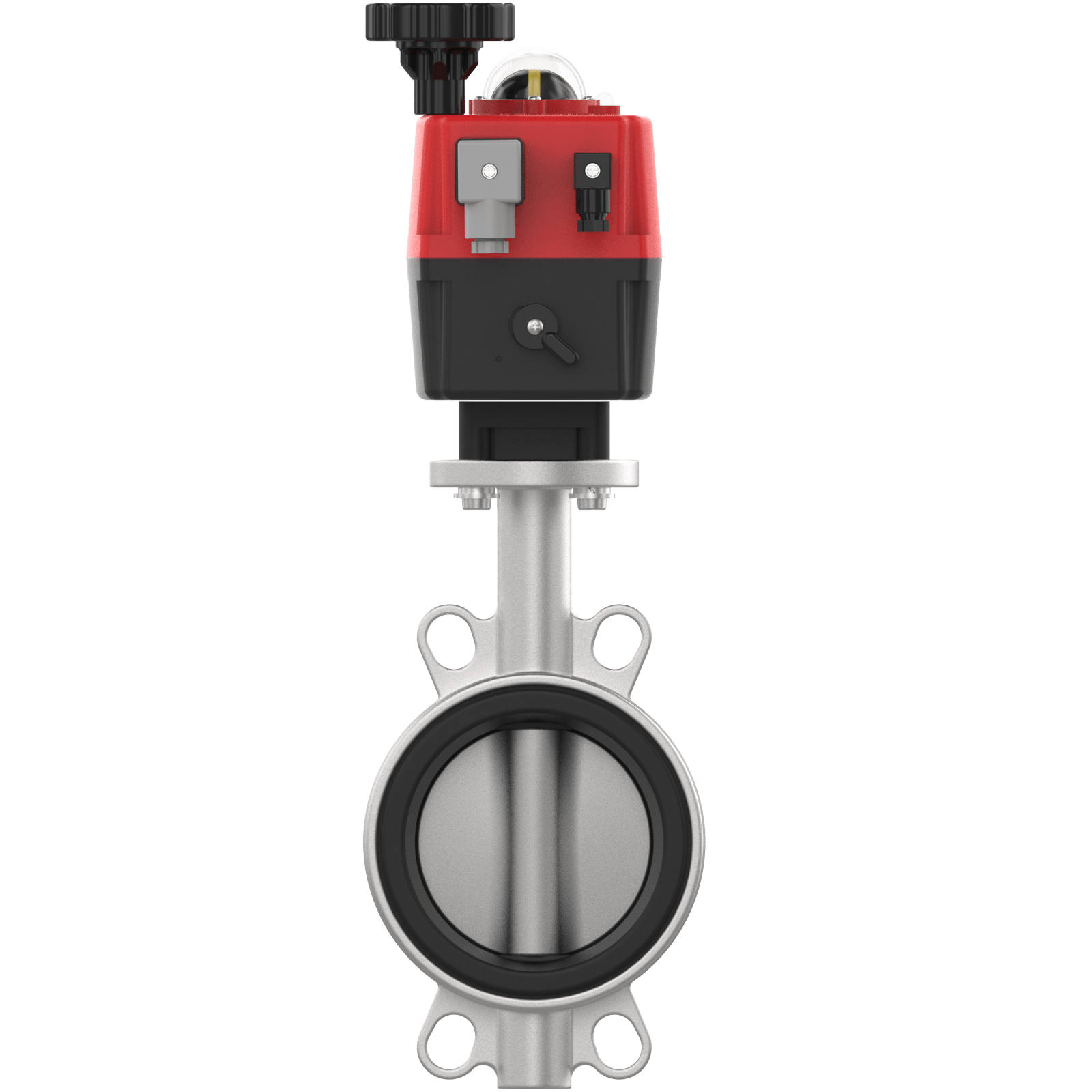

AK202 Stainless steel butterfly valve DN 100 PN10/16/150lbs electric 24V - 230V AC/DC
Product number 150-1571-12-EL
Price €666.94
€793.65 incl. VAT
Delivery Time: 2-7 Days
Available: In Stock
Contact
Support and advice at:
Mon-Fri, 8:00 a.m. - 5:00 p.m
Mon-Fri, 8:00 a.m. - 5:00 p.m
Payment Methods
Shipping Methods
Description
Stainless steel butterfly valve type AK202 operated by an electric actuator 24V - 230V - 240V AC/DC. The valve is suitable for installation between flanges according to DIN PN10/16 and ANSI/ASME Class 150. Wafer-type body and centric/concentric design. The body and disc are made of stainless steel (CF8M/1.4408), and the shaft is made of stainless steel (AISI 420). The seat ring is made of EPDM. Ideal for installation in corrosive environments with liquid and gaseous media. Actuated by a multi-voltage electric actuator with a running time (90°): 29s ± 10%. The actuator can be upgraded to a digital positioner (0-10V or 4-20mA) or a battery safety pack (NC/NO) upon request.
Nominal width : DN100 - 4'' inch
Running time (90°): 29s ± 10%
Connection : Flange PN10 , Flange PN16 , Flange ANSI Class150
Design : Wafer
Body: Stainless Steel
Face to Face length : EN 558-series 20
Sleeve material : EPDM
Disc : Stainless steel
Temperature range : -10°C to +120°C
Actuation : Electric Actuator
Max. Operating pressure : 16 bar
Option: 24V, 230V, 240V
Availability: In Stock
Tender
Butterfly Valve type AK202-SSELW-DN100 with EL actuator
• WAFER type for mounting between flanges PN10/16/150lbs
• Top flange ISO 5211 • Concentric design
• Body: CF8M (1.4408)
• Disc: CF8M (1.4408)
• Shaft: AISI 420
• Nominal pressure (max.): 16bar
• Seat: EPDM (hard seat with sealing lips)
• Temp. (min./max.): -10°C to +120°C
Operation:
• Electric part-turn actuator Type: FG-J4C-S85
• Multivoltage system: 24 - 240V AC/DC, 50/60Hz
• Runtime (90°): 29s ± 10%
• Housing: polyamide (PA6)
• Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
• Manual override
• Electronic torque limiter
• Automatic interior heater
Data sheet
Data sheet
3D-Model
Download 3D-Model
