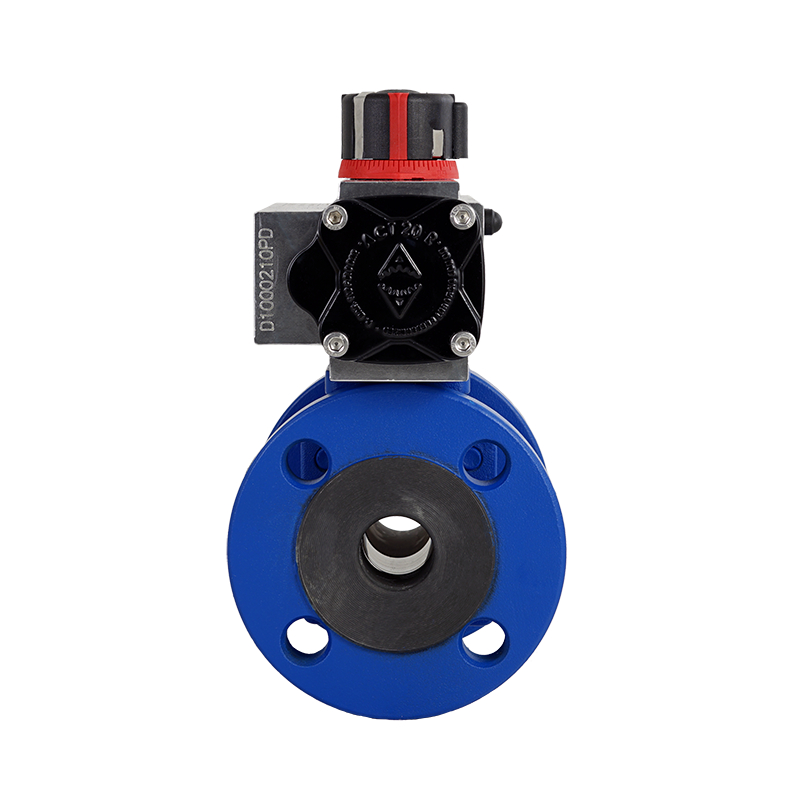

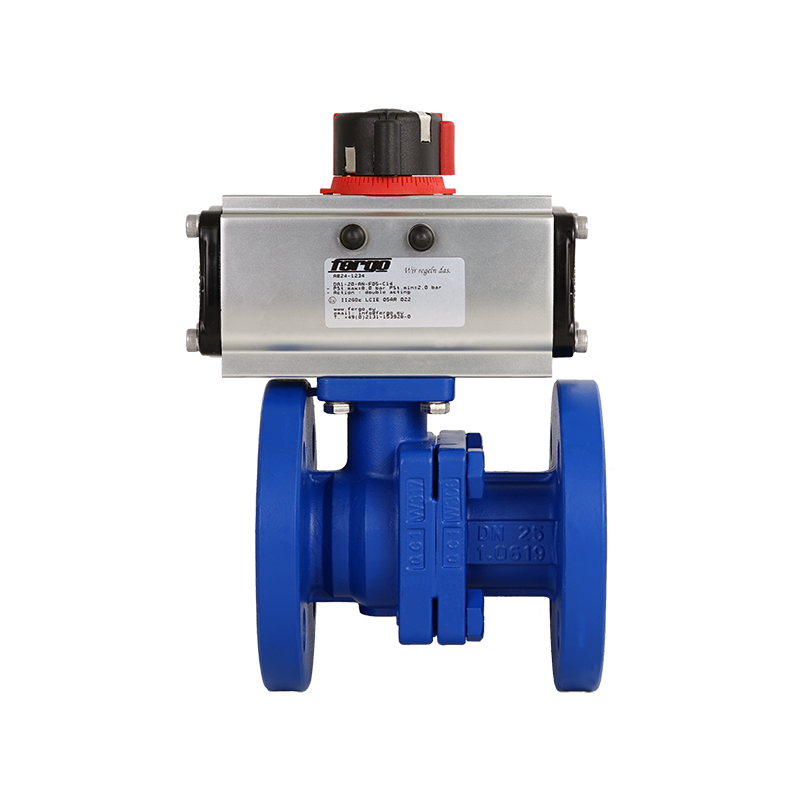

2-way flanged ball valve made of carbon steel with DVGW approval for gas/fuel gases according to G260/1, operated with a double-acting pneumatic actuator. Fire-safe design, TA-Luft, antistatic design & silicone-free. The ball valve has a flange connection according to PN10/16 & face-to-face according to EN 558-1, R27. The valve body is made of cast steel (material no.: 1.0619) and the ball is made of stainless steel (material no.: 1.4408). Full bore with PTFE seal (sealing system A). Actuated by a double-acting pneumatic actuator. Note: The pneumatic actuator is sized for a control pressure of 6 bar.
Nominal width :DN50 - 2'' inch
Connection :Flange PN10 , Flange PN16
Design :2 ways
Body:Steel
Material ball :Stainless steel (1.4408)
Ball seal:PTFE
Face to Face length :EN 558-1-Reihe 27
Temperature range :Depending on the operating pressure / gas -20° to +60
Actuation :Pneumatic Actuator
Max. Operating pressure :16 bar
Certificate :DVGW Gas DIN EN 13774, TA Luft
Option:Double Acting , Full passage
Availability:In Stock
Tender
Ball valve KH122G, PN16-DN50 with DA actuator • Flanged ends acc. to PN16 • Face to face acc. to EN 558-1, R27 • Full port • 2- piece body • Sealing system A • Body: carbon steel (1.0619) • Ball: stainless steel (1.4408) • Ball seat: PTFE • Stem seal: FKM/PTFE • Body seal: FKM /TFM • Temperature range: depending on working pressure / Gases -20° to +60° • Direct mounting actuator ISO 5211 • Max. working pressure: 16 bar • DVGW PN16 for gases acc. to G260/1 • Approval acc. to DIN EN 13774 Operation: Pneumatic actuator DA1-80-AN-F05/F07-C17 • Design: double acting, 90° quater turn • Body: aluminium, hard anodized • Temp. (min./max.): -30°C to +100°C • Max. pressure: 8 bar IMPORTANT! Actuator sizing calculation for 6 bar air supply!
Limit switch box EB300-PP2M02 with mechnical micro switchesFlexible box made of polyamide with polycarbonate cover, Mounting bracket and shaft made of polyamide, Voltage: 12-250 V AC/DC, Operating current: 0,1-10A with protection IP67
5/2 way Namur solenoid valve with air springPneumatic solenoid valve 5/2 way G 1/4" with Al anodised frame, inner parts of brass and synthetic material with NBR sealing, Operating pressure of 1.5 to 10 bar with protection class IP65 including solenoid coil and plug
