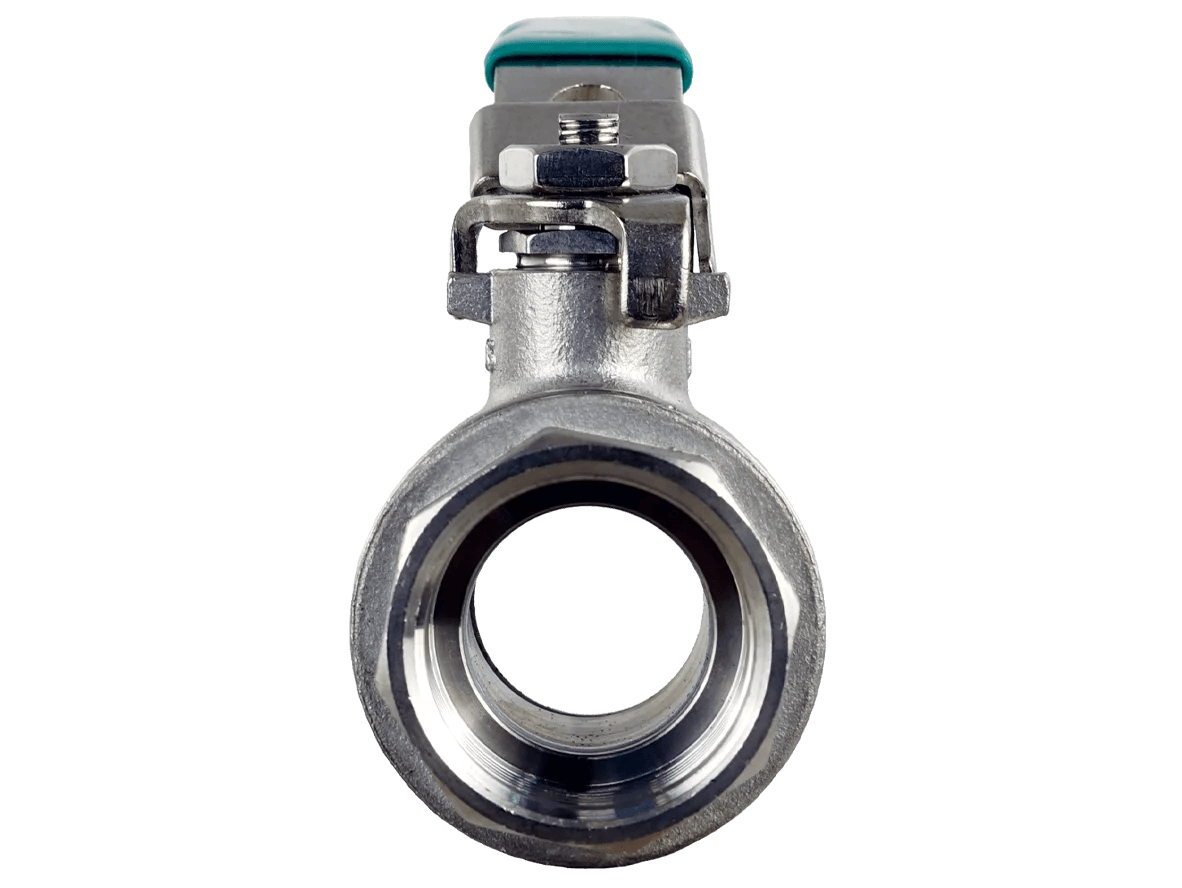

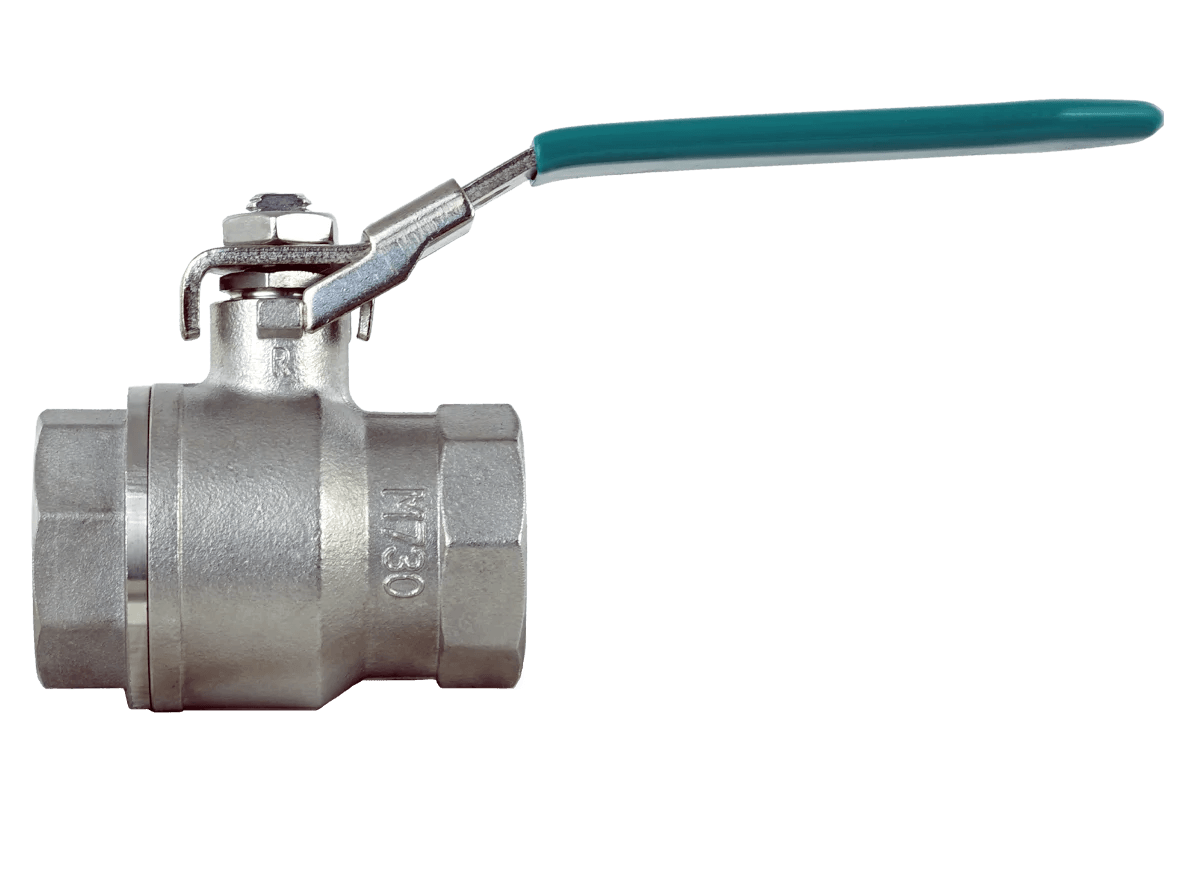

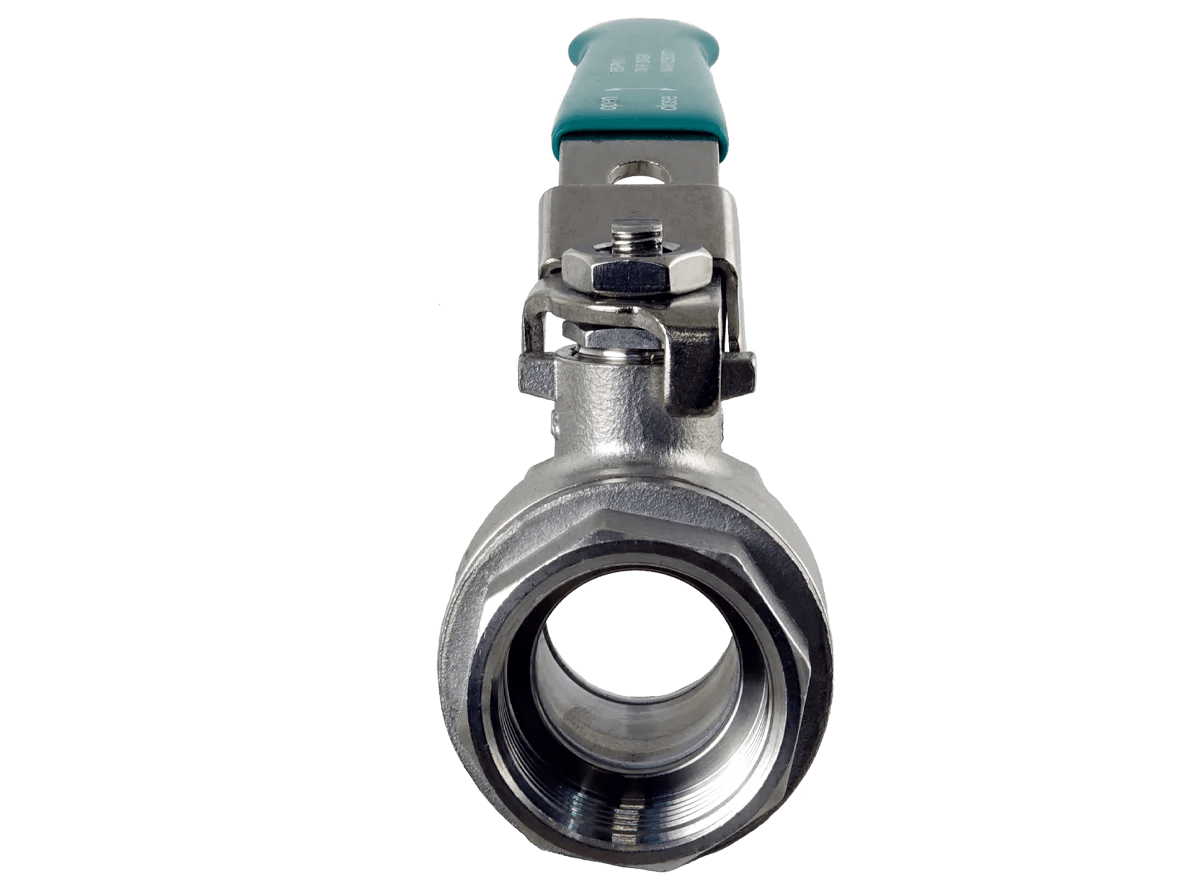

Drinking water ball valve 1/4 inch acc. to ISO 228/1 F/F internal thread, body made of stainless steel (1.4408)(CF8M), ball made of stainless steel (1.4408)(CF8M), seal ball made of PTFE, medium temp -20°C to +180°C, max. operating pressure 40 bar Operating pressure 40 bar
Ball valve 1/4 inch female thread acc. to ISO 7/1 Rp (F-F), Ball brass chrome plated, Seal ballPTFE, O-ring Viton/NBR, Housing brass nickel plated for liquid and gaseous media, DVGW Gas Max. Operating pressure 50 bar
Ball valve 1/4 inch female male thread, male thread ISO 7/1 R - female thread ISO 7/1 Rp (M-F), Ball brass chrome plated, Seal ballPTFE, O-ring Viton/NBR, Housing brass nickel plated for liquid and gaseous media, DVGW Gas Max. Operating pressure 50 bar
Internal thread ball valve 1/4 inch ISO 228 F-F, Ball brass hard chrome plated, Seal ball PTFE, Seal shaft Viton (FPM/FKM), Body brass, nickel plated for liquid and gaseous media (not for steam!), Max. pressure 50 bar
3-piece Stainless steel ball valve 1/4 inch DN8 - female thread connection acc. to ISO 228-1 F-F, body & ball made of stainless steel CF8M (1.4408), gasket TFM 1600, full bore, 3-piece, approval TA-Luft, ATEX, AD2000-A4 with hand lever
