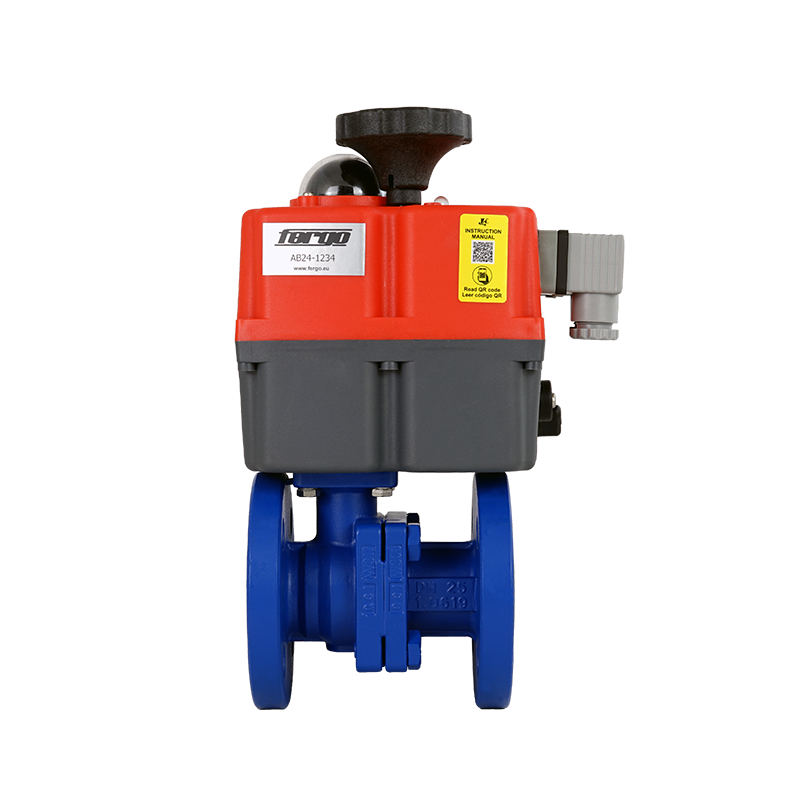

2-way flanged ball valve made of carbon steel with DVGW approval for gas/fuel gases according to G260/1, operated with an electric actuator. Fire-safe design, TA-Luft, antistatic design & silicone-free. The ball valve has a flange connection according to PN10/16 & face-to-face according to EN 558-1, R27. The valve body and the ball are made of carbon steel (material no.: 1.0619). Full bore with PTFE seal (sealing system A). Actuated by a multi-voltage electric actuator (24V - 230V - 240V AC/DC) with a run time (90°): 29s ± 10%. The actuator can be upgraded to a digital positioner (0-10V or 4-20mA) or a battery fail-safe pack (NC/NO) upon request.
Nominal width :DN65 - 2 1/2'' inch
Connection :Flange PN10 , Flange PN16
Design :2 ways
Body:Steel
Material ball :Stainless steel (1.4408)
Ball seal:PTFE
Face to Face length :EN 558-1-Reihe 27
Temperature range :Depending on the operating pressure / gas -20° to +60
Actuation : Electric Actuator
Max. Operating pressure :16 bar
Certificate :DVGW Gas DIN EN 13774, TA Luft
Option:24V, 230V, 240V, Full passage
Availability:In Stock
Tender

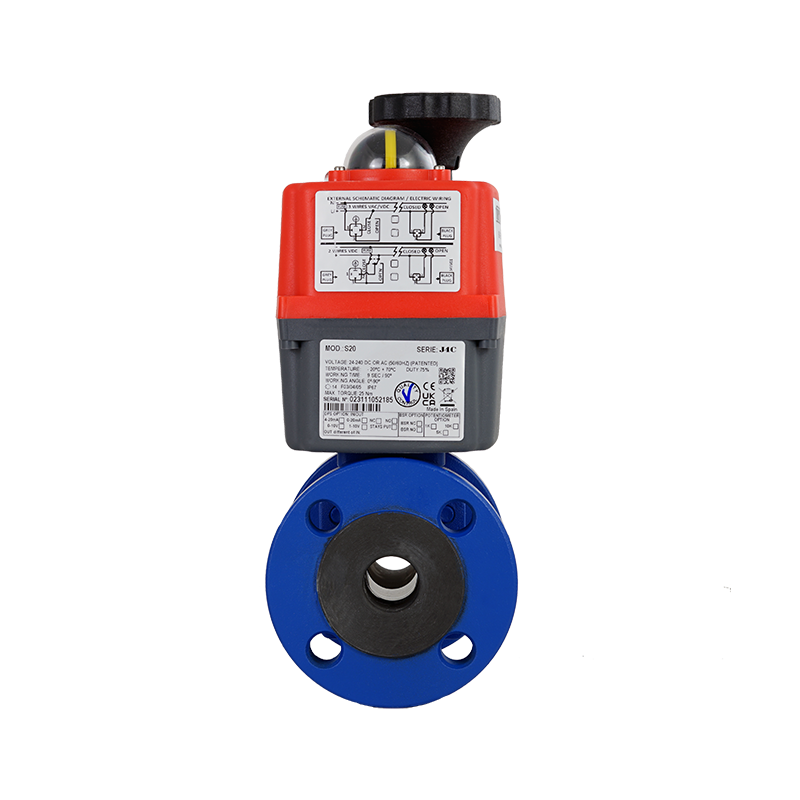

Ball valve KH122G, PN16-DN65 with EL actuator • Flanged ends acc. to PN16 • Face to face acc. to EN 558-1, R27 • Full port • 2- piece body • Sealing system A • Body: carbon steel (1.0619) • Ball: stainless steel (1.4408) • Ball seat: PTFE • Stem seal: FKM/PTFE • Body seal: FKM /TFM • Temperature range: depending on working pressure / Gases -20° to +60° • Direct mounting actuator ISO 5211 • Max. working pressure: 16 bar • DVGW PN16 for gases acc. to G260/1 • Approval acc. to DIN EN 13774 Operation: Electric part-turn actuator Type: FG-J4C-S85 • Multivoltage system: 24 - 240V AC/DC, 50/60Hz • Runtime (90°): 29s ± 10% • Ambient temperature: -20°C to +70°C • Housing: polyamide (PA6) • Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC • Manual override • Electronic torque limiter • Automatic interior heater
