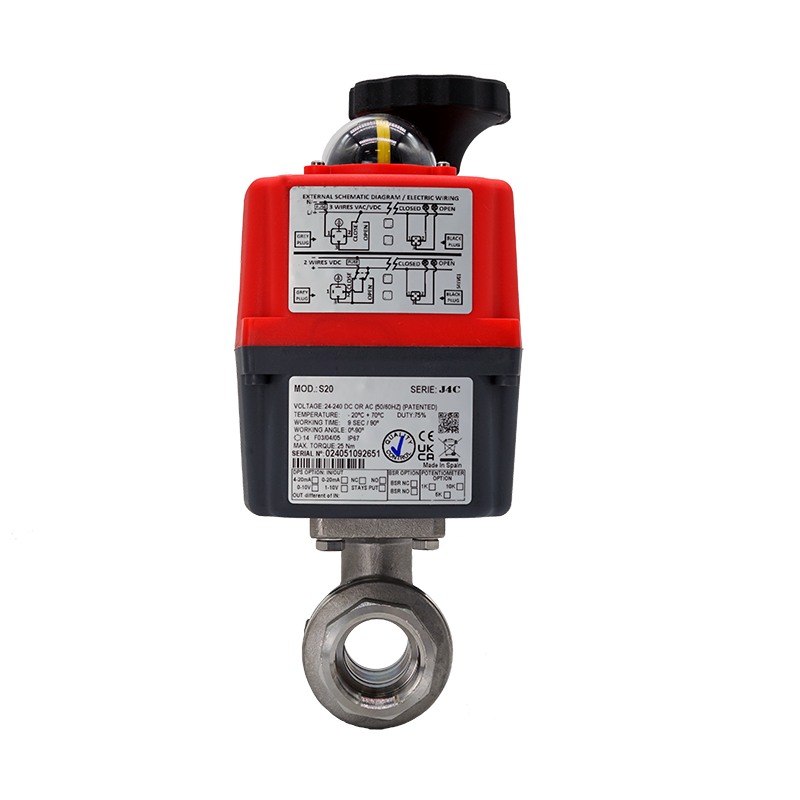

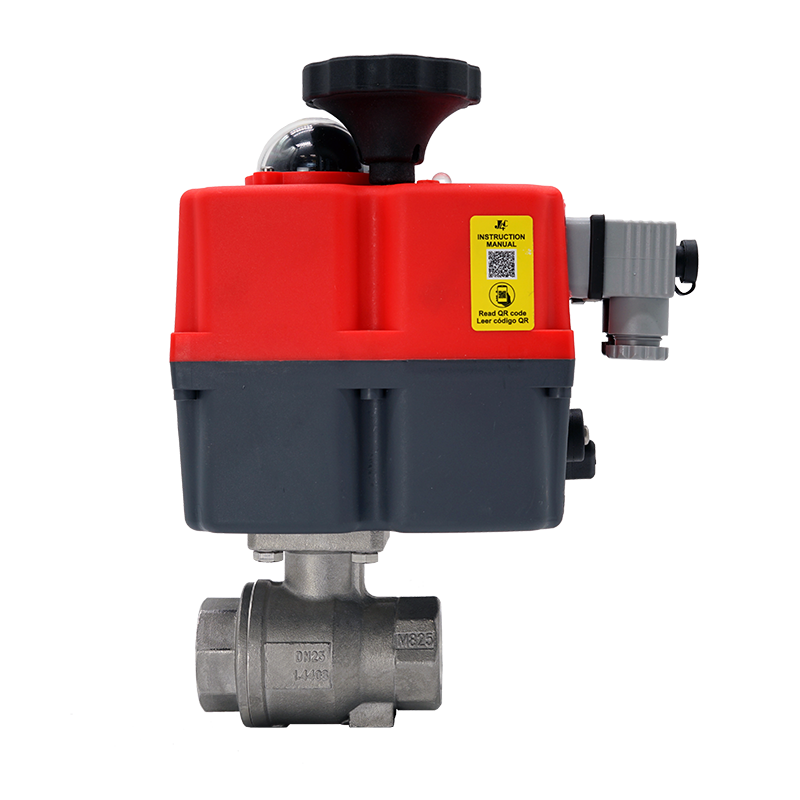

2-way stainless steel ball valve with DVGW gas approval PN16 according to DIN EN 13774, DVGW approval according to gas equipment directive GAR EU-2016-426. Ideal for gas pipelines. The valve has a female thread connection in accordance with DIN EN 10226-1 (ISO 7/1). The valve body and ball are made of stainless steel (1.4408) and the shaft is made of stainless steel (1.4401). Full bore with PTFE seal. TA-Luft approval, fire safe design, silicone-free, Ex zone: Group 2, Category 1 ATEX 2014-34-EU. Actuated by an multi-voltage electric actuator 24V - 230V - 240V, with a run time (90°): 9s ± 10%. The actuator can be upgraded to a digital positioner (0-10V or 4-20mA) or a battery safety pack (NC/NO) upon request.
Nominal width :DN40 - 1 1/2'' inch
Connection :Female thread
Design :2 ways
Body:Stainless Steel
Material ball :Stainless steel (1.4408)
Ball seal:PTFE
Temperature range :Depending on the operating pressure / gas -20° to +60
Actuation : Electric Actuator
Max. Operating pressure :16 bar
Certificate :DVGW Gas DIN EN 13774, TA Luft
Option:24V, 230V, 240V, Full passage
Availability:In Stock
Tender
Ball valve KH124G, 1 1/2" with EL actuator • Design: 2-way • Full bore • 2-piece body • Threaded ends acc. to DIN EN 10226-1 (ISO 7/1), Rp • Body / Ball: 1.4408 • Stem: 1.4401 • Ball seat: PTFE • Shaft seal: PTFE spring-loaded • Temperature range: -20°C...+60°C (depending on working pressure) • Max. working pressure: 16 bar • Direct mounting acc. to DIN ISO 5211 • DVGW gas approval PN16 acc. to DIN EN 13774 • DVGW-approval acc. to gas appliance regulation GAR EU-2016-426 • Ex-area acc. group 2, category1, ATEX 2014-34-EU Operation: Electric part-turn actuator Type: FG-J4C-S35 • Multivoltage system: 24 - 240V AC/DC, 50/60Hz • Runtime (90°): 9s ± 10% • Ambient temperature: -20°C to +70°C • Housing: polyamide (PA6) • Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC • Manual override • Electronic torque limiter • Automatic interior heater
