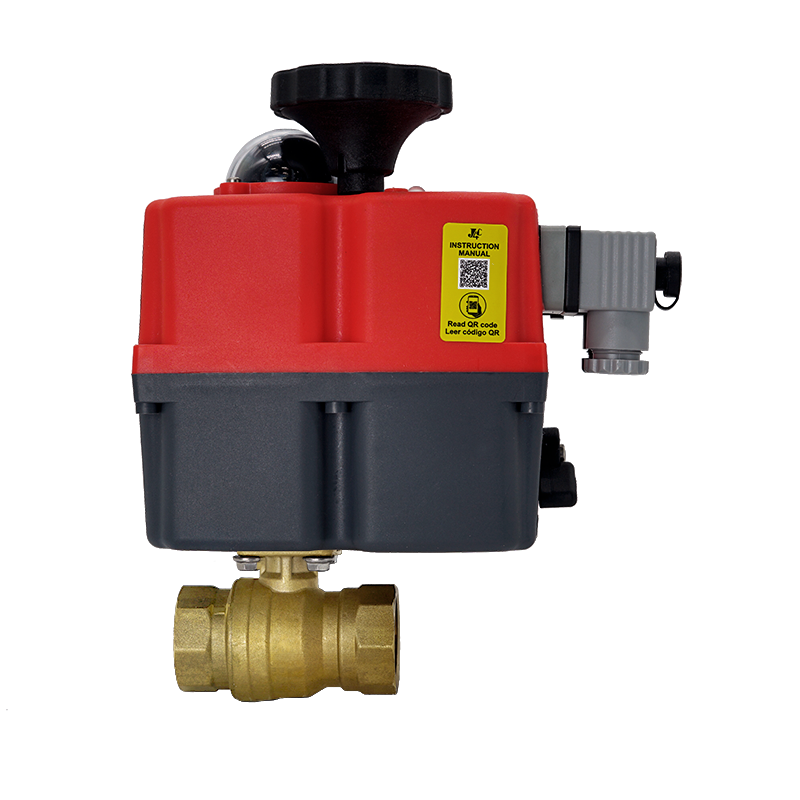

2-way brass ball valve with DVGW approval for drinking water in accordance with DIN EN 13828, operated by an electric actuator. Ideal for use in water/drinking water pipelines. The ball valve has a female thread connection in accordance with DIN EN 10226-1. The valve body is made of lead-free brass (CW724R), whereas the ball is made of stainless steel (1.4408). Full bore with PTFE seal. LABS conform according to VDMA 24364 & silicone-free. Actuated by an electric actuator with multi-voltage capability (24V - 230V - 240V AC/DC). The actuator has a run time (90°): 9s ± 10%. Upon request, the actuator can be upgraded to a digital positioner (0-10V or 4-20mA) or a battery safety pack/Fail-safe (NC/NO).
Nominal width :DN20 - 3/4'' inch
Connection :Female thread
Design :2 ways
Body:Brass
Material ball :Stainless steel (1.4408)
Ball seal:PTFE
Temperature range :-20°C to +180°C
Actuation : Electric Actuator
Max. Operating pressure :40 bar
Certificate :DVGW Drinking water
Option:24V, 230V, 240V, Full passage
Availability:In Stock
Tender

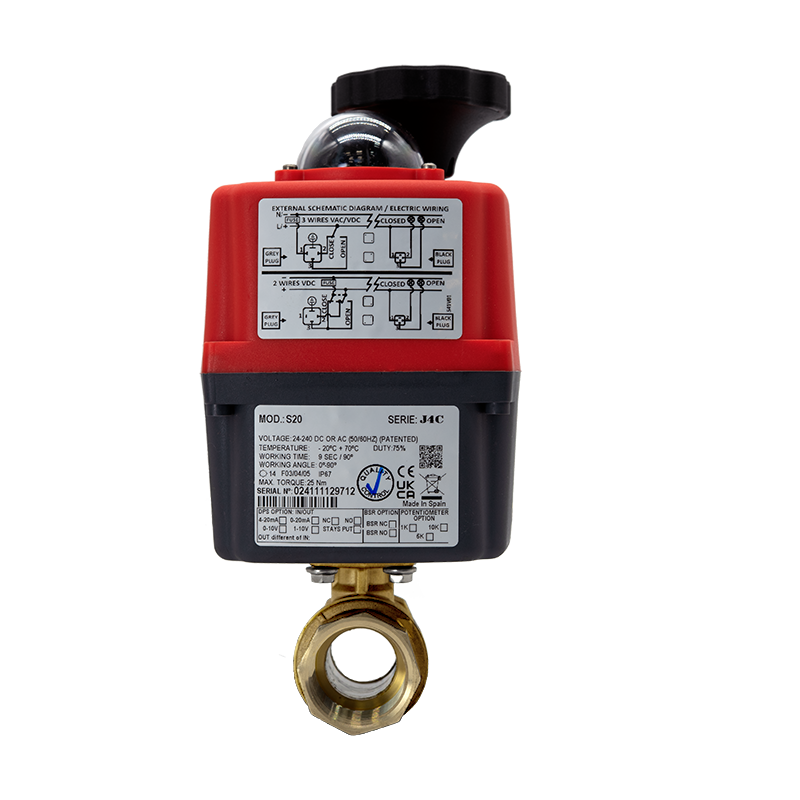

Ball valve KH142W, 3/4" with EL actuator • Design: 2-way • Full bore • Connection: threaded EN 10226-1, F-F • Body: brass CW724R (lead-free) • Ball: stainless steel 1.4408 • Ball seat: PTFE • Temperature range: -20°C to + 180°C (depending on working pressure) • Max. pressure: 40 bar • Direct mounting of actuators acc. to ISO 5211 • Operation: mounting flange ISO F03, square 9mm • DVGW drinking water approval PN10 acc. to DIN EN 13828 Operation: Electric part-turn actuator Type: FG-J4C-S20 • Multivoltage system: 24 - 240V AC/DC, 50/60Hz • Runtime (90°): 9s ± 10% • Ambient temperature: -20°C to +70°C • Housing: polyamide (PA6) • Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC • Manual override • Electronic torque limiter • Automatic interior heater
Electric ball valve 3/4 inch drinking water2-way stainless steel ball valve with DVGW approval for drinking water according to DIN EN 13828 W570-1, operated by an electric actuator 24V - 230V - 240V. Ideal for use in water/drinking water pipelines. The ball valve has a threaded connection (female threads) according to DIN EN 10226-1 (ISO 7/1). The valve body and ball are made of stainless steel (1.4408) and the shaft is made of stainless steel (1.4401). Full bore with PTFE seat. Actuated by an electric multi-voltage actuator with a run time (90°): 9s ± 10%. The actuator can be upgraded to a digital positioner (0-10V or 4-20mA) or a battery fail-safe pack (NC/NO) upon request.
electric quarter turn ball valve 1/2 inch PN 63 female thread acc. to ISO 7-1(EN 10226-1) F-F, body / ball / shaft stainless steel (SS316)(CF8M), sealing ball PTFE + 15% glass fibre, with electric actuator(J4C S20), running time(90°) 9s ± 10%, multi voltage system 24V - 230V - 240V AC/DC
