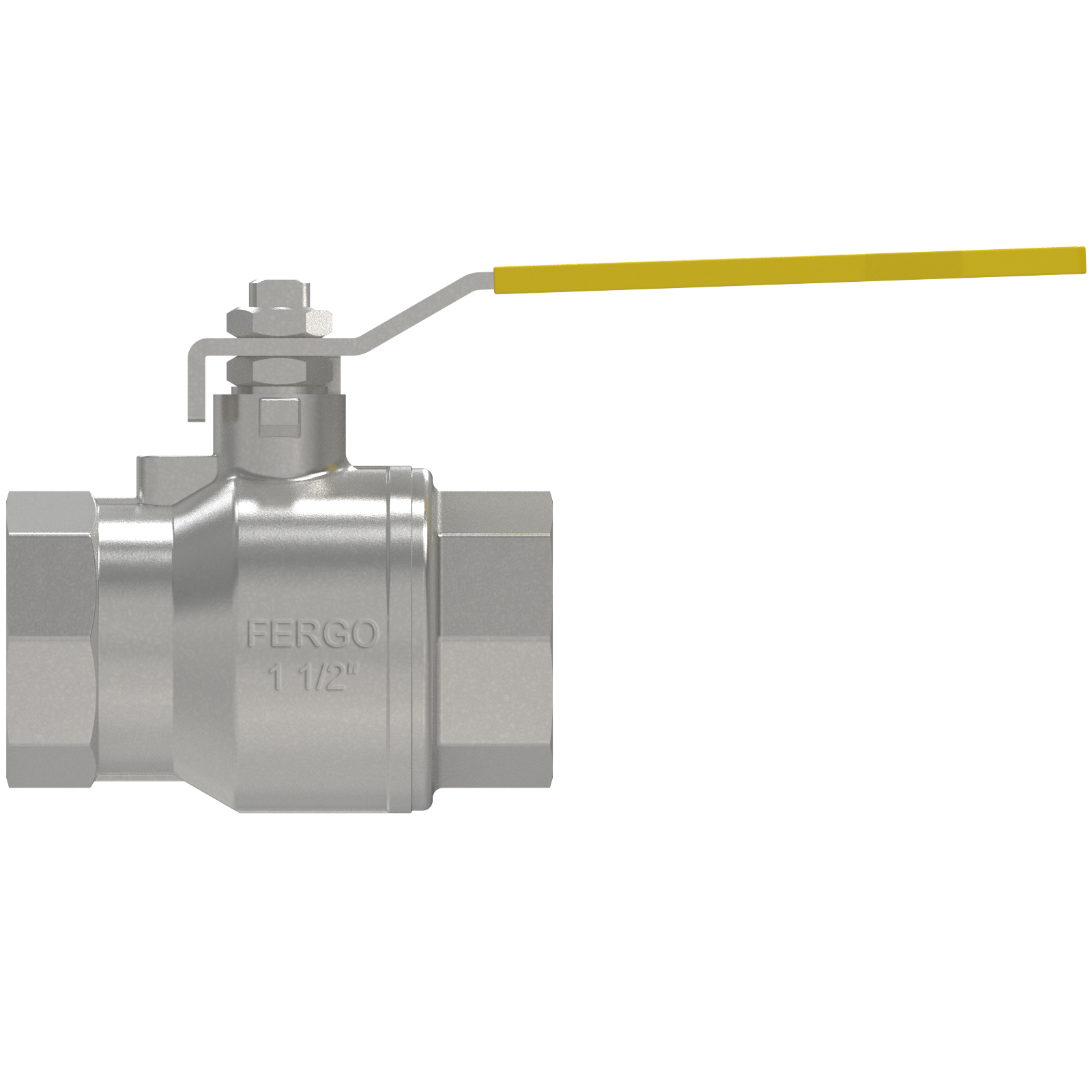

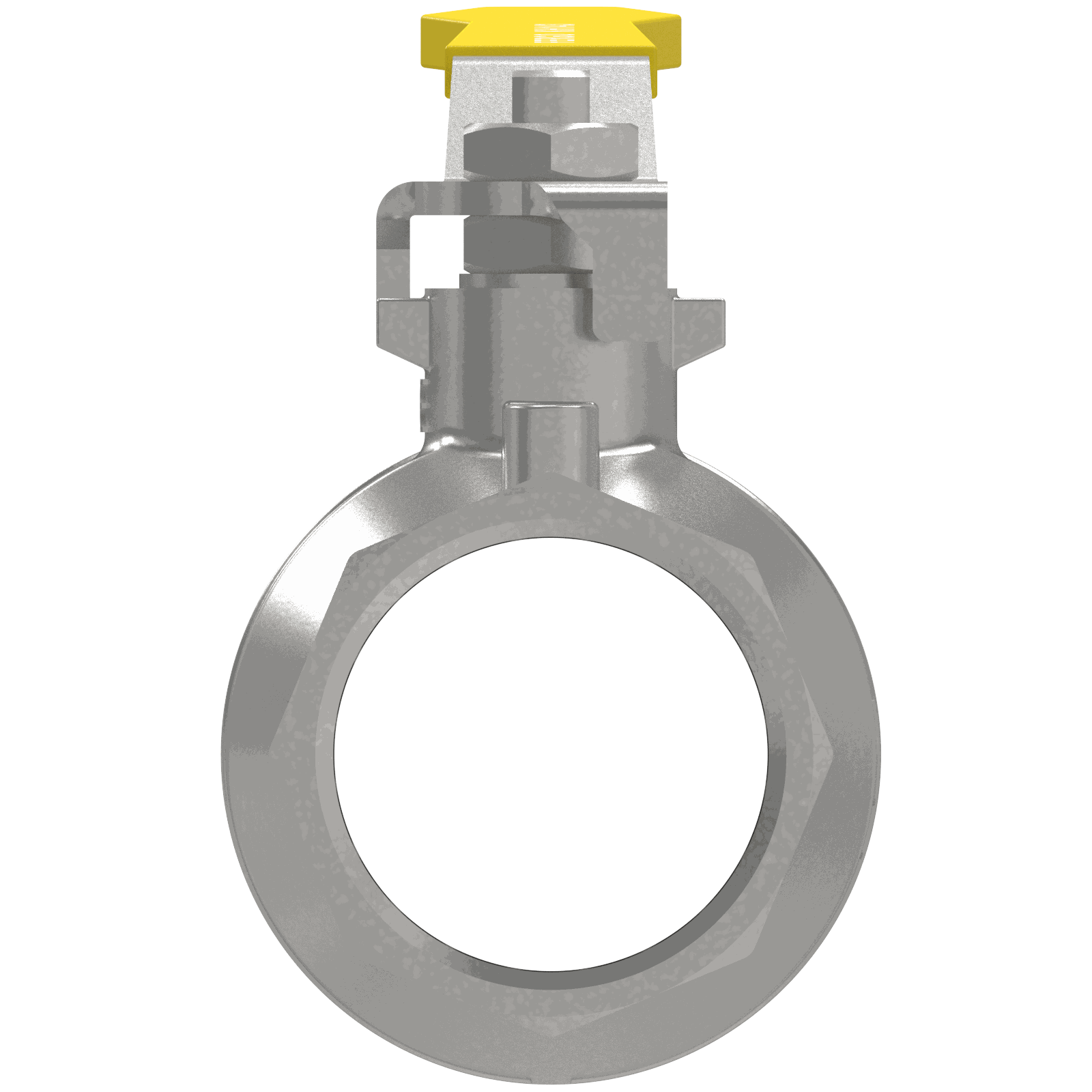

2-way ball valve for gas/biogas with DVGW gas approval PN16 according to DIN EN 13774. Full bore, 2-piece design, with female threads according to DIN EN 10226-1 (ISO 7/1). Body and ball made of stainless steel (1.4408). PTFE seal, adjustable packing gland. Temperature range: -20 °C to +180 °C (depending on operating pressure). Ideal for use in gas/biogas pipelines. Actuated with a hand lever.
Nominal width :DN40 - 1 1/2'' inch
Connection :Female thread
Design :2 ways
Body:Stainless Steel
Material ball :Stainless steel (1.4408)
Ball seal:PTFE
Temperature range :-20°C to +180°C , Für DVGW Gas Zulassung -20°C bis +60°C
Actuation :Hand Lever
Certificate :DVGW Gas DIN EN 13774
Option:Full passage
Availability:In Stock
Tender
Ball valve KH143, 1 1/2" • Design: 2-way • Full bore • Connection: threaded EN 10226-1, F-F • Body: stainless steel 1.4408 • Ball: stainless steel 1.4408 • Ball seat: PTFE • Adjustable stem packing (has to be retightened within certain periods) • Temperature range: -20°C to + 180°C (depending on working pressure) • Max. pressure: 25 bar • Operation: lever handle • DVGW gas approval PN16 acc. to DIN EN 13774
