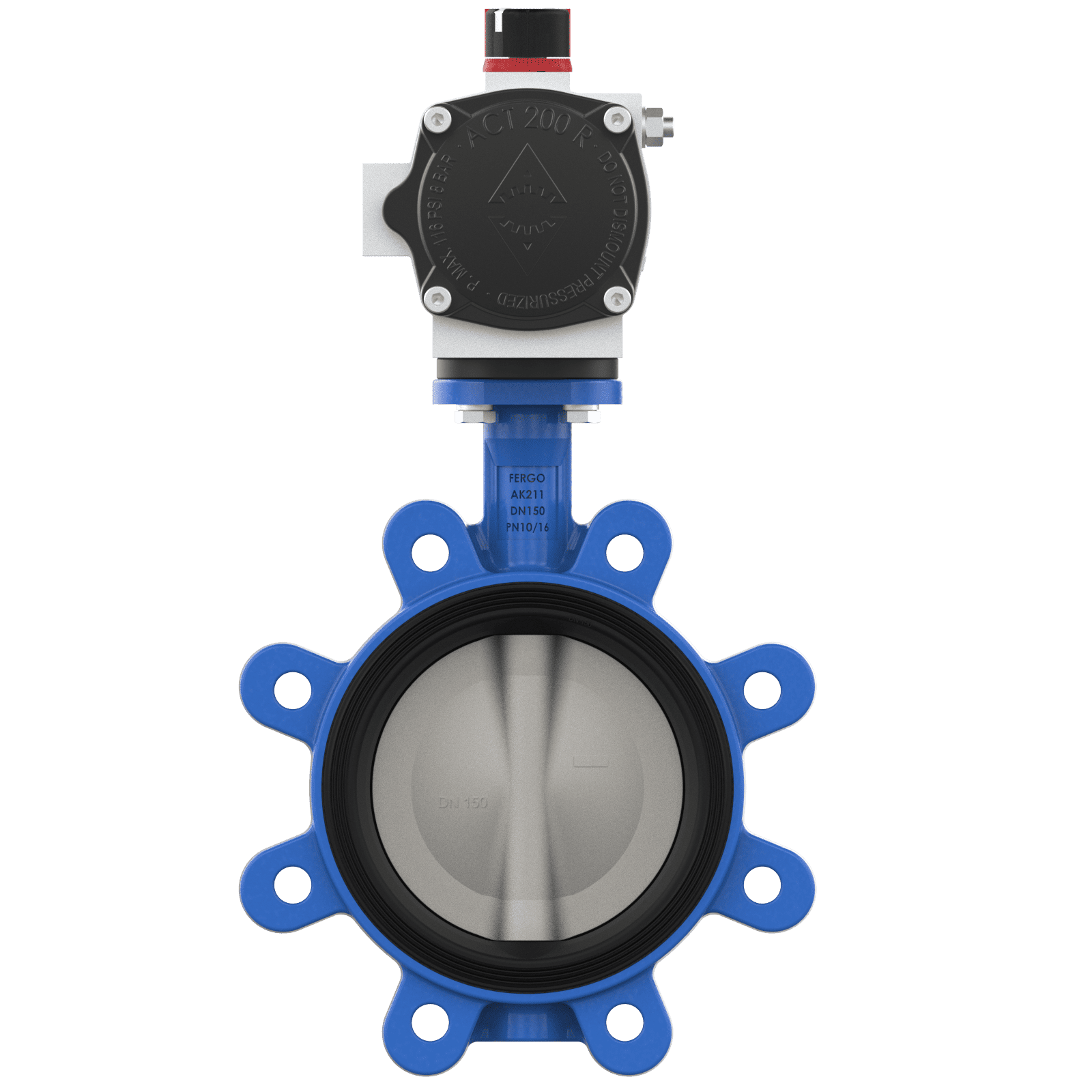

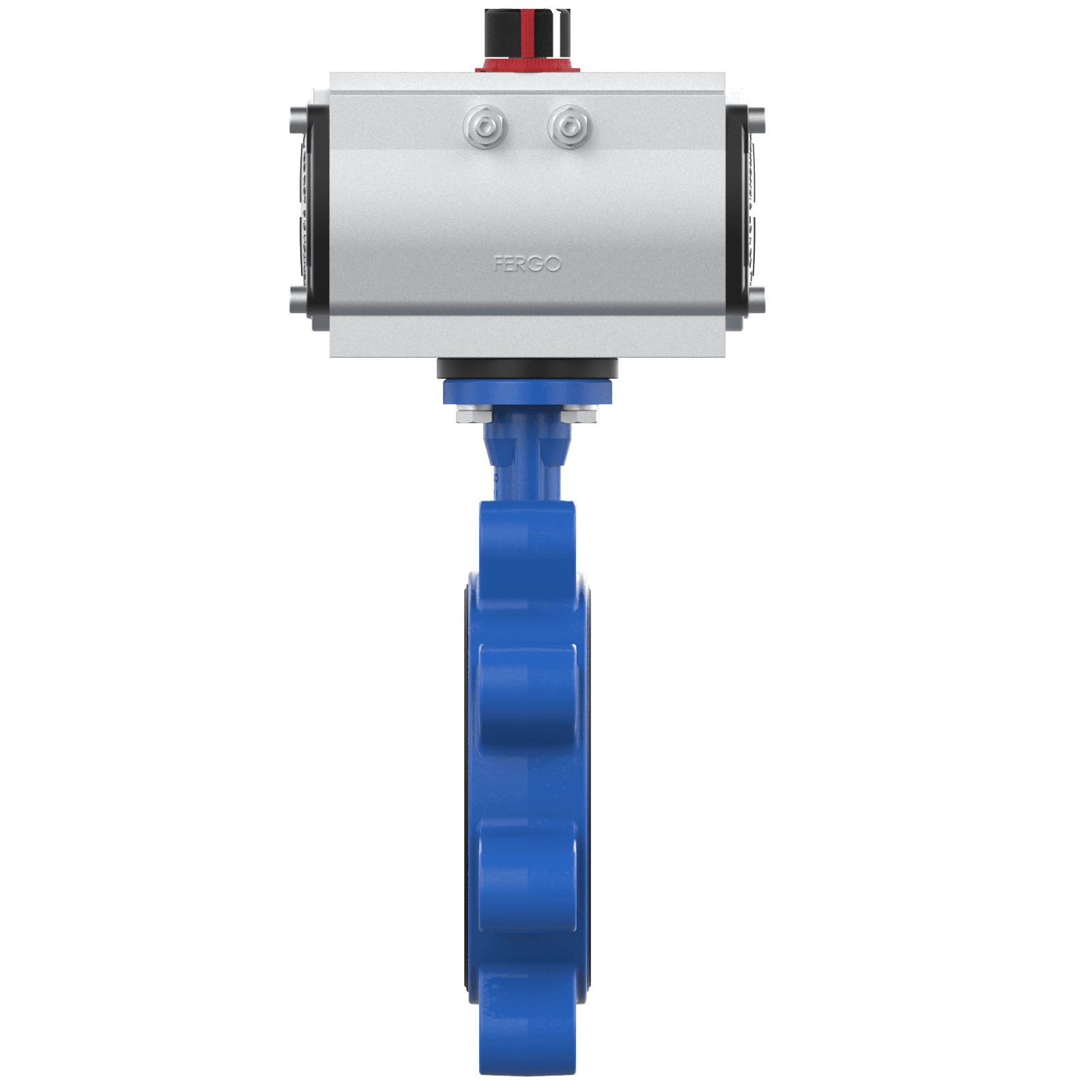

AK211 Butterfly valve DN 150 PN10/16 EPDM double-acting pneumatic actuator
Product number 150-1621-14-DA
Price €366.30
€435.90 incl. VAT
Delivery Time: 2-7 Days
Available: In Stock
Contact
Support and advice at:
Mon-Fri, 8:00 a.m. - 5:00 p.m
Mon-Fri, 8:00 a.m. - 5:00 p.m
Payment Methods
Shipping Methods
Description
Flanged butterfly valve DN 150 connection PN10/16, body made of cast iron GGG40, disc made of stainless steel 1.4408, seat ring made of EPDM, with pneumatic quarter-turn actuator double-acting
Nominal width : DN150 - 6'' inch
Connection : Flange PN10 , Flange PN16
Design : Lug
Body: Ductile Cast Iron (GGG40)
Face to Face length : EN558-1, Series 20
Sleeve material : EPDM
Disc : Stainless steel
Temperature range : -20°C to +110°C
Actuation : Pneumatic Actuator
Option: Double Acting
Availability: In Stock
Data sheet
Data sheet
3D-Model
Download 3D-Model
