Pneumatic butterfly valve DN300 PN10
Pneumatic butterfly valve DN300 PN10
Pneumatic butterfly valve DN300 PN10
Absperrklappen pneumatisch
Pneumatic butterfly valve DN300 PN10
Pneumatic butterfly valve DN300 PN10
Pneumatic butterfly valve DN300 PN10
Absperrklappen pneumatisch

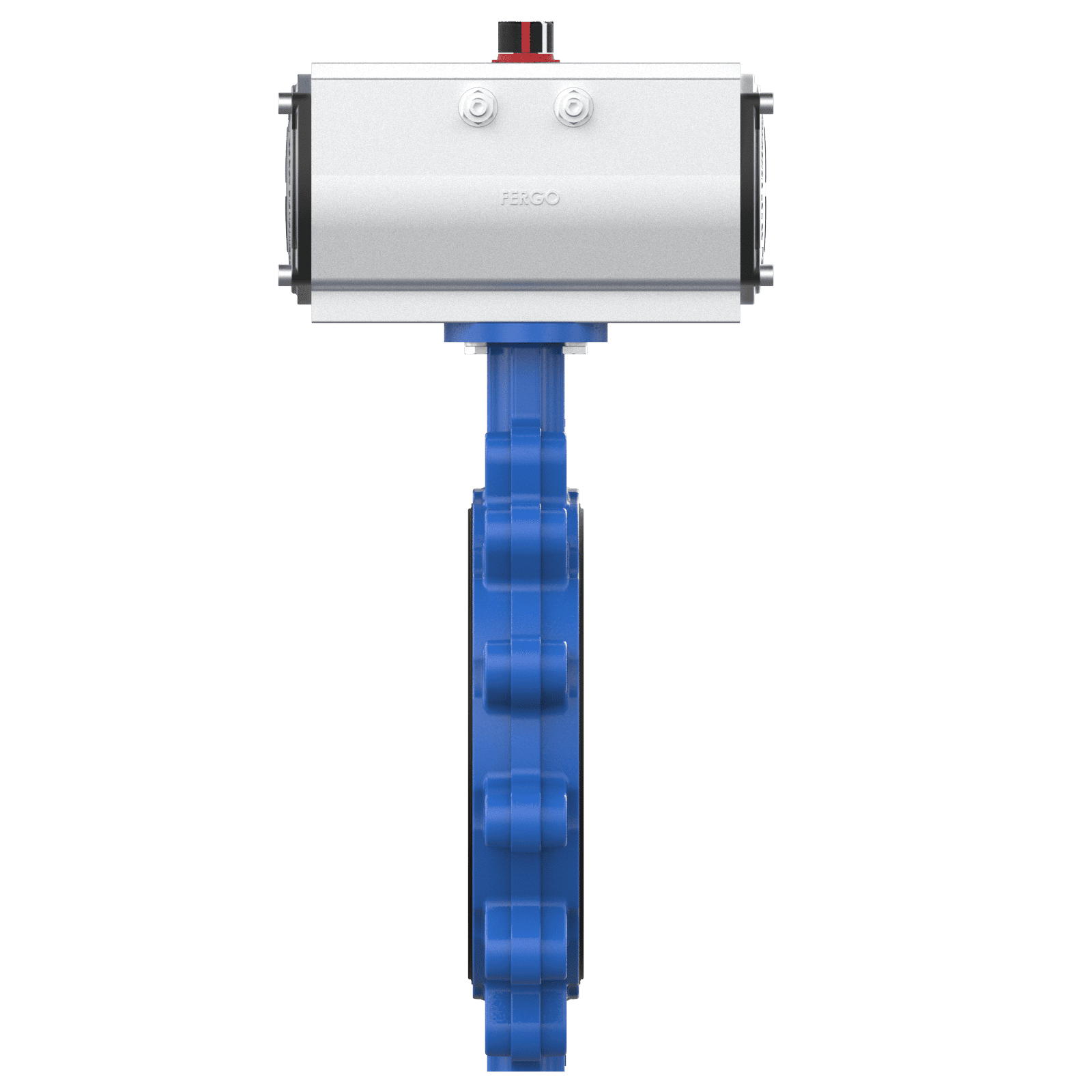

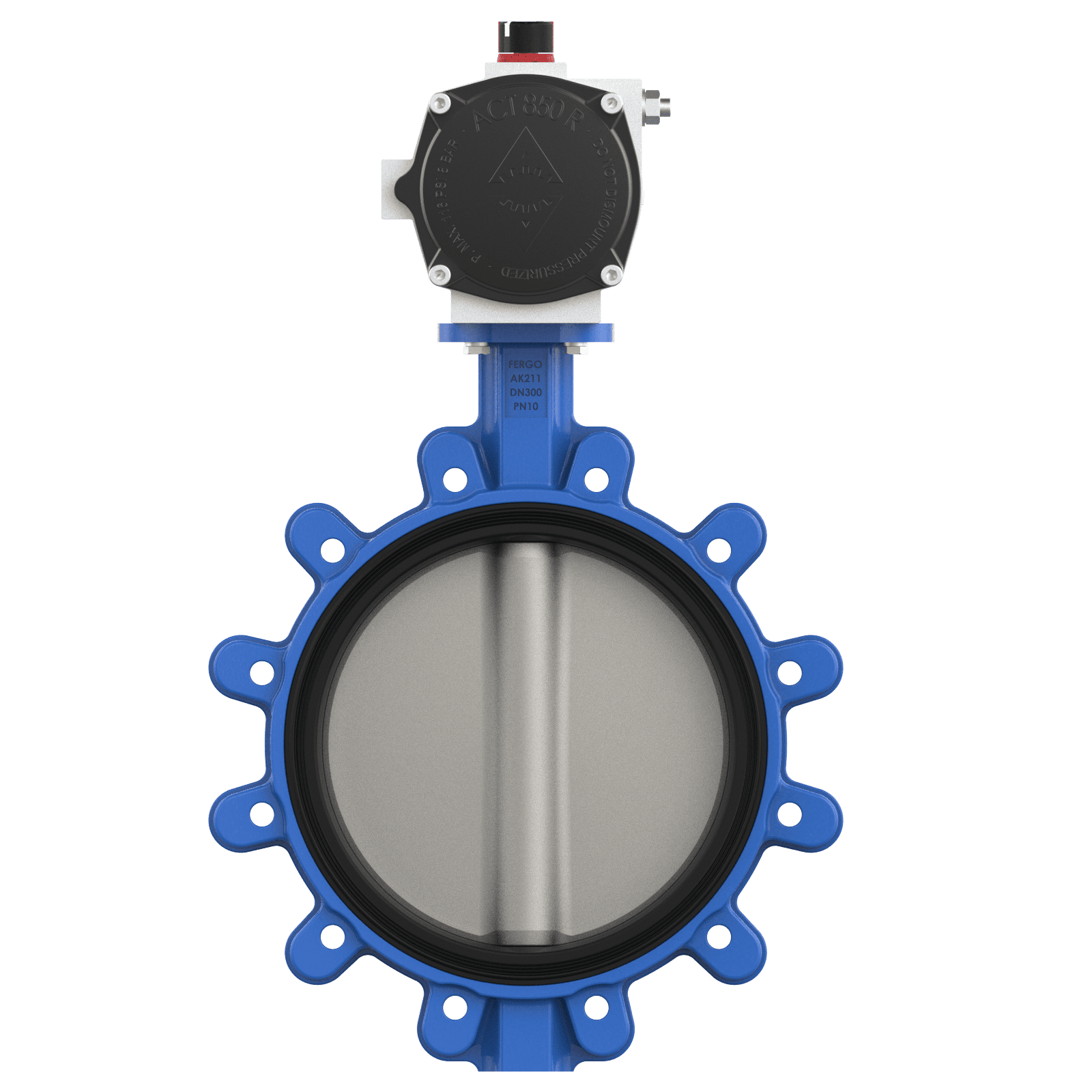

AK211 Butterfly valve DN 300 PN10 EPDM double-acting pneumatic actuator

Product number 150-1621-20-DA
Price €1,059.14
€1,260.38 incl. VAT
Delivery Time: 2-7 Days
Available: In Stock
3D Model
Contact
Support and advice at:
Mon-Fri, 8:00 a.m. - 5:00 p.m
+49 (0) 21 31 / 15 39 28-0
Payment Methods
Paid in advance
Invoice
Shipping Methods
Standard-DHL
Express Forwarding-The shipping cost will be charged separately.
self pickup
Flanged butterfly valve DN 300 connection PN10, body made of nodular cast iron GGG40, disc made of stainless steel 1.4408, seat ring made of EPDM, with pneumatic quarter-turn actuator double-acting
Nominal width : DN300 - 12'' inch
Connection : Flange PN10
Design : Lug
Body: Ductile Cast Iron (GGG40)
Face to Face length : EN558-1, Series 20
Sleeve material : EPDM
Disc : Stainless steel
Temperature range : -20°C to +110°C
Actuation : Pneumatic Actuator
Option: Double Acting
Availability: In Stock
Download 3D-Model
3D-Model
Skip product gallery

more products

Gas Absperrklappe mit pneumatischem Antrieb
AK210G Butterfly valve DN 300 PN16 DVGW gas NBR single-acting pneumatic actuator
Product number
Copy to clipboard 150-1603-20-SR
Wafer type butterfly valve DN 300, connection PN6/10/16/150lbs, body made of nodular cast iron GGG40, disc made of stainless steel 1.4408, seat ring made of NBR, DVGW gas with single acting pneumatic actuator
Nominal width :
DN300 - 12'' inch
Design :
Wafer
Connection :
Flange ANSI Class150
Connection :
Flange PN6
Connection :
Flange PN10
Connection :
Flange PN16
Price €1,948.51
€2,318.73 incl. VAT
Delivery Time: 2-7 Days
Available: In Stock
Pneumatic butterfly valve DN300
AK210 Butterfly valve DN 300 PN16 FPM/FKM (Viton) double-acting pneumatic actuator
Product number
Copy to clipboard 150-1609-20-DA
Wafer type butterfly valve DN 300, connection PN6/10/16/150lbs, body made of nodular cast iron GGG40, disc stainless steel 1.4408, seat ring FPM/FKM(Viton) with pneumatic quarter-turn actuator double acting
Nominal width :
DN250 - 10'' inch
Design :
Wafer
Connection :
Flange ANSI Class150
Connection :
Flange PN6
Connection :
Flange PN10
Connection :
Flange PN16
Price €1,846.74
€2,197.62 incl. VAT
Delivery Time: 2-7 Days
Available: In Stock
Pneumatische Absperrklappe
AK210 Butterfly valve DN 300 PN16 EPDM single-acting pneumatic actuator
Product number
Copy to clipboard 150-1601-20-SR
Wafer type butterfly valve DN 300, connection PN6/10/16/150lbs, body made of ductile cast iron GGG40, disc made of stainless steel 1.4408, seat ring made of EPDM with pneumatic quarter-turn actuator single acting
Nominal width :
DN300 - 12'' inch
Design :
Wafer
Connection :
Flange ANSI Class150
Connection :
Flange PN6
Connection :
Flange PN10
Connection :
Flange PN16
Price €1,884.91
€2,243.04 incl. VAT
Delivery Time: 2-7 Days
Available: In Stock
Pneumatic butterfly valve DN300
AK210 Butterfly valve DN 300 PN16 EPDM double-acting pneumatic actuator
Product number
Copy to clipboard 150-1601-20-DA
Wafer type butterfly valve DN 300, connection PN6/10/16/150lbs, body made of nodular cast iron GGG40, disc made of stainless steel 1.4408, seat ring made of EPDM with pneumatic quarter-turn actuator double acting
Nominal width :
DN300 - 12'' inch
Design :
Wafer
Connection :
Flange ANSI Class150
Connection :
Flange PN6
Connection :
Flange PN10
Connection :
Flange PN16
Price €930.17
€1,106.90 incl. VAT
Delivery Time: 2-7 Days
Available: In Stock
