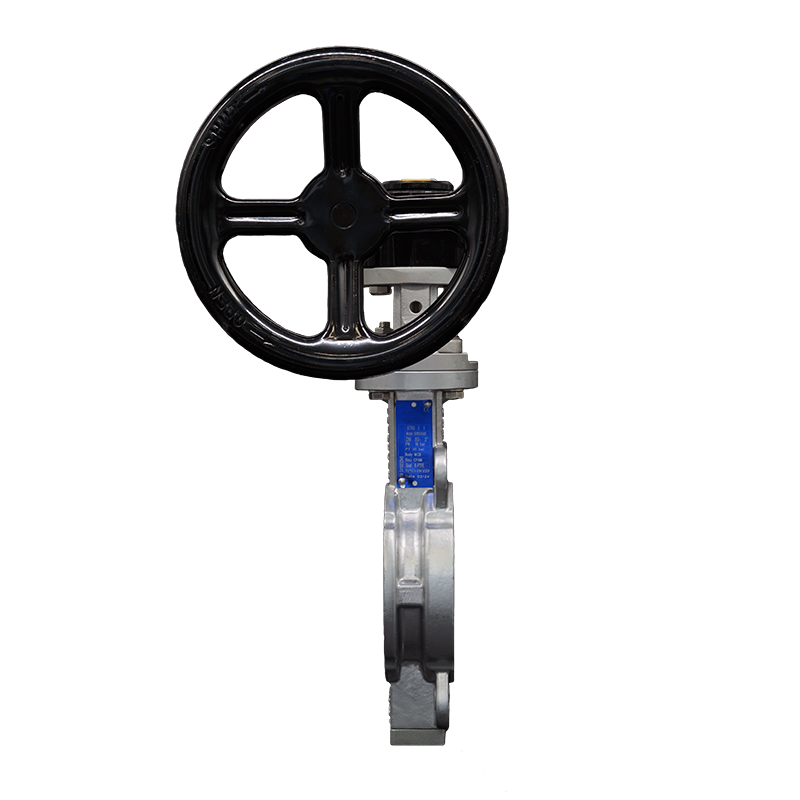

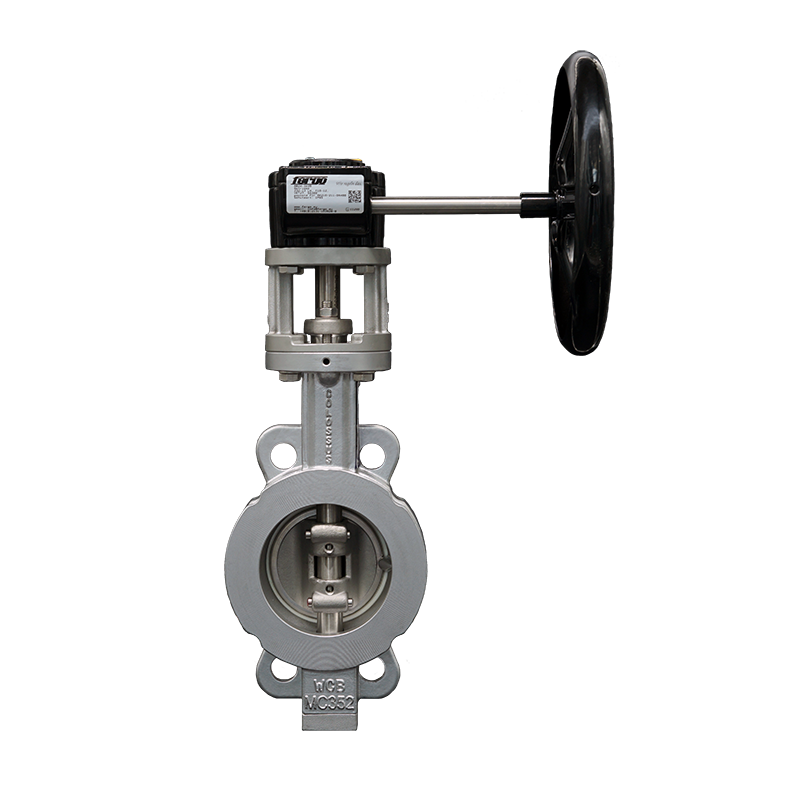

Double offset type, WAFER type for installation between flanges PN10, PN16, ANSI 150, Face to face acc. to EN 558-1, Line 20; ISO 5752 Series 20, Tightness acc. to Class VI / ISO 5208, Rate A, Actuator connection: ISO 5211, Body: ASTM A216 WCB, Disc: ASTM A351 CF8M, Shaft: ASTM A276 F316, Seat: RPTFE (PTFE + 25% glass fiber) , Packing: PTFE, Max. working pressure: ≤25 bar, Temp. (min./max.): -29°C to +220°C, Operation: Gearbox, TA Luft approval (ISO 15848), ATEX acc. to 2014/34/EU - Atex II 2GDc.
Intermediate flange PTFE lined butterfly valve DN 150, connection PN10/PN16/ANSI 150, body made of EN-GSJ-500-7 (GGG50) ductile cast iron, disc made of (CF8M) stainless steel, PTFE lined, seal made of PTFE with electric actuatorJ4C S300 multivoltage 24V-240V AC/DC
PTFE butterfly valve DN 150, connection PN10/PN16, body made of EN-GSJ-500-7 (GGG50) nodular cast iron, disc made of ASTM A182 F316 (CF8M) stainless steel, seal made of PTFE with hand lever (Al)
Lug butterfly valve stainless steel DN 150 with hand leverButterfly valve connection PN10/16, butterfly valve body & disc made of stainless steel (1.4408), seat ring made of EPDM, temp. (min. max.) -10°C to +120°C with hand lever (Al)
Lug PTFE lined butterfly valve DN 150, connection PN10/PN16, body made of EN-GSJ-500-7 (GGG50) ductile cast iron, disc made of (CF8M) stainless steel, PFA + PTFE lined, seal made of PTFE with double acting pneumatic actuator
Intermediate flange PTFE lined butterfly valve DN 150, connection PN10/PN16, body made of EN-GSJ-500-7 (GGG50) ductile cast iron, disc made of (CF8M) stainless steel, PTFE lined, seal made of PTFE with electric actuator J4C S300 multivoltage 24V-240V AC/DC
