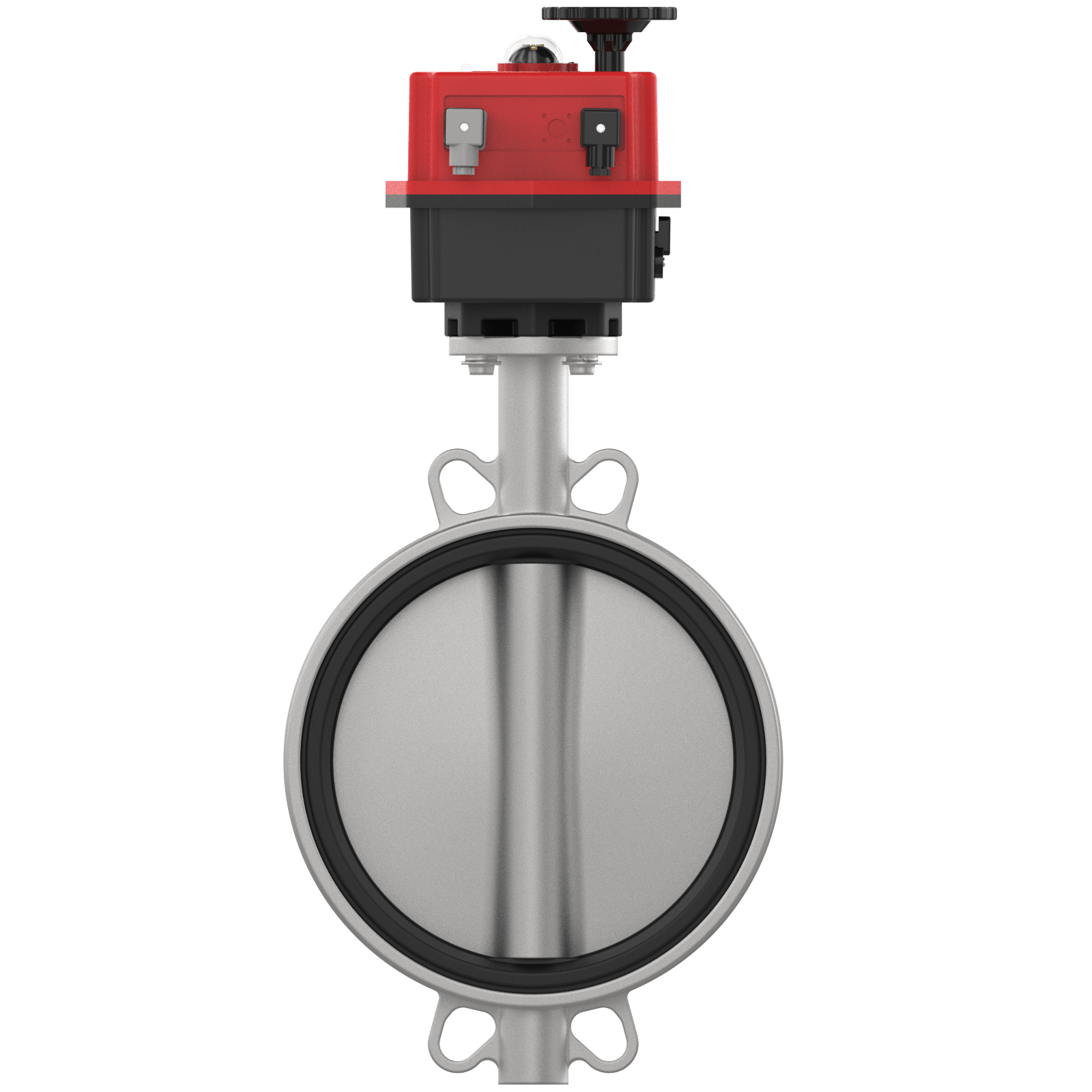

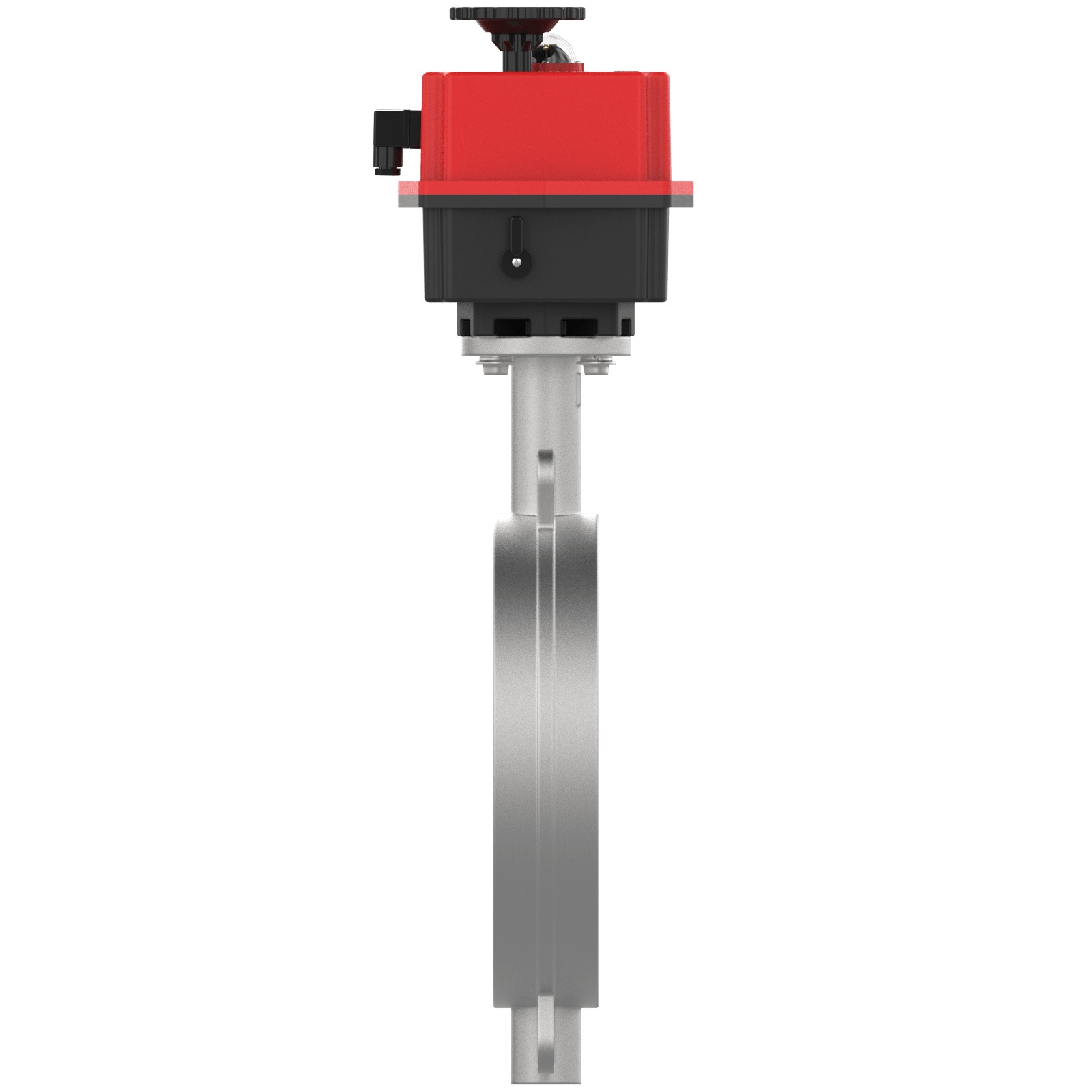

AK202 Stainless steel butterfly valve DN 200 PN10/16/150lbs electric 24V - 230V AC/DC

Stainless steel butterfly valve type AK203 with threaded holes operated by an electric actuator 24 V - 230 V - 240 V AC/DC. The valve is suitable for installation between flanges according to DIN PN10. Lug-type body, concentric design. The body and disc are made of stainless steel (CF8M/1.4408), and the shaft is made of stainless steel (AISI 420). The seat ring is made of EPDM. Ideal for installation in corrosive environments with liquid and gaseous media. Actuated by an electric multi-voltage actuator with a running time (90°): 58s ± 10%. The actuator can be upgraded to a digital positioner (0-10V or 4-20mA) or a battery safety pack (NC/NO) upon request.

Flanged butterfly valve DN 200 connection PN10, body made of nodular cast iron GGG40, disc made of stainless steel 1.4408, seat ring made of EPDM, with electric actuator J4C-S300, running time (90°): 58s ± 10%, multivoltage 24V -230V - 240V AC/DC

Intermediate flange PTFE lined butterfly valve DN 80, connection PN10/PN16/ANSI 150, body made of EN-GSJ-500-7 (GGG50) ductile cast iron, disc made of (CF8M) stainless steel, PFA + PTFE lined, seal made of PTFE with electric actuator

wafer butterfly valve connection PN6/10/16/150lbs, body made of nodular cast iron GGG40, disc made of stainless steel 1.4408, seat ring EPDM, DVGW drinking water with electric quarter-turn actuator J4C-S85, running time (90°): 29s ± 10%, multivoltag 24V - 230V - 240V AC/DC

Wafer type butterfly valve DN 25 connection PN10/16, body made of nodular cast iron GGG40, disc made of stainless steel 1.4408, seat ring made of EPDM, DVGW drinking water with electric quarter-turn actuator J4C-S20, running time (90°): 9s ± 10%, multivoltage 24V - 230V - 240V AC/DC

Wafer type butterfly valve DN 40 connection PN6/10/16/150lbs, body made of nodular cast iron GGG40, disc made of stainless steel 1.4408, seat ring made of NBR, approval DVGW gas with electric actuator J4C-S20, running time (90°): 9s ± 10%, multivoltage 24V - 230V - 240V AC/DC

Electric butterfly valve DN 80 water, connection flanges PN10/16, body made of nodular cast iron GGG40, disc made of stainless steel 1.4408, seat ring made of EPDM, approval: DVGW for drinking water with electric actuator J4C-S55, running time (90°): 13s ± 10%, Multivoltage 24V -230V - 240V AC/DC

Wafer type butterfly valve DN 100 with multivoltage electric rotary actuator 24V-240V AC/DC Wafer type butterfly valve DN100, PN10/16/150lbs, butterfly valve body made of nodular cast iron GGG40, butterfly valve disc made of stainless steel 1.4408, seat ring made of NBR, actuation electric actuator J4C-S85, Running time (90°): 29s ± 10%, Multivoltage 24V - 240V AC/DC

Intermediate flange PTFE lined butterfly valve DN 150, connection PN10/PN16/ANSI 150, body made of EN-GSJ-500-7 (GGG50) ductile cast iron, disc made of (CF8M) stainless steel, PTFE lined, seal made of PTFE with electric actuator J4C S300, multivoltage 24V-240V AC/DC

Intermediate flange PTFE lined butterfly valve DN 65, connection PN10/PN16/ANSI 150, body made of EN-GSJ-500-7 (GGG50) ductile cast iron, disc made of (CF8M) stainless steel, PFA + PTFE lined, seal made of PTFE with electric actuator

Electric gas butterfly valve - flanged butterfly valve DN25 gas, connection flanges PN10/16, body made of nodular cast iron GGG40, disc made of stainless steel 1.4408, seat ring made of NBR, approval: DVGW for gas with electric actuator J4C-S20, running time (90°): 9s ± 10%, Multivoltage 24V -230V - 240V AC/DC

Intermediate flange PTFE lined butterfly valve DN 65, connection PN10/PN16/ANSI 150, body made of EN-GSJ-500-7 (GGG50) ductile cast iron, disc made of (CF8M) stainless steel, PFA + PTFE lined, seal made of PTFE with electric actuator

Electric butterfly valve DN 50 - Viton sealIntermediate flange connection PN10/16, housing made of ductile iron GGG40, valve disc made of stainless steel 1.4408, seat ring made of Viton FPM - FKM, with electric swing actuator J4C-S35, running time (90°): 9s ± 10%, multi-voltage 24V - 230V - 240V AC/DC

Stainless steel butterfly valve type AK202 operated by an electric actuator 24V - 230V - 240V AC/DC. The valve is suitable for installation between flanges according to DIN PN10/16 and ANSI/ASME Class 150. Wafer-type body and centric/concentric design. The body and disc are made of stainless steel (CF8M/1.4408), and the shaft is made of stainless steel (AISI 420). The seat ring is made of EPDM. Ideal for installation in corrosive environments with liquid and gaseous media. Actuated by an electric multi-voltage actuator with a running time (90°): 9s ± 10%. The actuator can be upgraded to a digital positioner (0-10V or 4-20mA) or a battery safety pack (NC/NO) upon request.

Stainless steel butterfly valve type AK203 with threaded holes operated by an electric actuator 24 V - 230 V - 240 V AC/DC. The valve is suitable for installation between flanges according to DIN PN10/16. Lug-type body, concentric design. The body and disc are made of stainless steel (CF8M/1.4408), and the shaft is made of stainless steel (AISI 420). The seat ring is made of EPDM. Ideal for installation in corrosive environments with liquid and gaseous media. Actuated by an electric multi-voltage actuator with a running time (90°): 34s ± 10%. The actuator can be upgraded to a digital positioner (0-10V or 4-20mA) or a battery safety pack (NC/NO) upon request.

Stainless steel butterfly valve type AK203 with threaded holes operated by an electric actuator 24 V - 230 V - 240 V AC/DC. The valve is suitable for installation between flanges according to DIN PN10/16. Lug-type body, concentric design. The body and disc are made of stainless steel (CF8M/1.4408), and the shaft is made of stainless steel (AISI 420). The seat ring is made of EPDM. Ideal for installation in corrosive environments with liquid and gaseous media. Actuated by an electric multi-voltage actuator with a running time (90°): 34s ± 10%. The actuator can be upgraded to a digital positioner (0-10V or 4-20mA) or a battery safety pack (NC/NO) upon request.

Stainless steel butterfly valve type AK203 with threaded holes operated by an electric actuator 24 V - 230 V - 240 V AC/DC. The valve is suitable for installation between flanges according to DIN PN10/16. Lug-type body, concentric design. The body and disc are made of stainless steel (CF8M/1.4408), and the shaft is made of stainless steel (AISI 420). The seat ring is made of EPDM. Ideal for installation in corrosive environments with liquid and gaseous media. Actuated by an electric multi-voltage actuator with a running time (90°): 29s ± 10%. The actuator can be upgraded to a digital positioner (0-10V or 4-20mA) or a battery safety pack (NC/NO) upon request.

Stainless steel butterfly valve type AK203 with threaded holes operated by an electric actuator 24 V - 230 V - 240 V AC/DC. The valve is suitable for installation between flanges according to DIN PN10/16. Lug-type body, concentric design. The body and disc are made of stainless steel (CF8M/1.4408), and the shaft is made of stainless steel (AISI 420). The seat ring is made of EPDM. Ideal for installation in corrosive environments with liquid and gaseous media. Actuated by an electric multi-voltage actuator with a running time (90°): 13s ± 10%. The actuator can be upgraded to a digital positioner (0-10V or 4-20mA) or a battery safety pack (NC/NO) upon request.

Stainless steel butterfly valve type AK203 with threaded holes operated by an electric actuator 24 V - 230 V - 240 V AC/DC. The valve is suitable for installation between flanges according to DIN PN10/16. Lug-type body, concentric design. The body and disc are made of stainless steel (CF8M/1.4408), and the shaft is made of stainless steel (AISI 420). The seat ring is made of EPDM. Ideal for installation in corrosive environments with liquid and gaseous media. Actuated by an electric multi-voltage actuator with a running time (90°): 13s ± 10%. The actuator can be upgraded to a digital positioner (0-10V or 4-20mA) or a battery safety pack (NC/NO) upon request.

Stainless steel butterfly valve type AK203 with threaded holes operated by an electric actuator 24 V - 230 V - 240 V AC/DC. The valve is suitable for installation between flanges according to DIN PN10/16. Lug-type body, concentric design. The body and disc are made of stainless steel (CF8M/1.4408), and the shaft is made of stainless steel (AISI 420). The seat ring is made of EPDM. Ideal for installation in corrosive environments with liquid and gaseous media. Actuated by an electric multi-voltage actuator with a running time (90°): 9s ± 10%. The actuator can be upgraded to a digital positioner (0-10V or 4-20mA) or a battery safety pack (NC/NO) upon request.

Stainless steel butterfly valve type AK202 operated by an electric actuator 24V - 230V - 240V AC/DC. The valve is suitable for installation between flanges according to DIN PN10/16 and ANSI/ASME Class 150. Wafer-type body and centric/concentric design. The body and disc are made of stainless steel (CF8M/1.4408), and the shaft is made of stainless steel (AISI 420). The seat ring is made of EPDM. Ideal for installation in corrosive environments with liquid and gaseous media. Actuated by a multi-voltage electric actuator with a running time (90°): 34s ± 10%. The actuator can be upgraded to a digital positioner (0-10V or 4-20mA) or a battery safety pack (NC/NO) upon request.

Stainless steel butterfly valve type AK202 operated by an electric actuator 24V - 230V - 240V AC/DC. The valve is suitable for installation between flanges according to DIN PN10/16 and ANSI/ASME Class 150. Wafer-type body and centric/concentric design. The body and disc are made of stainless steel (CF8M/1.4408), and the shaft is made of stainless steel (AISI 420). The seat ring is made of EPDM. Ideal for installation in corrosive environments with liquid and gaseous media. Actuated by a multi-voltage electric actuator with a running time (90°): 34s ± 10%. The actuator can be upgraded to a digital positioner (0-10V or 4-20mA) or a battery safety pack (NC/NO) upon request.

Stainless steel butterfly valve type AK202 operated by an electric actuator 24V - 230V - 240V AC/DC. The valve is suitable for installation between flanges according to DIN PN10/16 and ANSI/ASME Class 150. Wafer-type body and centric/concentric design. The body and disc are made of stainless steel (CF8M/1.4408), and the shaft is made of stainless steel (AISI 420). The seat ring is made of EPDM. Ideal for installation in corrosive environments with liquid and gaseous media. Actuated by a multi-voltage electric actuator with a running time (90°): 29s ± 10%. The actuator can be upgraded to a digital positioner (0-10V or 4-20mA) or a battery safety pack (NC/NO) upon request.

Stainless steel butterfly valve type AK202 operated by an electric actuator 24V - 230V - 240V AC/DC. The valve is suitable for installation between flanges according to DIN PN10/16 and ANSI/ASME Class 150. Wafer-type body and centric/concentric design. The body and disc are made of stainless steel (CF8M/1.4408), and the shaft is made of stainless steel (AISI 420). The seat ring is made of EPDM. Ideal for installation in corrosive environments with liquid and gaseous media. Actuated by a multi-voltage electric actuator with a running time (90°): 13s ± 10%. The actuator can be upgraded to a digital positioner (0-10V or 4-20mA) or a battery safety pack (NC/NO) upon request.
