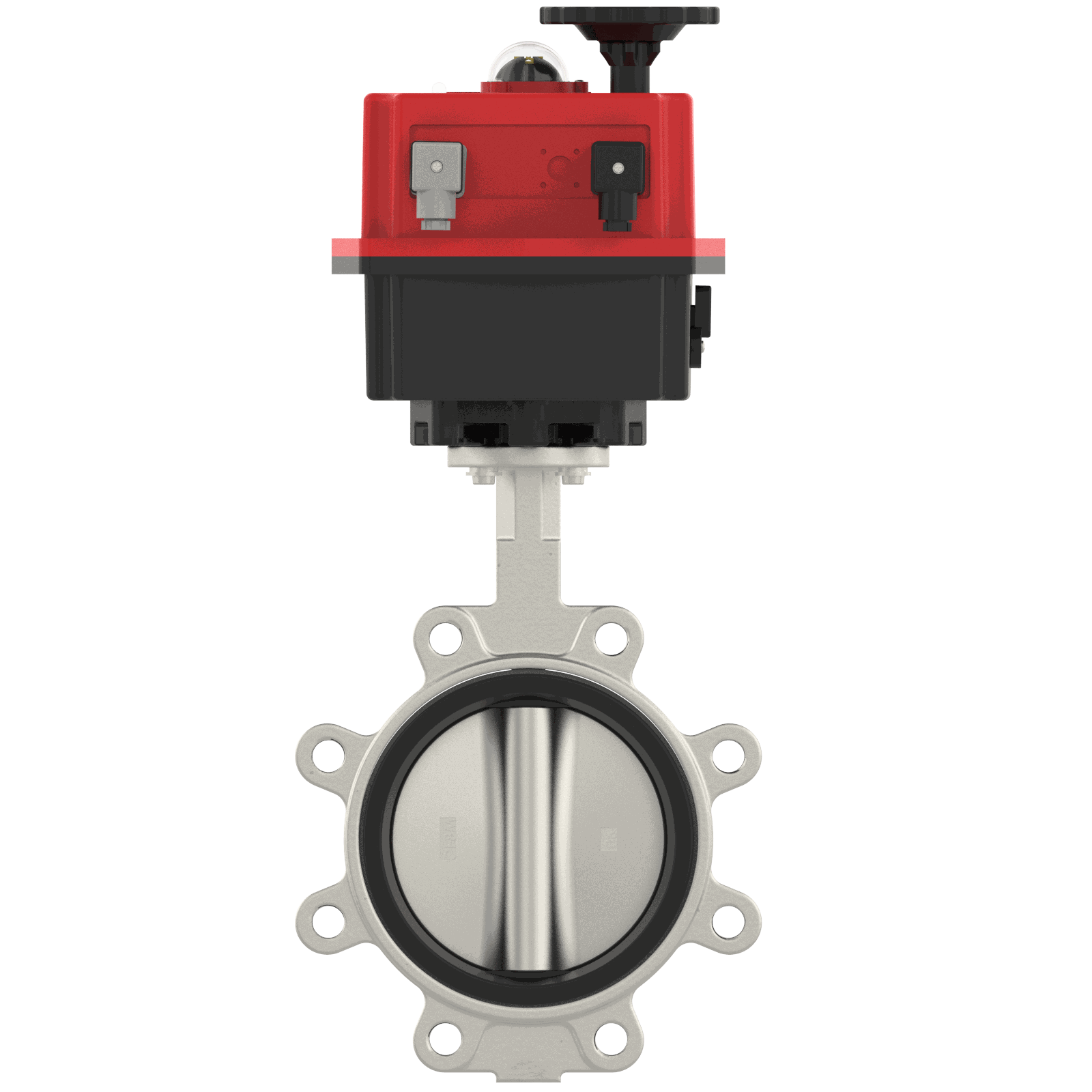

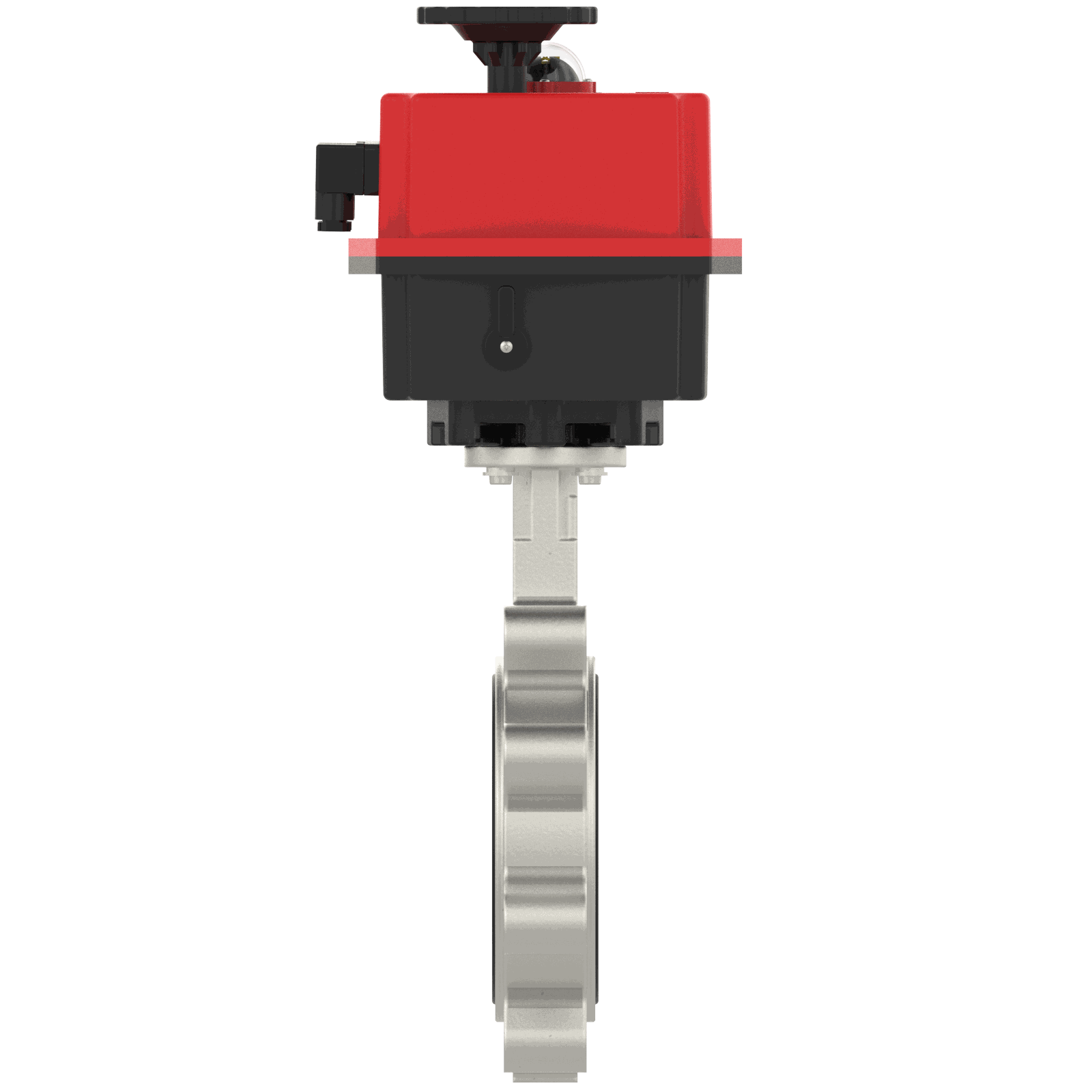

AK203 Stainless steel butterfly valve DN 150 PN10/16 electric 24V - 230V AC/DC
Product number 150-1572-14-EL
Price €1,070.42
€1,273.80 incl. VAT
Delivery Time: 2-7 Days
Available: In Stock
Contact
Support and advice at:
Mon-Fri, 8:00 a.m. - 5:00 p.m
Mon-Fri, 8:00 a.m. - 5:00 p.m
Payment Methods
Shipping Methods
Description
Stainless steel butterfly valve type AK203 with threaded holes operated by an electric actuator 24 V - 230 V - 240 V AC/DC. The valve is suitable for installation between flanges according to DIN PN10/16. Lug-type body, concentric design. The body and disc are made of stainless steel (CF8M/1.4408), and the shaft is made of stainless steel (AISI 420). The seat ring is made of EPDM. Ideal for installation in corrosive environments with liquid and gaseous media. Actuated by an electric multi-voltage actuator with a running time (90°): 34s ± 10%. The actuator can be upgraded to a digital positioner (0-10V or 4-20mA) or a battery safety pack (NC/NO) upon request.
Nominal width : DN150 - 6'' inch
Running time (90°): 34s ± 10%
Connection : Flange PN10 , Flange PN16
Design : Lug
Body: Stainless Steel
Face to Face length : EN 558-series 20
Sleeve material : EPDM
Disc : Stainless steel
Temperature range : -10°C to +120°C
Actuation : Electric Actuator
Max. Operating pressure : 16 bar
Option: 24V, 230V, 240V
Availability: In Stock
Tender
Butterfly Valve type AK203-SSELL-DN150 with EL actuator
• LUG type for mounting between flanges PN10/16
• Top flange ISO 5211
• Concentric design
• Body: CF8M (1.4408)
• Disc: CF8M (1.4408)
• Shaft: AISI 420
• Nominal pressure (max.): 16bar
• Seat: EPDM (hard seat with sealing lips)
• Temp. (min./max.): -10°C to +120°C
Operation: Electric part-turn actuator Type: FG-J4C-S140
• Multivoltage system: 24 - 240V AC/DC, 50/60Hz
• Runtime (90°): 34s ± 10%
• Protection: IP67
• Ambient temperature: -20°C to +70°C
• Housing: polyamide (PA6)
• Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC
• Manual override • Electronic torque limiter • Automatic interior heater
Data sheet
Data sheet
3D-Model
Download 3D-Model
