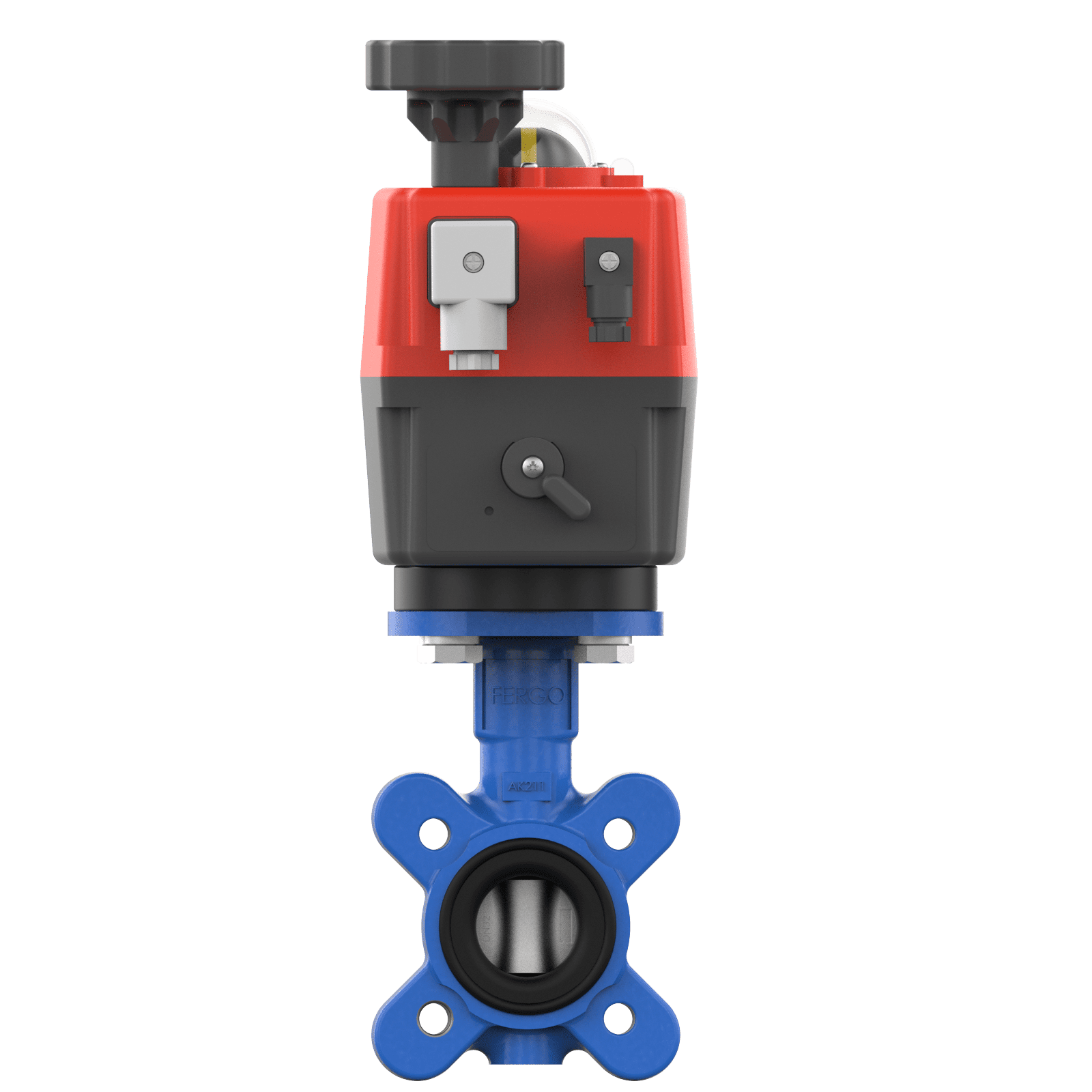

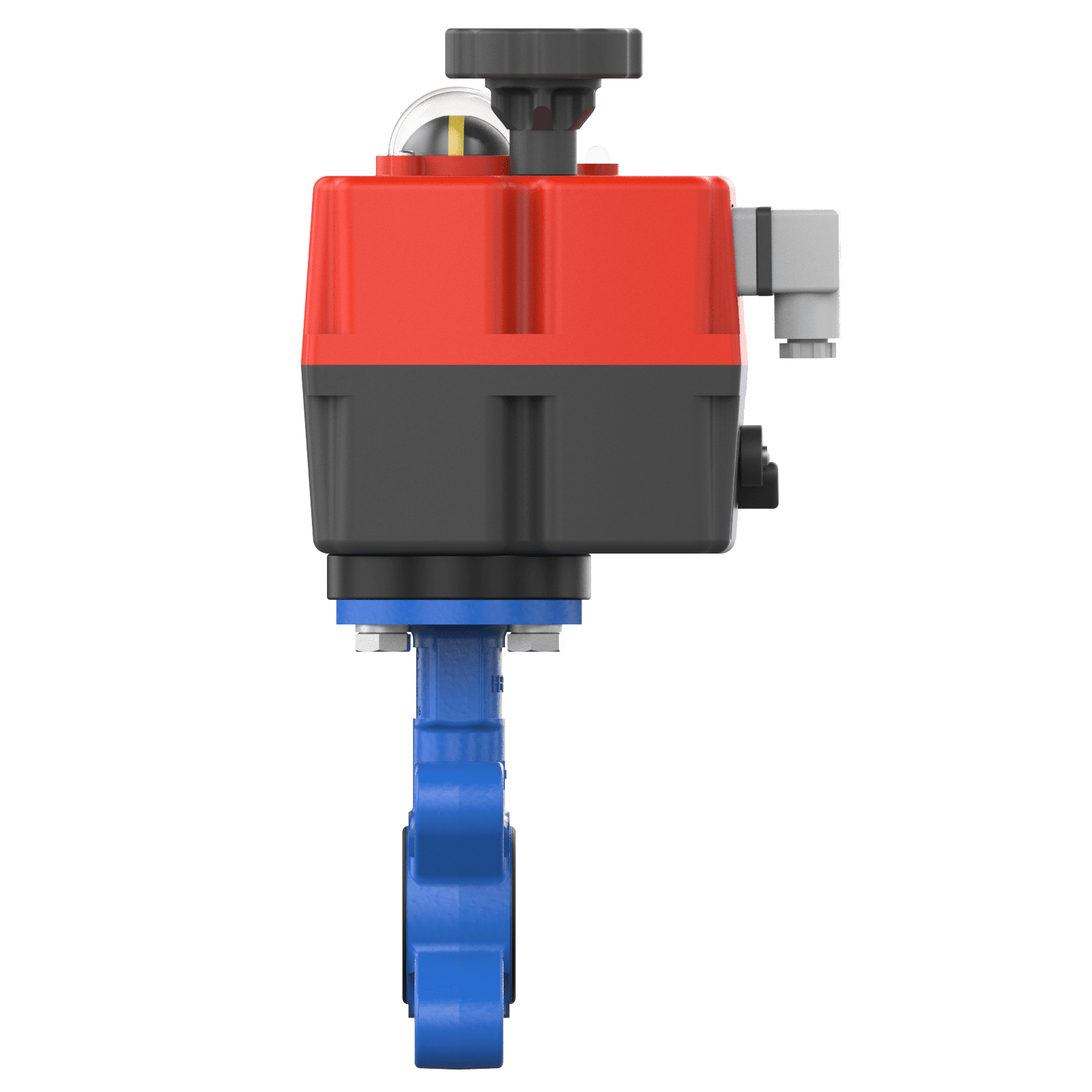

AK211 Butterfly valve DN 25 PN16 EPDM electric actuator 24V - 230V - 240V
Product number 150-1621-06-EL
Price €310.38
€369.35 incl. VAT
Delivery Time: 2-7 Days
Available: In Stock
Contact
Support and advice at:
Mon-Fri, 8:00 a.m. - 5:00 p.m
Mon-Fri, 8:00 a.m. - 5:00 p.m
Payment Methods
Shipping Methods
Description
Flanged butterfly valve DN 25, connection PN10/16, body made of nodular cast iron GGG40, disc made of stainless steel 1.4408, seat ring made of EPDM, with Electric actuator J4C-S20, running time (90°): 9s ± 10%, multi-voltage 24V -230V - 240V AC/DC
Nominal width : DN25 - 1'' inch
Running time (90°): 9s ± 10%
Connection : Flange PN10 , Flange PN16
Design : Lug
Body: Ductile Cast Iron (GGG40)
Face to Face length : EN558-1, Series 20
Sleeve material : EPDM
Disc : Stainless steel
Temperature range : -20°C to +110°C
Actuation : Electric Actuator
Option: 24V, 230V, 240V
Availability: In Stock
Data sheet
Data sheet
3D-Model
Download 3D-Model
Skip product gallery
more products
AK211 Butterfly valve DN 25 PN16 EPDM single-acting pneumatic actuator
Product number
Copy to clipboard 150-1621-06-SR
Flanged butterfly valve DN 25 connection flanges PN10/16, body made of nodular cast iron GGG40, disc made of stainless steel 1.4408, seat ring made of EPDM, with pneumatic quarter-turn actuator single-acting
Nominal width :
DN25 - 1'' inch
Design :
Lug
Connection :
Flange PN10
Connection :
Flange PN16
Body:
Ductile Cast Iron (GGG40)
Face to Face length :
EN558-1, Series 20
Price €195.66
€232.84 incl. VAT Delivery Time: 2-7 Days
Available: In Stock
AK211 Butterfly valve DN 25 PN16 EPDM double-acting pneumatic actuator
Product number
Copy to clipboard 150-1621-06-DA
Flanged butterfly valve DN 25 connection PN10/16, body made of nodular cast iron GGG40, disc made of stainless steel 1.4408, seat ring made of EPDM with pneumatic quarter turn actuator double acting
Nominal width :
DN25 - 1'' inch
Design :
Lug
Connection :
Flange PN10
Connection :
Flange PN16
Body:
Ductile Cast Iron (GGG40)
Face to Face length :
EN558-1, Series 20
Price €164.43
€195.67 incl. VAT Delivery Time: 2-7 Days
Available: In Stock
AK211 Butterfly valve DN 25 PN16 FPM/FKM electric actuator 24V - 230V - 240V
Product number
Copy to clipboard 150-1629-06-EL
Flanged butterfly valve DN25 electric actuator, flanges PN10/16, body made of nodular cast iron GGG40, disc made of stainless steel 1.4408, seat ring made of FPM/FKM (Viton) with electric actuator J4C-S20, running time (90°): 9s ± 10%, multivoltage 24V -230V - 240V AC/DC
Nominal width :
DN25 - 1'' inch
Design :
Lug
Connection :
Flange PN10
Connection :
Flange PN16
Body:
Ductile Cast Iron (GGG40)
Face to Face length :
EN558-1, Series 20
Price €361.02
€429.61 incl. VAT Delivery Time: 2-7 Days
Available: In Stock
AK211W Butterfly valve DN 25 PN16 DVGW drinking water EPDM double-acting pneumatic actuator
Product number
Copy to clipboard 150-1625-06-DA
Flanged butterfly valve DN 25 connection flanges PN10/16, body made of nodular cast iron GGG40, disc made of stainless steel 1.4408, seat ring made of EPDM, DVGW approval for drinking water with pneumatic quarter-turn actuator double-acting
Nominal width :
DN25 - 1'' inch
Design :
Lug
Connection :
Flange PN10
Connection :
Flange PN16
Body:
Ductile Cast Iron (GGG40)
Face to Face length :
EN558-1, Series 20
Price €182.58
€217.27 incl. VAT Delivery Time: 2-7 Days
Available: In Stock
