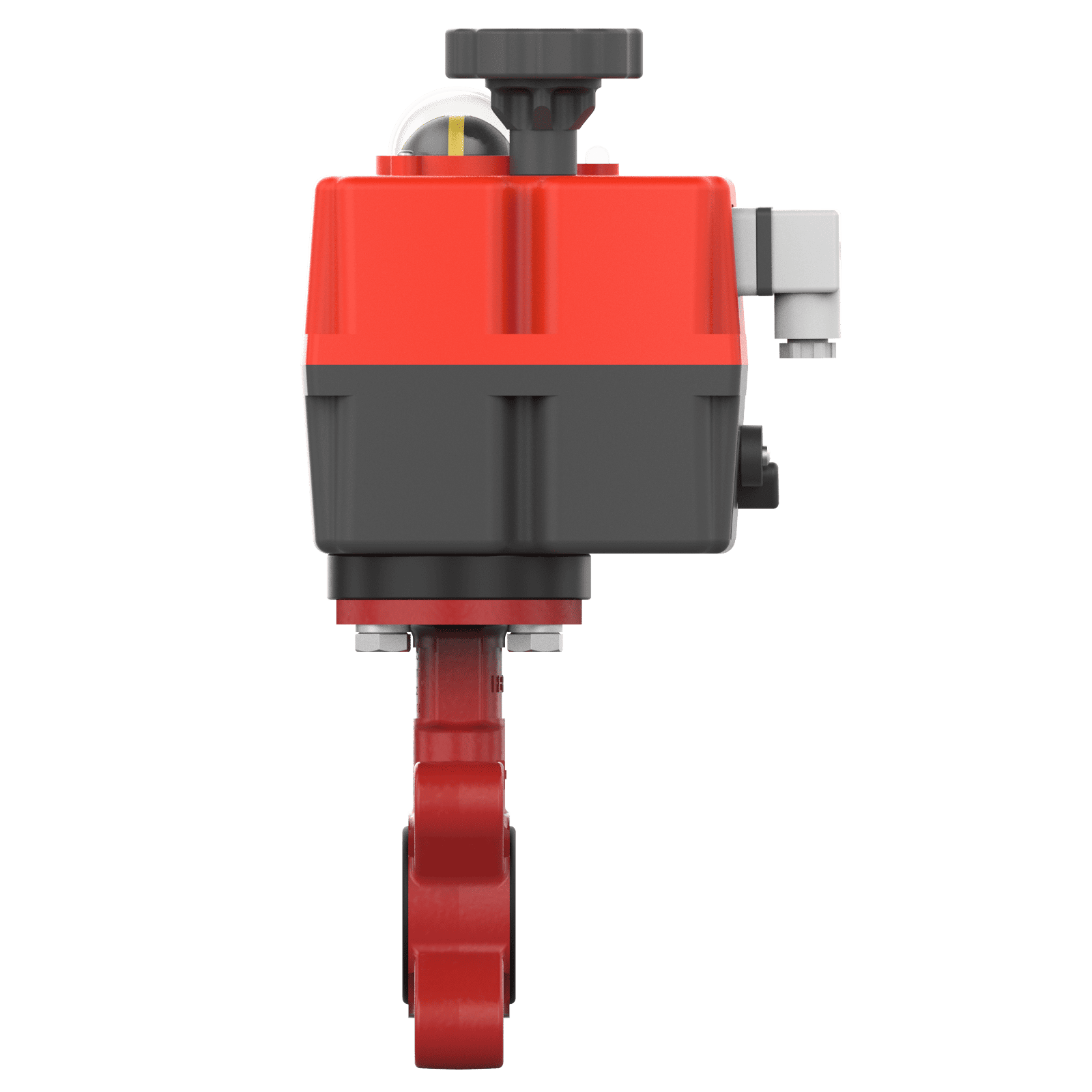

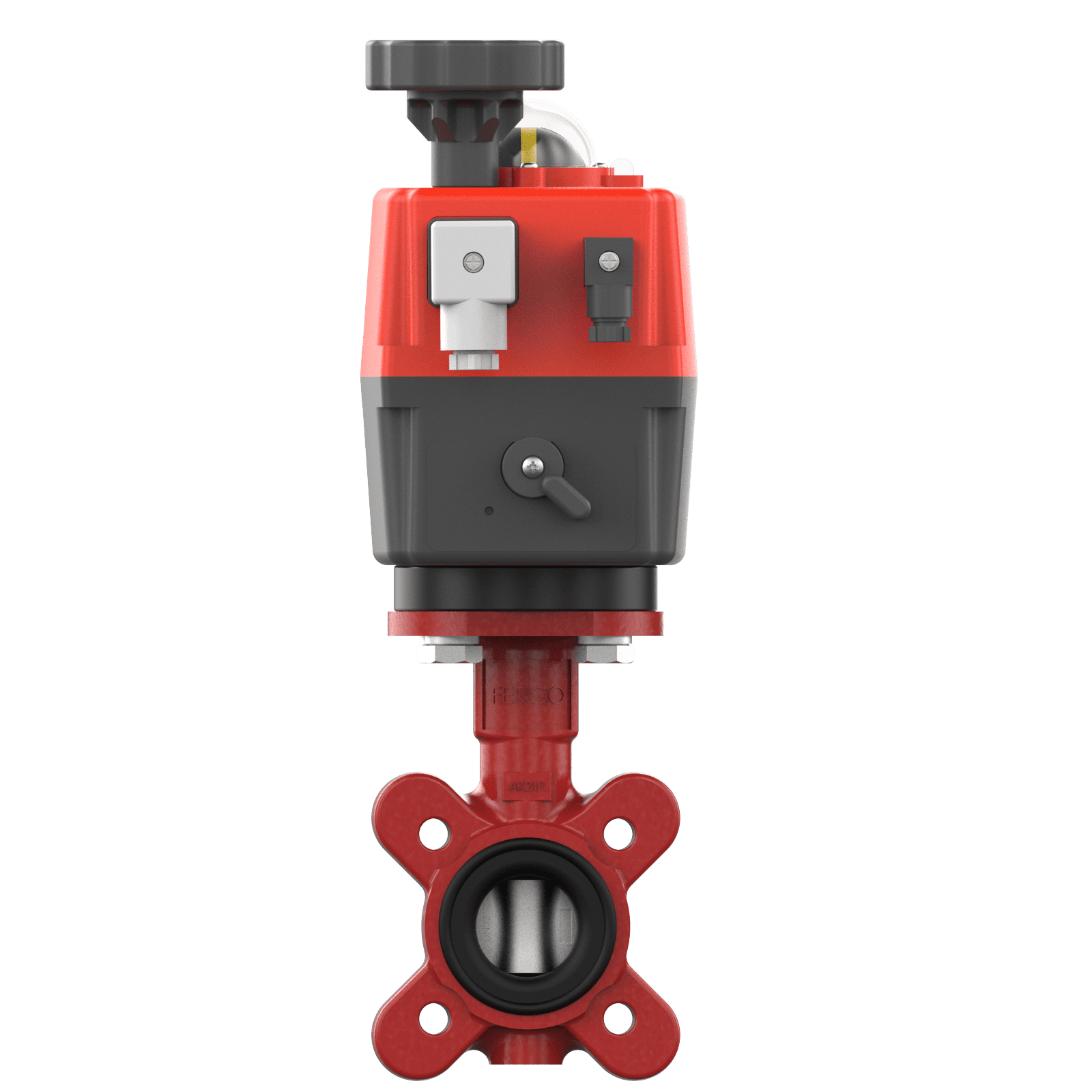

AK211 Butterfly valve DN 32 PN16 FPM/FKM (Viton) electric actuator 24V - 230V - 240V
Product number 150-1629-07-EL
Price €361.02
€429.61 incl. VAT
Delivery Time: 2-7 Days
Available: In Stock
Contact
Support and advice at:
Mon-Fri, 8:00 a.m. - 5:00 p.m
Mon-Fri, 8:00 a.m. - 5:00 p.m
Payment Methods
Shipping Methods
Description
electric flanged butterfly valve DN 32, flanges PN10/16, body made of nodular cast iron GGG40, disc made of stainless steel 1.4408, seat ring made of FPM/FKM (Viton) with electric rotary actuator J4C-S20, running time (90°): 9s ± 10%, multi-voltage 24V -230V - 240V AC/DC
Nominal width : DN32 - 1 1/4'' inch
Running time (90°): 9s ± 10%
Connection : Flange PN10 , Flange PN16
Design : Lug
Body: Ductile Cast Iron (GGG40)
Face to Face length : EN558-1, Series 20
Sleeve material : FPM/FKM - (Viton)
Disc : Stainless steel
Temperature range : -5°C to +200°C
Actuation : Electric Actuator
Option: 24V, 230V, 240V
Availability: In Stock
Data sheet
Data sheet
3D-Model
Download 3D-Model
Skip product gallery
more products
AK211 Butterfly valve DN 32 PN16 FPM/FKM (Viton) double-acting pneumatic actuator
Product number
Copy to clipboard 150-1629-07-DA
Flanged butterfly valve DN 32 connection flanges PN10/16, body made of nodular cast iron GGG40, disc stainless steel 1.4408, seat ring made of FPM/FKM (Viton) with pneumatic quarter-turn actuator double-acting (DA)
Nominal width :
DN32 - 1 1/4'' inch
Design :
Lug
Connection :
Flange PN10
Connection :
Flange PN16
Body:
Ductile Cast Iron (GGG40)
Sleeve material :
FPM/FKM - (Viton)
Price €229.14
€272.68 incl. VAT Delivery Time: 2-7 Days
Available: In Stock
AK211 Butterfly valve DN 32 PN16 FPM/FKM (Viton) single-acting pneumatic actuator
Product number
Copy to clipboard 150-1629-07-SR
Flanged butterfly valve DN 32 Flanges PN10/16, body made of nodular cast iron GGG40, disc made of stainless steel 1.4408, seat ring made of FPM/FKM (Viton) with pneumatic quarter-turn actuator single-acting (SR)
Nominal width :
DN32 - 1 1/4'' inch
Design :
Lug
Connection :
Flange PN10
Connection :
Flange PN16
Body:
Ductile Cast Iron (GGG40)
Sleeve material :
FPM/FKM - (Viton)
Price €279.38
€332.46 incl. VAT Delivery Time: 2-7 Days
Available: In Stock
AK211 Butterfly valve DN 32 PN16 EPDM double-acting pneumatic actuator
Product number
Copy to clipboard 150-1621-07-DA
Flanged butterfly valve DN 32 connection PN10/16, body made of cast iron GGG40, disc made of stainless steel 1.4408, seat ring made of EPDM with pneumatic quarter turn actuator double acting
Nominal width :
DN32 - 1 1/4'' inch
Design :
Lug
Connection :
Flange PN10
Connection :
Flange PN16
Body:
Ductile Cast Iron (GGG40)
Face to Face length :
EN558-1, Series 20
Price €164.43
€195.67 incl. VAT Delivery Time: 2-7 Days
Available: In Stock
AK211 Butterfly valve DN 32 PN16 FPM (Viton) Hand lever
Product number
Copy to clipboard 150-1629-07
Lug/flanged butterfly valve DN 32, connection flanges PN10/16, body made of nodular cast iron GGG40, disc made of stainless steel 1.4408, seat ring made of FPM/FKM (VITON) with regulating lever (aluminium)
Nominal width :
DN32 - 1 1/4'' inch
Design :
Lug
Connection :
Flange PN10
Connection :
Flange PN16
Body:
Ductile Cast Iron (GGG40)
Sleeve material :
FPM/FKM - (Viton)
Price €129.30
€153.87 incl. VAT Delivery Time: 2-7 Days
Available: In Stock
