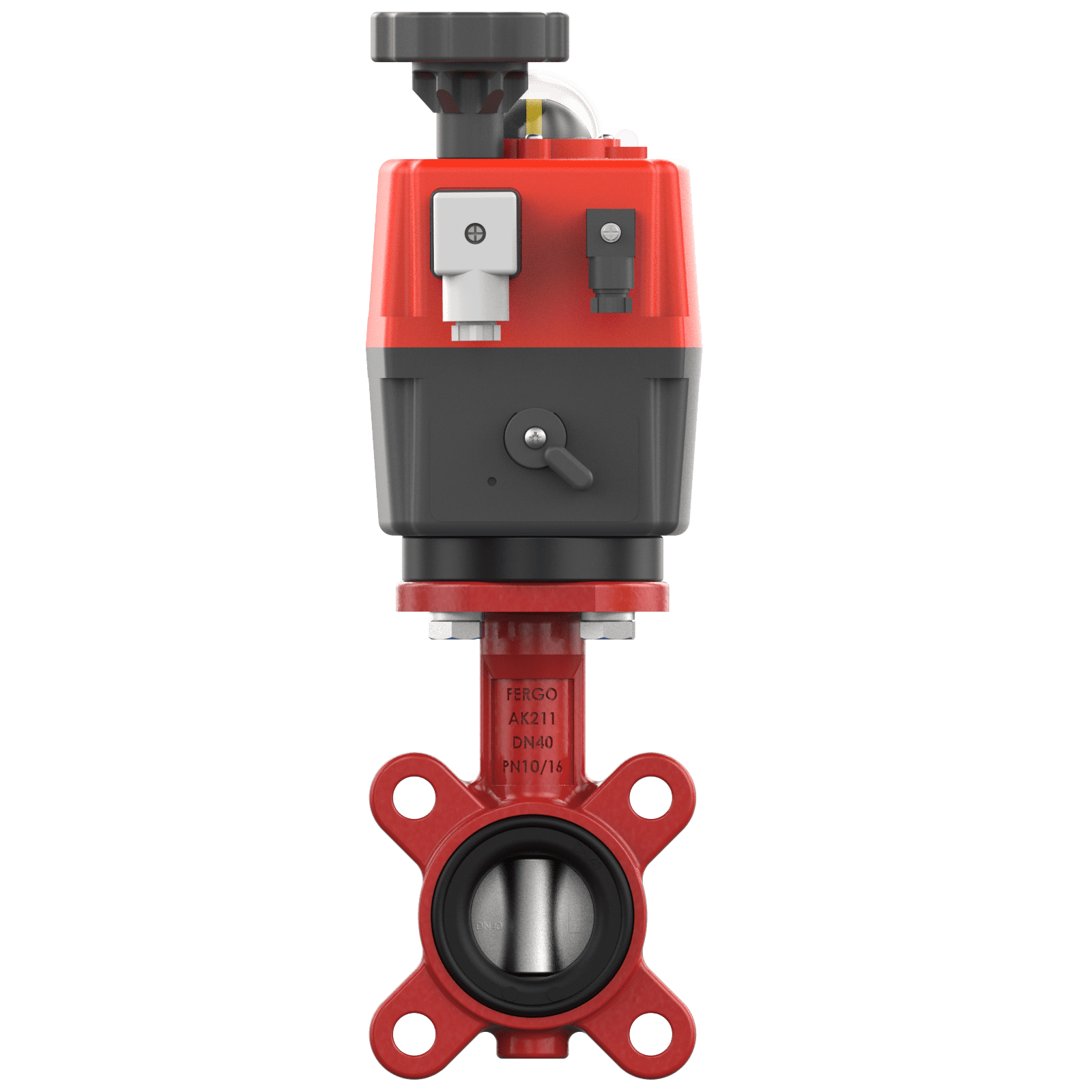

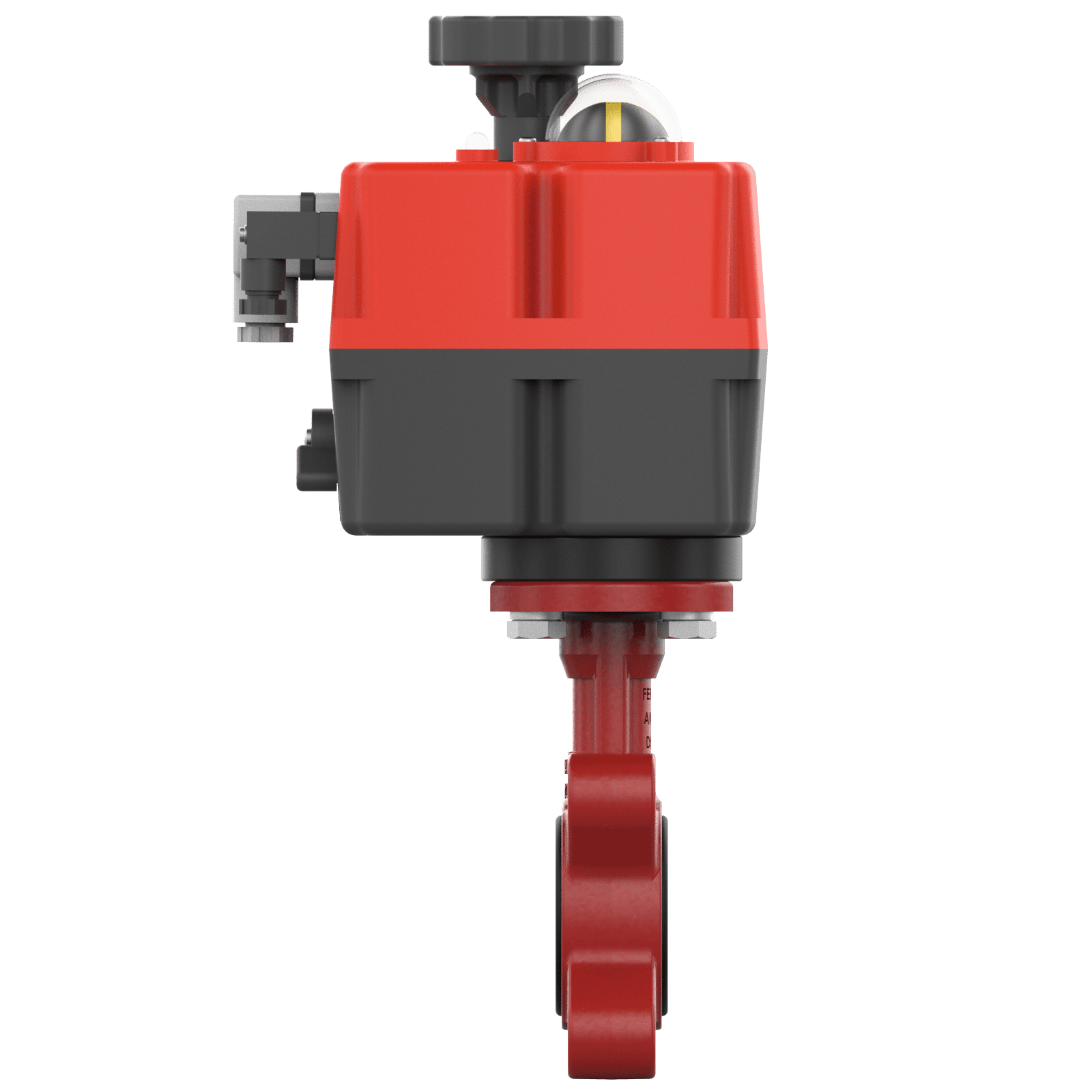

AK211 Butterfly valve DN 40 PN16 FPM/FKM electric actuator 24V - 230V - 240V
Product number 150-1629-08-EL
Price €361.02
€429.61 incl. VAT
Delivery Time: 2-7 Days
Available: In Stock
Contact
Support and advice at:
Mon-Fri, 8:00 a.m. - 5:00 p.m
Mon-Fri, 8:00 a.m. - 5:00 p.m
Payment Methods
Shipping Methods
Description
Flanged butterfly valve DN 40, flanges PN10/16, body made of nodular cast iron GGG40, disc made of stainless steel 1.4408, seat ring made of FPM/FKM (Viton) with electric rotary actuator J4C-S20, running time (90°): 9s ± 10%, multivoltage 24V -230V - 240V AC/DC
Nominal width : DN40 - 1 1/2'' inch
Running time (90°): 9s ± 10%
Connection : Flange PN10 , Flange PN16
Design : Lug
Body: Ductile Cast Iron (GGG40)
Face to Face length : EN558-1, Series 20
Sleeve material : FPM/FKM - (Viton)
Disc : Stainless steel
Temperature range : -5°C to +200°C
Actuation : Electric Actuator
Option: 24V, 230V, 240V
Availability: In Stock
Data sheet
Data sheet
3D-Model
Download 3D-Model
