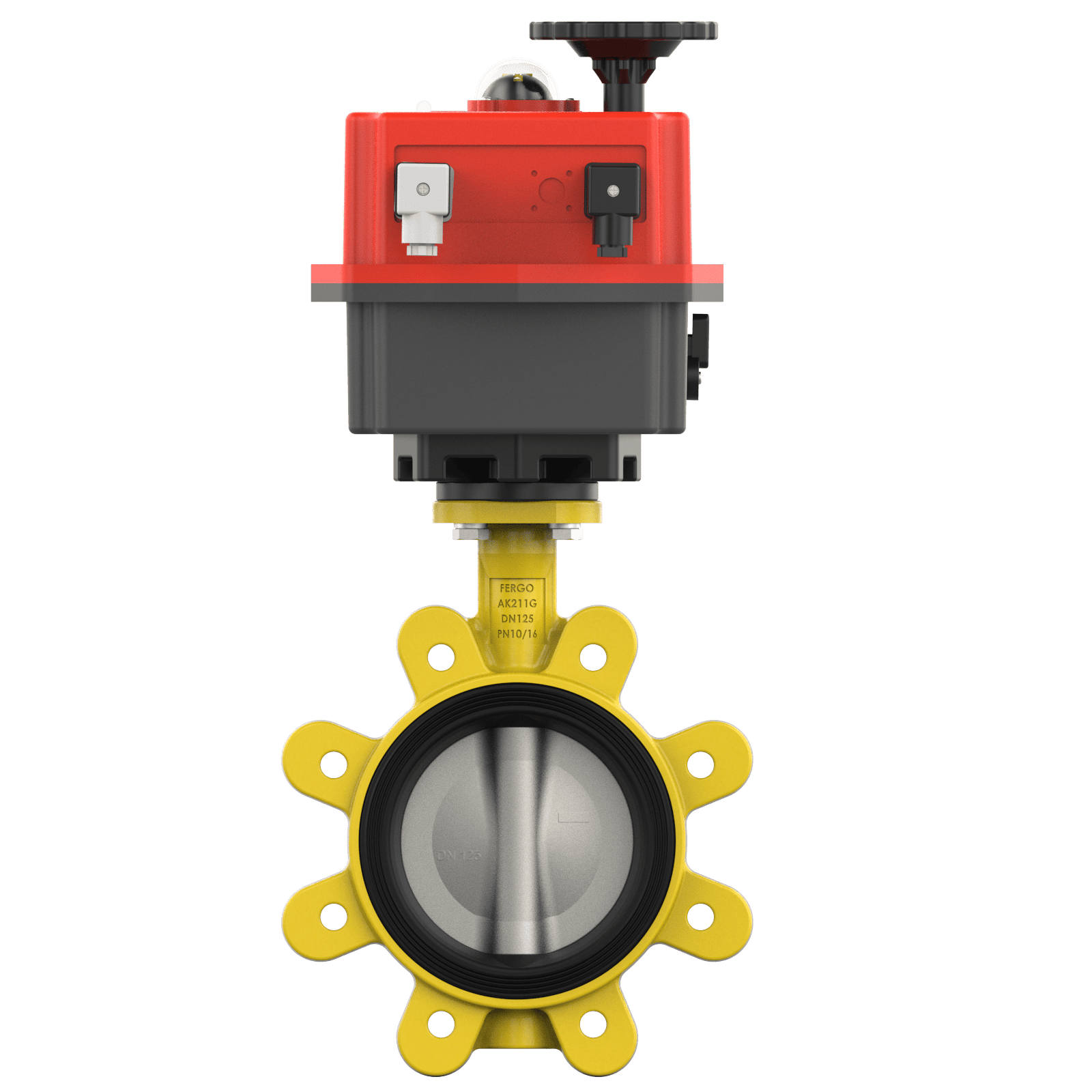

Electric gas butterfly valve - flanged butterfly valve DN 125 gas connection flanges PN10/16, body made of nodular cast iron GGG40, disc made of stainless steel 1.4408, seat ring made of NBR, approval: DVGW for gas with electric actuator J4C-S140, running time (90°): 34s ± 10%, Multivoltage 24V -230V - 240V AC/DC
Nominal width :DN125 - 5'' inch
Running time (90°):34s ± 10%
Connection :Flange PN10 , Flange PN16
Design :Lug
Body:Ductile Cast Iron (GGG40)
Face to Face length :EN558-1, Series 20
Sleeve material :NBR
Disc :Stainless steel
Temperature range :-20°C to +90°C , Für DVGW Gas Zulassung -20°C bis +60°C
Gas butterfly valve - flanged butterfly valve DN 125 gas Connection flange PN10/16, body made of spheroidal graphite cast iron GGG40, disc made of stainless steel 1.4408, seat ring made of NBR, approval DVGW Gas with pneumatic quarter turn actuator double acting
Gas butterfly valve - flanged butterfly valve DN 125 gasconnection flanges PN10/16, body made of cast iron GGG40, disc made of stainless steel 1.4408, seat ring made of NBR, approval: DVGW gas with pneumatic single-acting quarter-turn actuator
Wafer type butterfly valve DN 125 connection PN6/10/16/150lbs, body made of nodular cast iron GGG40, disc made of stainless steel 1.4408, seat ring made of NBR, approval: DVGW Gas with electric actuator J4C-S140, running time (90°): 34s ± 10%, multivoltage 24V - 230V - 240V AC/DC
Wafer type butterfly valve DN 125, connection PN6/10/16/150lbs, body made of nodular cast iron GGG40, disc made of stainless steel 1.4408, seat ring made of NBR, approval DVGW Gas with pneumatic quarter-turn actuator double acting
