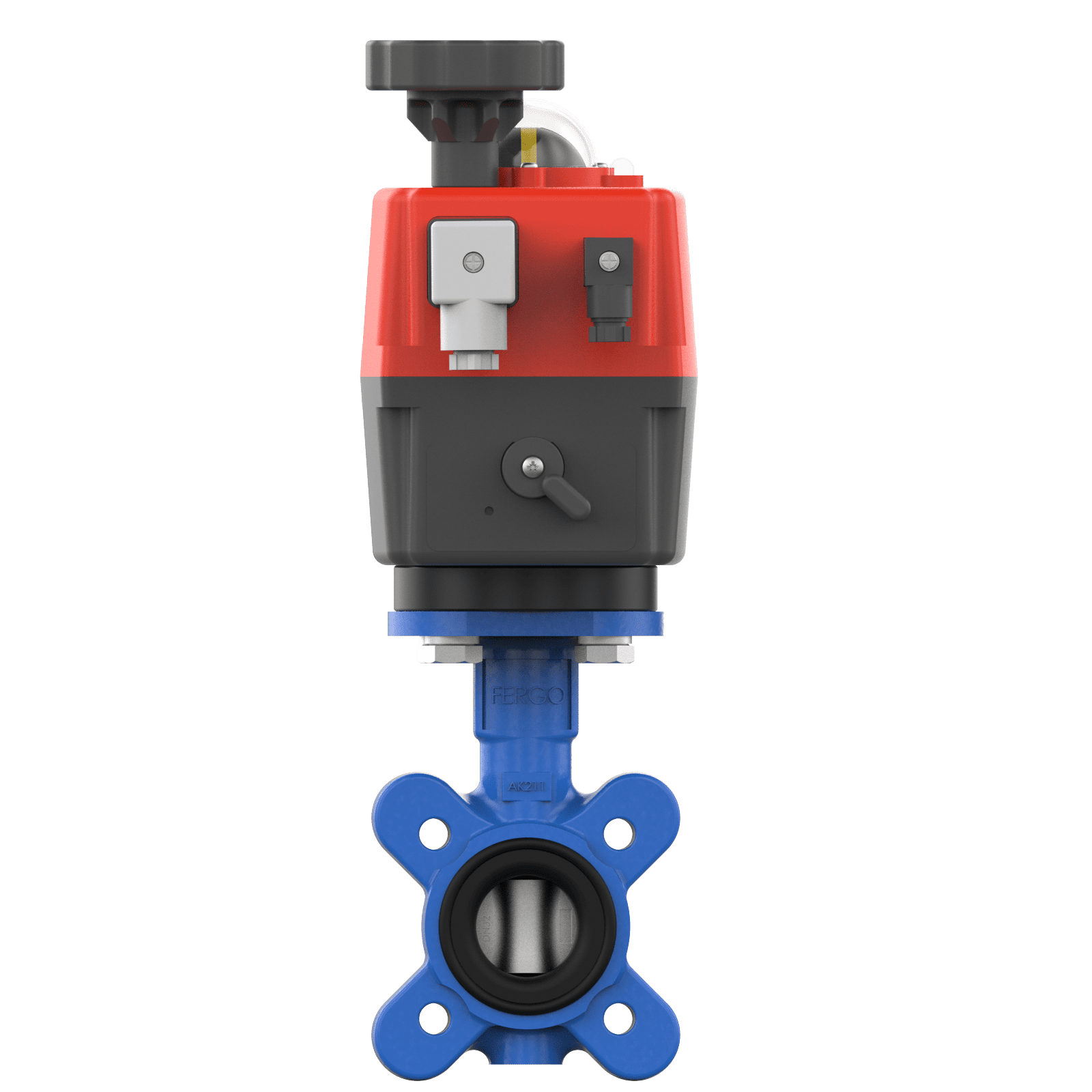

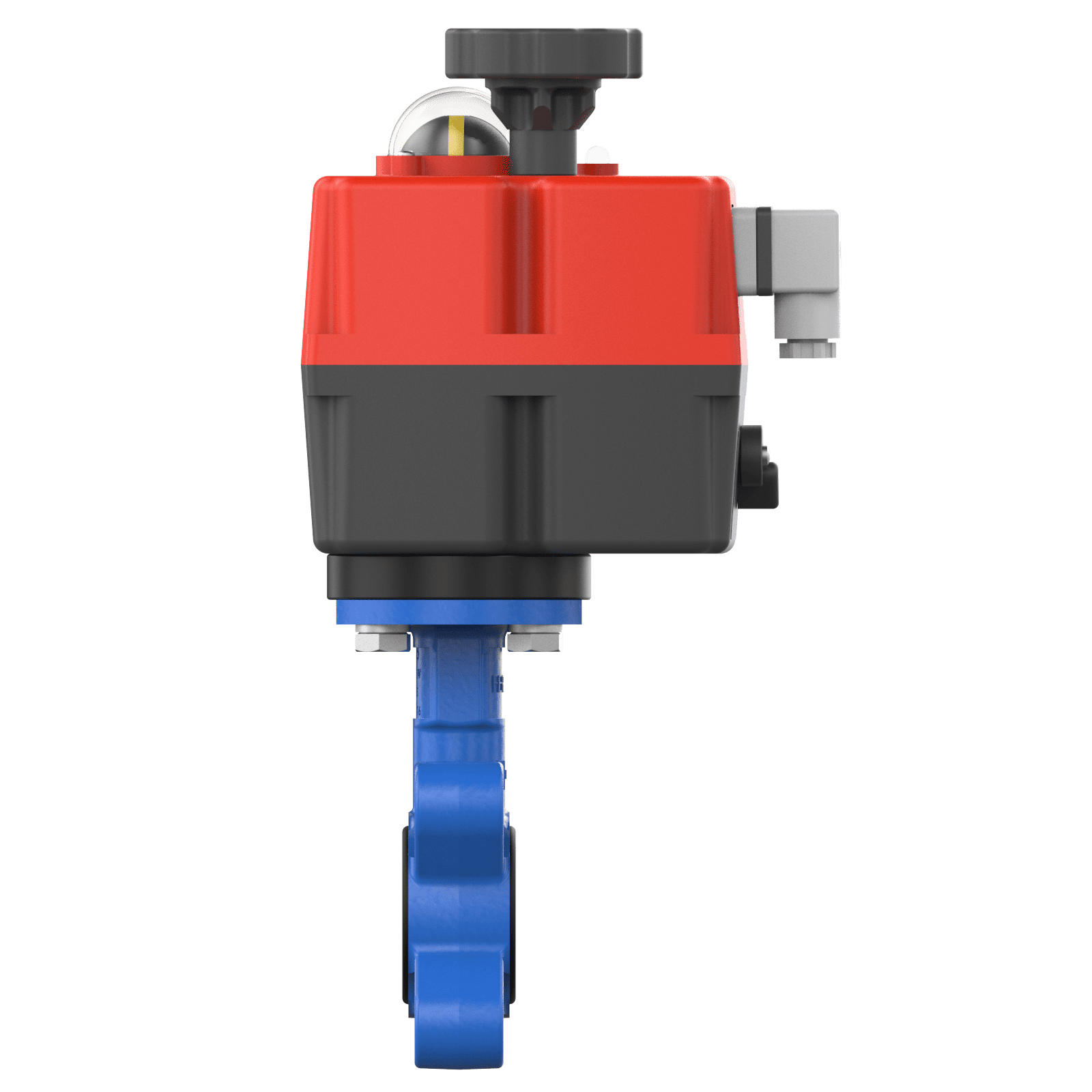

Drinking water butterfly valve DN25 electric
Drinking water butterfly valve DN25 electric
Drinking water butterfly valve DN25 electric
Absperrklappe Elektrisch
Drinking water butterfly valve DN25 electric
Drinking water butterfly valve DN25 electric
Drinking water butterfly valve DN25 electric
Absperrklappe Elektrisch

AK211W Butterfly valve DN 25 PN10/16 DVGW drinking water EPDM electric actuator 24V - 230V -240V

Product number 150-1625-06-EL
Price €314.46
€374.21 incl. VAT
Delivery Time: 2-7 Days
Available: In Stock
3D Model
Contact
Support and advice at:
Mon-Fri, 8:00 a.m. - 5:00 p.m
+49 (0) 21 31 / 15 39 28-0
Payment Methods
Paid in advance
Invoice
Shipping Methods
Standard-DHL
Express Forwarding-The shipping cost will be charged separately.
self pickup
Flanged butterfly valve DN 25 for water with electric actuator, connection flanges PN10/16, body made of nodular cast iron GGG40, disc made of stainless steel 1.4408, seat ring made of EPDM, approval: DVGW for drinking water with electric quarter-turn actuator  J4C-S20, running time (90°): 9s ± 10%, Multivoltag 24V -230V - 240V AC/DC
Nominal width : DN25 - 1'' inch
Running time (90°): 9s ± 10%
Connection : Flange PN10 , Flange PN16
Design : Lug
Body: Ductile Cast Iron (GGG40)
Face to Face length : EN558-1, Series 20
Sleeve material : EPDM
Disc : Stainless steel
Temperature range : -20°C to +95°C
Actuation : Electric Actuator
Certificate : DVGW Drinking water
Option: 24V, 230V, 240V
Availability: In Stock
Download 3D-Model
3D-Model
Skip product gallery

more products

Drinking water butterfly valve DN25 pneumatic
AK211W Butterfly valve DN 25 PN16 DVGW drinking water EPDM single-acting pneumatic actuator
Product number
Copy to clipboard 150-1625-06-SR
Flanged butterfly valve DN 25 for water, Connection flanges PN10/16, body made of spheroidal graphite cast iron GGG40, disc made of stainless steel 1.4408, seat ring made of EPDM, DVGW for drinking water with pneumatic quarter-turn actuator single-acting (Normally closed)
Nominal width :
DN25 - 1'' inch
Connection :
Flange PN10
Connection :
Flange PN16
Design :
Lug
Body:
Ductile Cast Iron (GGG40)
Face to Face length :
EN558-1, Series 20
Price €232.82
€277.06 incl. VAT
Delivery Time: 2-7 Days
Available: In Stock
Drinking water butterfly valve DN25 pneumatic
AK211W Butterfly valve DN 25 PN16 DVGW drinking water EPDM double-acting pneumatic actuator
Product number
Copy to clipboard 150-1625-06-DA
Flanged butterfly valve DN 25 connection flanges PN10/16, body made of nodular cast iron GGG40, disc made of stainless steel 1.4408, seat ring made of EPDM, DVGW approval for drinking water with pneumatic quarter-turn actuator double-acting
Nominal width :
DN25 - 1'' inch
Connection :
Flange PN10
Connection :
Flange PN16
Design :
Lug
Body:
Ductile Cast Iron (GGG40)
Face to Face length :
EN558-1, Series 20
Price €182.58
€217.27 incl. VAT
Delivery Time: 2-7 Days
Available: In Stock
Absperrklappe Trinkwasser Wasser DVGW Zulassung
AK211W Butterfly valve DN 25 PN10/16 DVGW drinking water EPDM Hand lever
Product number
Copy to clipboard 150-1625-06
Flanged butterfly valve DN 25 for water, Connection flanges PN10/16, body made of cast iron GGG40, disc made of stainless steel 1.4408, seat ring made of EPDM, approval: DVGW for drinking water with hand lever (Al)
Nominal width :
DN25 - 1'' inch
Connection :
Flange PN10
Connection :
Flange PN16
Design :
Lug
Body:
Ductile Cast Iron (GGG40)
Face to Face length :
EN558-1, Series 20
Price €82.74
€98.46 incl. VAT
Delivery Time: 2-7 Days
Available: In Stock
Drinking water butterfly valve DN25 electric
AK210W Butterfly valve DN 25 PN16 DVGW drinking water EPDM electric quarter-turn actuator 24V - 230V - 240V
Product number
Copy to clipboard 150-1605-06-EL
Wafer type butterfly valve DN 25 connection PN10/16, body made of nodular cast iron GGG40, disc made of stainless steel 1.4408, seat ring made of EPDM, DVGW drinking water with electric quarter-turn actuator J4C-S20, running time (90°): 9s ± 10%, multivoltage 24V - 230V - 240V AC/DC
Nominal width :
DN25 - 1'' inch
Running time (90°):
9s ± 10%
Design :
Wafer
Connection :
Flange PN10
Connection :
Flange PN16
Body:
Ductile Cast Iron (GGG40)
Price €298.58
€355.31 incl. VAT
Delivery Time: 2-7 Days
Available: In Stock
Drinking water butterfly valve DN25
AK210W Butterfly valve DN 25 PN16 DVGW drinking water EPDM double-acting pneumatic actuator
Product number
Copy to clipboard 150-1605-06-DA
Wafer type butterfly valve DN 25, connection PN10/16, body made of nodular cast iron GGG40, disc made of stainless steel 1.4408, seat ring made of EPDM, approval: DVGW drinking water with pneumatic quarter-turn actuator double-acting
Nominal width :
DN25 - 1'' inch
Design :
Wafer
Connection :
Flange PN10
Connection :
Flange PN16
Body:
Ductile Cast Iron (GGG40)
Face to Face length :
EN558-1, Series 20
Price €166.70
€198.37 incl. VAT
Delivery Time: 2-7 Days
Available: In Stock
