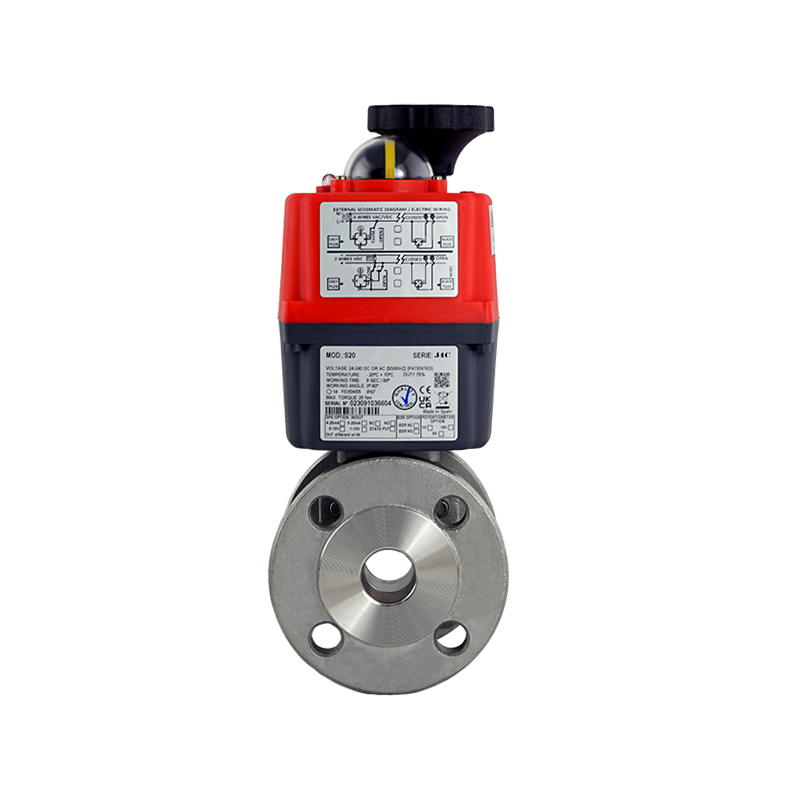

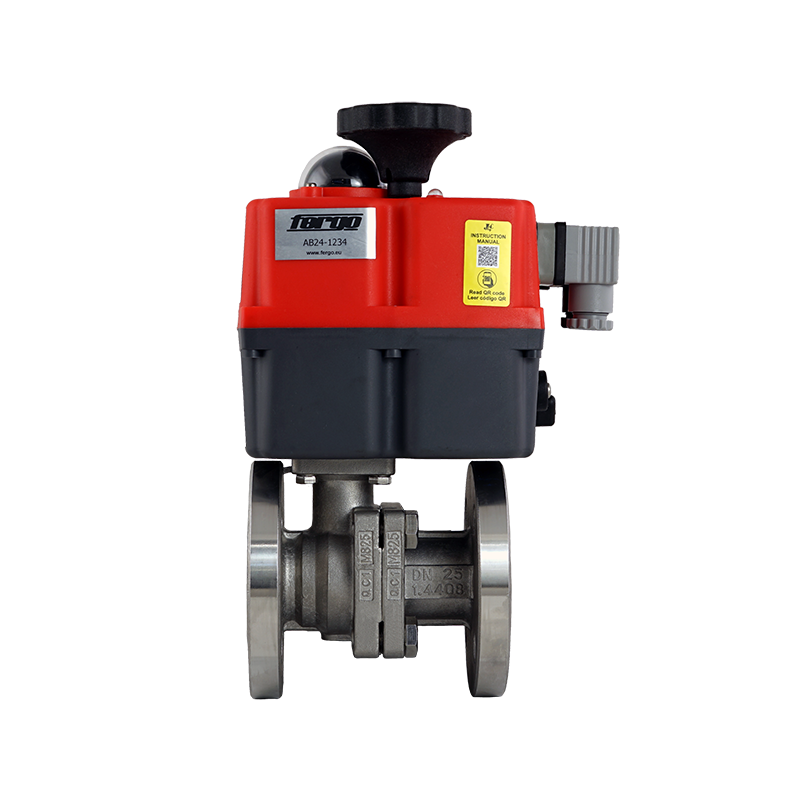

2-way flanged ball valve made of stainless steel with DVGW approval for drinking water in accordance with DIN EN 1074-2, operated with an electric actuator. Ideal for application in water/drinking water lines. The ball valve has a flange connection according to PN10/16 & face-to-face length according to EN 558-1, R27. The valve body and ball are made of stainless steel (material no.: 1.4408). Full bore with PTFE seal. Silicon-free. Actuated by an electric multi-voltage actuator (24V - 230V - 240V AC/DC) with a run time (90°): 58s ± 10%. The actuator can be upgraded to a digital positioner (0-10V or 4-20mA) or a battery fail-safe pack (NC/NO) upon request.
Nominal width :DN100 - 4'' inch
Connection :Flange PN10 , Flange PN16
Design :2 ways
Body:Stainless Steel
Material ball :Stainless steel (1.4408)
Ball seal:PTFE
Face to Face length :EN 558-1-Reihe 27
Temperature range :Depending on the operating pressure
Actuation : Electric Actuator
Max. Operating pressure :16 bar
Certificate :DVGW Drinking water , TA Luft
Option:24V, 230V, 240V, Full passage
Availability:In Stock
Tender
Ball valve KH123W, PN16-DN100 with EL actuator • Flanged ends acc. to PN16 • Face to face acc. to EN 558-1, R27 • Full port • 2- piece body • Sealing system W • Body: 1.4408 • Ball: 1.4408 • Ball seat: PTFE • Stem seal: EPDM/PTFE • Body seal: PTFE • Temperature range: depending on working pressure • Direct mounting actuator ISO 5211 • Max. working pressure: 16 bar • DVGW drinking water approval acc. to DIN EN 1074-2 Operation: Electric part-turn actuator Type: FG-J4C-S300 • Multivoltage system: 24 - 240V AC/DC, 50/60Hz • Runtime (90°): 58s ± 10% • Ambient temperature: -20°C to +70°C • Housing: polyamide (PA6) • Limit switches: 2x SPST NO 5A 125V AC / 3A 250V AC • Manual override • Electronic torque limiter • Automatic interior heater
