KH155 Flanged ball valve DN 15 1/2'' inch ANSI 150 Stainless steel Hand lever

J4C S140 electric actuatorElectric quarter-turn actuator suitable for mounting flange ISO 5211 F07/F10, voltage 24V - 230V - 240V (AC)/24V to 135V (DC), running time (90°)- 34s ± 10%, working torque 140Nm, duty cycle 75%, Connection VKT22mm (other stem sizes and biplane option at request), housing polyamide (PA6), protection class IP67

Electric part-turn actuator J4C S35 BSR with integrated battery pack (NC or NO: please specify in case of order), suitable for mounting flange ISO 5211 F03/F04/F05, Multi-voltage-system 24V -230V- 240V AC/DC, 50/60Hz, running time (90°): 9s ± 10%, working torque: 35Nm, duty cycle 75%, Connection VKT14mm (other stem sizes and bi-plane options available on request), Housing Polyamide (PA6), protection class IP67

J4C S140 DPS Positioner Fail-Safe BSR Battery NC J4C S140 with positioner 4-20mA [0-10V on request] with fail-safe BSR battery pack (function NC) electric rotary actuator, suitable for mounting flange ISO 5211 F07/F10, multi - voltage 24V - 230V to 240V (AC)/24V to 135V(DC), running time(90°) 34s ± 10%, working torque: 85Nm, duty cycle 75%, mounting VKT22mm (other square sizes and dual flat option available on request)

J4C S55 Electric quarter-turn actuator J4C S55 Electric quarter-turn actuator suitable for mounting flange ISO 5211 F05/F07, voltage 24V - 230V - 240V (AC)/24 to 135V (DC), running time (90°)- 13s ± 10%, working torque 55Nm, duty cycle 75%, connection 17mm (other stem sizes and biplane option at request), housing polyamide (PA6), protection class IP67

 Limit switch box EB300-PE2M02 with mechnical micro switchesFlexible box made of polyamide with polycarbonate cover, Mounting bracket and shaft made of stainless steel, Voltage: 12-250 V AC/DC, Operating current: 0,1-10A with protection IP67

 Limit switch box EB300-PE2I02-7 with inductive switchesFlexible box made of polyamide with polycarbonate cover, Mounting bracket and shaft made of stainless steel, Voltage: 10-30 V DC, Operating current: 0-200mA with protection IP67 and yellow LED indicator

Limit switch box EB300-PP2I02 with inductive switchesFlexible box made of polyamide with polycarbonate cover, Mounting bracket and shaft made of polyamid, 2x inductive proximity switches P+F, NBB2-V3-E2 (PNP N.O.), LED Indicator, Max. current: 0-100mA with protection IP67

 Limit switch box EB300-PP2M02 with mechnical micro switchesFlexible box made of polyamide with polycarbonate cover, Mounting bracket and shaft made of polyamide, Voltage: 12-250 V AC/DC, Operating current: 0,1-10A with protection IP67

Limit switch box EB300-VP2M02-551-ED with mechanical switches for Ex ZoneFlexible and conductive vestamide box, Mounting bracket and shaft made of polyamide, 2x mechanical Ex d switches Bartec 07-1511-1030, 3-wire NO/NC for Ex zone 1+2 and 21+22, protection IP66 with Silver contact and many other options

Limit switch box EB300-VP2M02-551-ED with inductive sensors for Ex ZoneFlexible and conductive vestamide box, Mounting bracket and shaft made of polyamide, 2x inductive slot type sensors P+F, SJ3,5-N, 2-wire Ex ia for Ex zone 1 and 21, protection IP67 with many other options

Vacuum breaker 1/2" female thread in brassThe VB14 venting valve is a vacuum breaker for general applications in condensing vapour or liquid systems with 1/2" screwed BSP system connection and 1/8" screwed BSP air inlet connection. The housing is made of brass (Cu Zn 39 Pb3) and the valve ball is made of stainless steel (Z 100 CD 17). The vacuum breakers with an opening pressure Δp of 6 mbar are designed for vertical installation with a system connection at bottom.

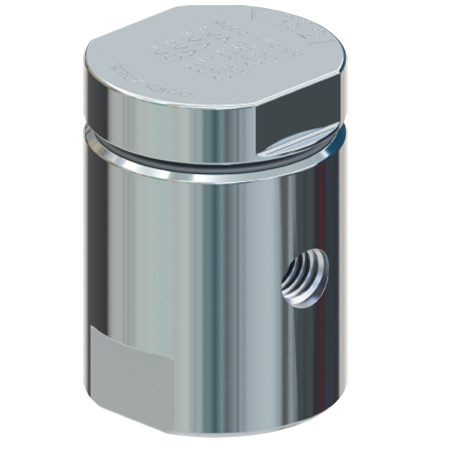

Vacuum breaker 1/2" female thread in stainless steelThe VB21 venting valve is a vacuum breaker for general applications in condensing vapour or liquid systems with 1/2" screwed BSP system connection and 1/8" screwed BSP air inlet connection. The housing is made of stainless steel AISI 303 and the valve ball is made of stainless steel AISI 440 C. The vacuum breakers with an opening pressure Δp of 6 mbar are designed for vertical installation with a system connection at bottom.

Inductive sensor OPEN/CLOSE Namur EN 60947-5-6, explosion-proof Ex ia IIB T6, 0...90° swivel angle, switching function in end position damped or undamped, switching capacity max. 34 mW, nominal voltage 8 V/DC, max. 16V/ DC, output current damped <1 mA, undamped >3 mA, plastic housing (Lexan 143), antistatic coating, degree of protection IP67, temperature range: -20°C to +70°C, ATEX marking: II 2 G Ex ia IIB T6

Inductive sensor OPEN/CLOSED, 0...90° swivel angle, switching function plus switching, PNP NO contact, in end position damped or undamped, voltage range 10 - 30V/DC, current range 100 mA, housing plastic (Lexan 143), antistatic coated, protection class IP67, temperature range: -20°C to +70°C

Inductive sensor IFT 206 for pneumatic knife-gate valveSpecial feature Increased switching distance, Application Regular cleaning processes, IFB3004BBPKG/M/V4A/6M/WH, Metal thread M12x1, Switching distance 4mm; [b] flush mountable, Electrical version PNP, Output function: normally open, Operating voltage: 10-36 V DC, Ambient temperature 0°C to 100°C, Protection class: IP 68; IP 69K; ( COP ), Connection cable. UL approval

IFM IN5334 Dual sensor with actuator connectionHousing: rectangular, Switching distance: 4mm, Non-flush mount, Electrical version: PNP, Operating voltage: 10...36 V DC, current consumption: 20mA (36V), output function: 2x NO contacts, plug connection, Rd24x1/8, 6-pin + M12 plug connection 5-pin, mounting according to ISO 5211 (VDI/VDE 3845), material: PBT, PC display: 2x LED, yellow (switching status), ambient temperature: -25°C...+80°C, protection class: IP67
