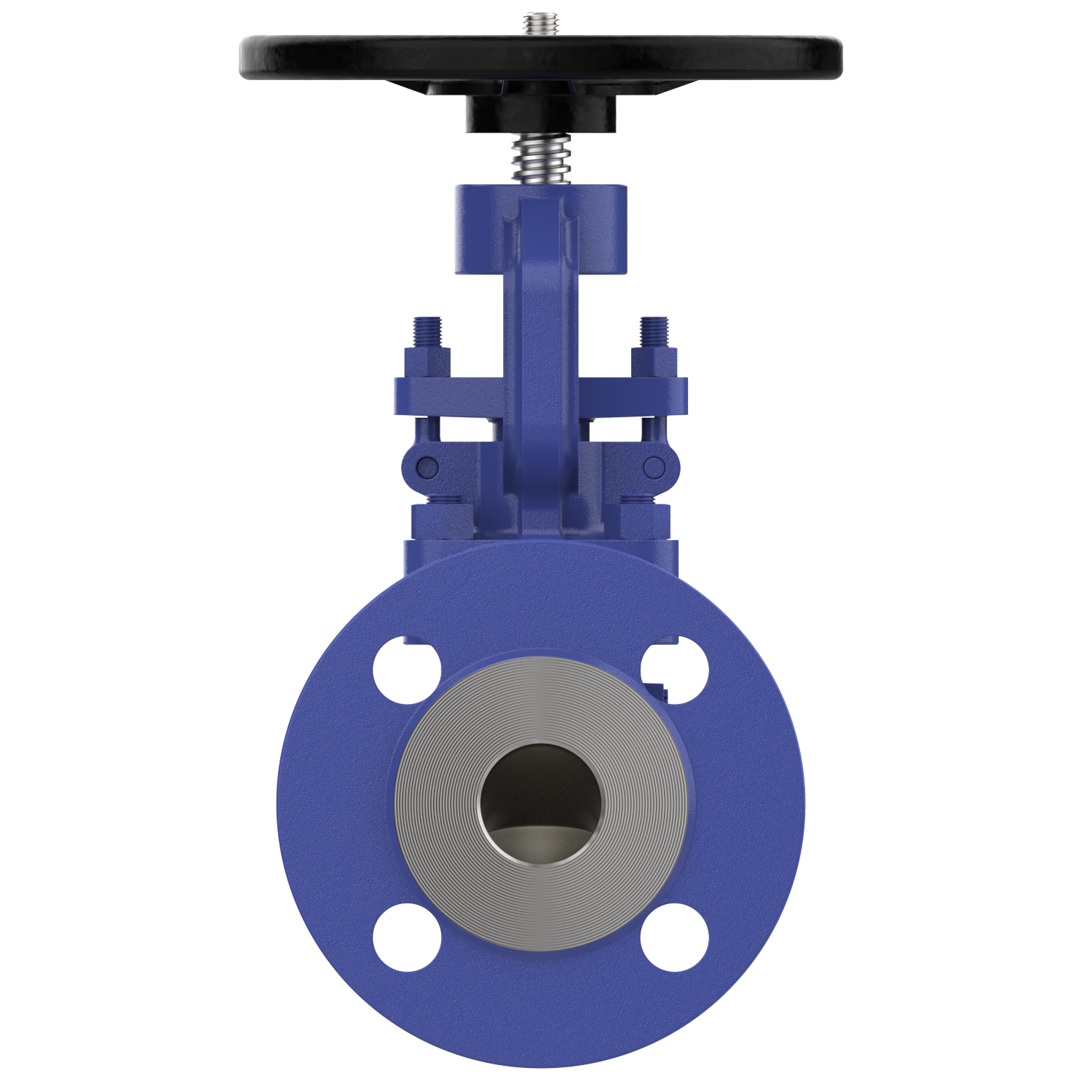

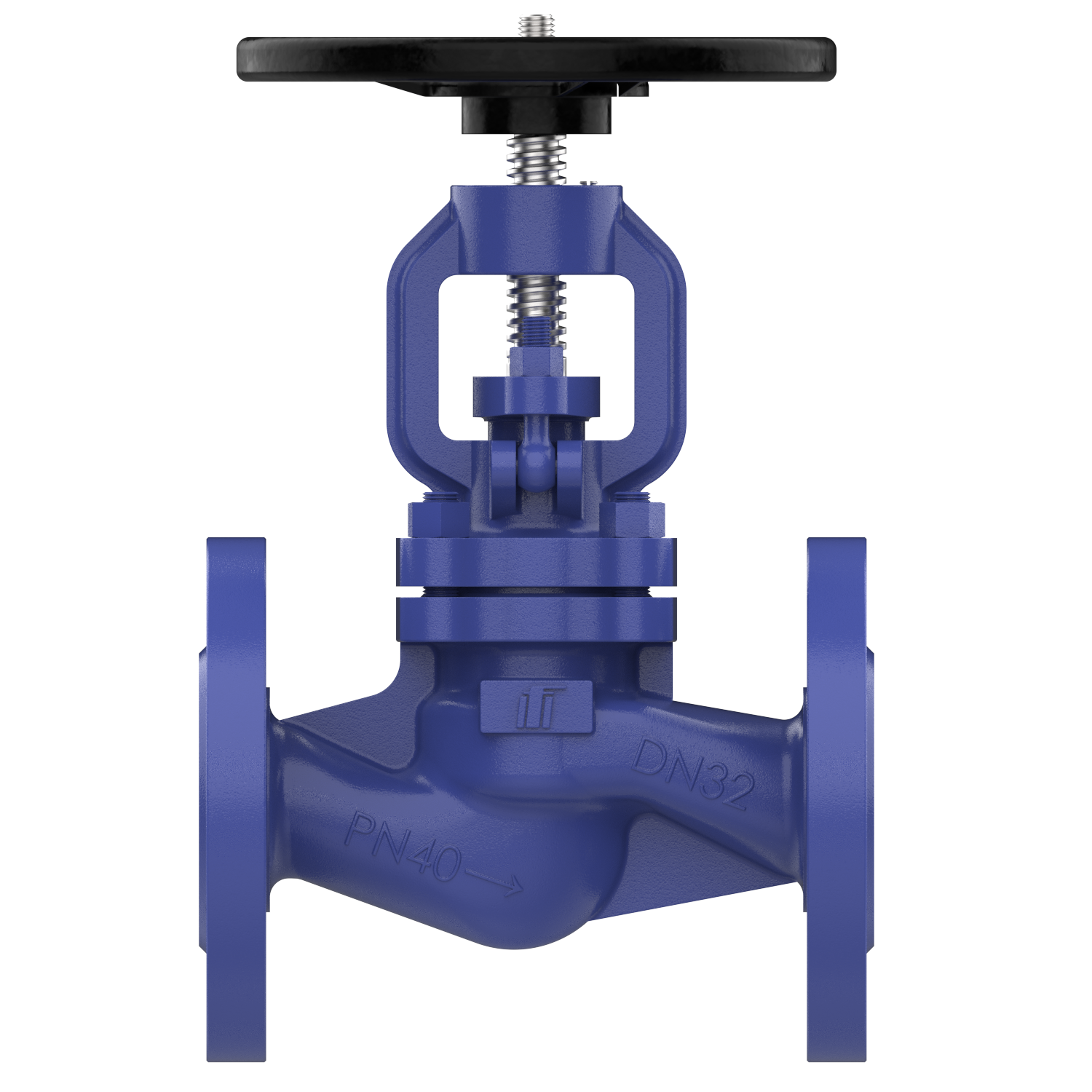

VG430 flanged shut-off valve DN 32 PN16/40 steel TA-air handwheel
Product number 200-4061-07
Price €102.00
€121.38 incl. VAT
Delivery Time: 2-7 Days
Available: In Stock
Contact
Support and advice at:
Mon-Fri, 8:00 a.m. - 5:00 p.m
Mon-Fri, 8:00 a.m. - 5:00 p.m
Payment Methods
Shipping Methods
Description
Flanged shut-off valve DN 32
Flange connection acc. to EN 1092-1 form B1, Face to face acc. to EN 558-1, series 1, Body & cover made of steel 1.0619, Packing gland graphite (TA Luft), Body gasket: SS304 + graphite (TA Luft), Max. Operating temperature: 400°C, Actuation handwheel (rising stem), Approval AD2000, NACE, PED2014/68/EU, TA Luft
Nominal width : DN32 - 1 1/4'' inch
Plate cone: 2Cr13
Spindle : 2Cr13
Connection : Flange PN10 , Flange PN16 , Flange PN25 , Flange PN40
Body: Steel
Bushing/Seats : Graphite
Cover : steel (1.0619)
Face to Face length : EN 558-1 series 1
Temperature range : Max. to 400°C
Actuation : Handwheel (rising stem)
Max. Operating pressure : 40 bar
Certificate : TA Luft, AD2000, PED2014/68/EU
Availability: In Stock
Data sheet
Data sheet
