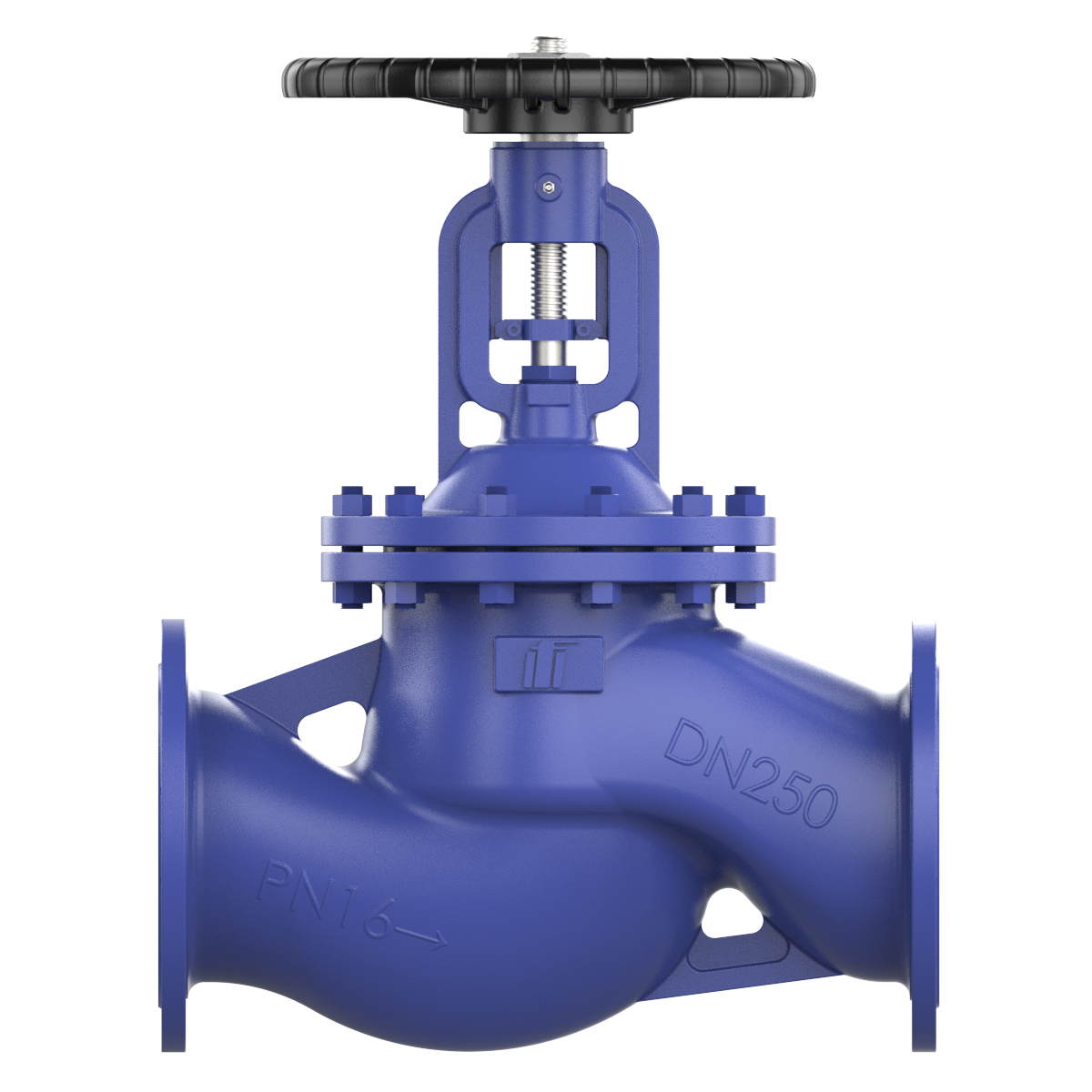

Bellow sealed globe valve DN 250 with guided disc designed for industrial piping systems and process plants provides reliable shut-off performance where low-emission sealing is essential. Flanged ends PN16 acc. to EN 1092-1, Form B1 and face-to-face dimensions in accordance with EN 558-1, Series 1 allow straightforward integration into new or existing piping systems. Manufactured in accordance with EN 13709, the valve features an OS&Y design with a bolted bonnet and a guided disc that provides accurate disc guidance for stable and reliable operation. Stainless steel bellows and body gasket comply with TA-Luft acc. to ISO 15848-1, ensuring long-term leak-tight sealing. Stellited seat enhances wear resistance and contributes to an extended service life, while the handwheel provides smooth and precise valve operation.
Execution :Bellows Valve
Faltenbalg:SS304
Nominal width :DN250 - 10'' inch
Plate cone:A105 + 13Cr
Spindle :2Cr13
Valve seat :stellited
Connection :Flange PN16
Body:Steel
Bushing/Seats :Graphite
Face to Face length :EN 558-1 series 1
Temperature range :Max. to 400°C
Actuation :Handwheel
Max. Operating pressure :16 bar
Certificate :TA Luft, AD2000
Tender
Bellows sealed globe valve VG440, PN16-DN250 • OS&Y, bolted bonnet, guided disc • Design acc. to EN 13709 • Flanged ends acc. to EN 1092-1, Form B1 • Face to face acc. to EN 558-1, Series 1 • Body & Bonnet: 1.0619 • Disc: A105 +13Cr facing • Stem: 2Cr13 • Seat: stellited • Bellows: SS304 (TA Luft acc. to ISO 15848-1) • Gasket: SS304 + Graphite (TA Luft acc. to ISO 15848-1) • Bolting: ASTM A194 2H/ASTM A193 B7 • Max. working pressure: 16 bar • Max. working temperature: 400°C • Operation: handwheel (rising stem) • AD2000, NACE, PED2014/68/EU, TA-Luft
