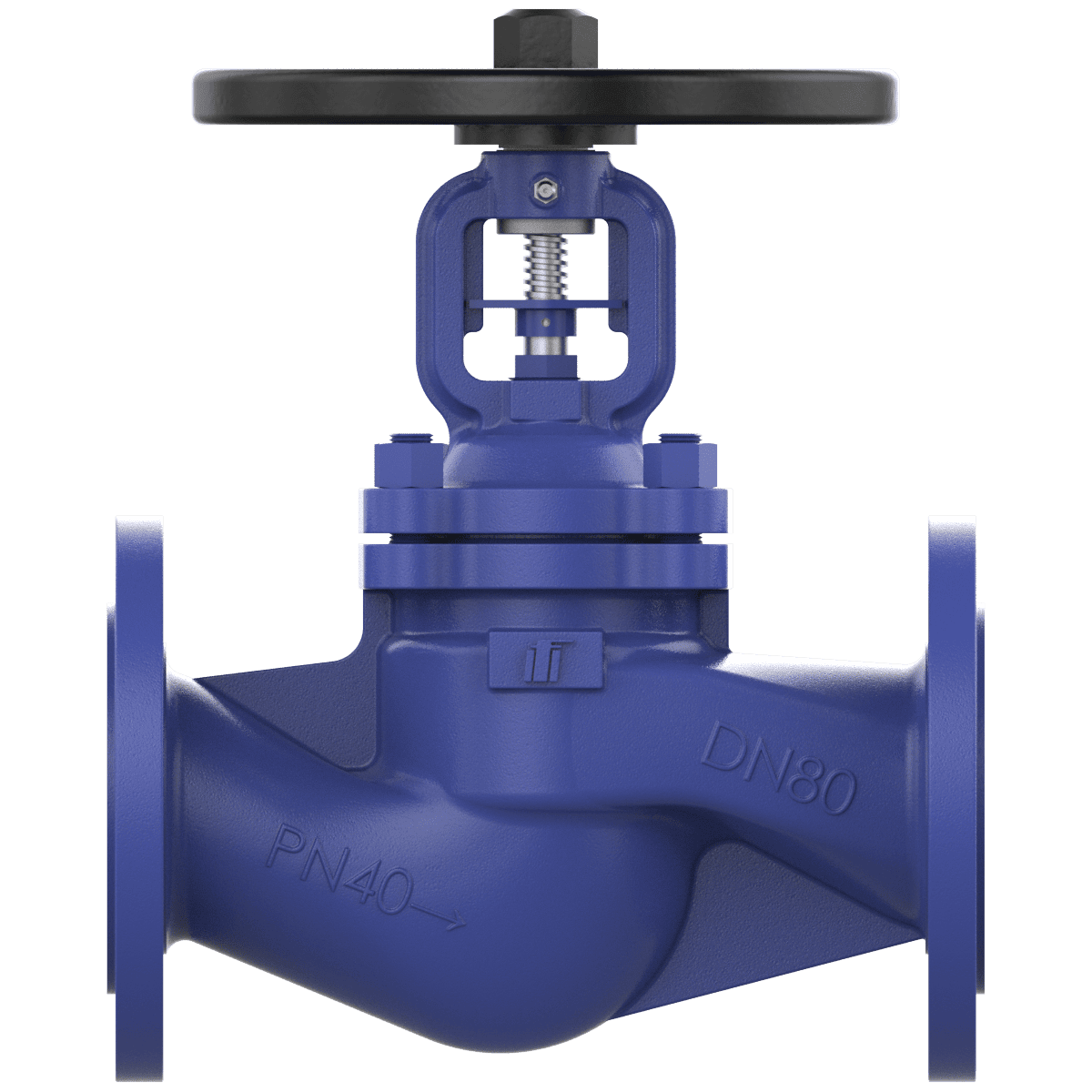

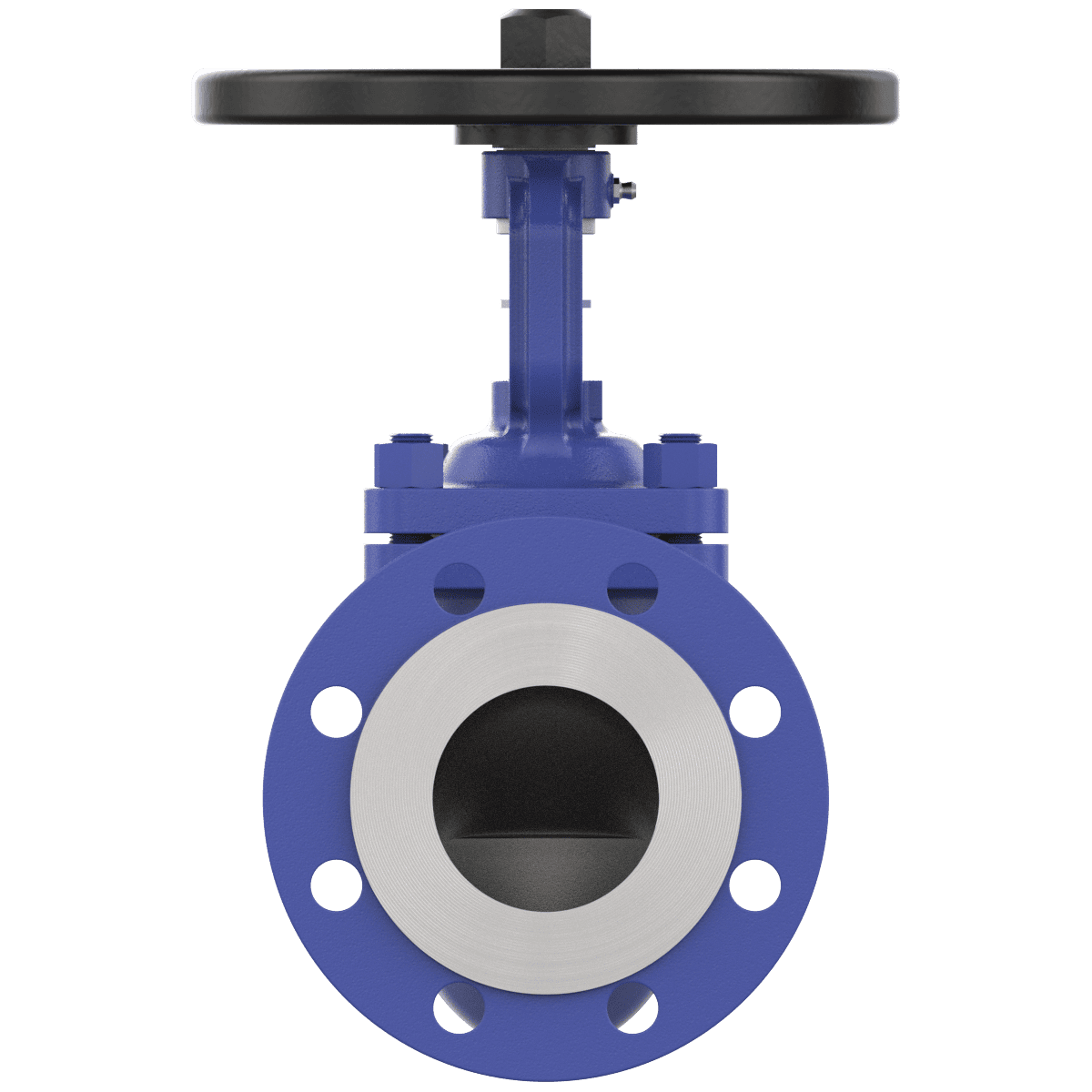

Bellow sealed globe valve DN 80 designed for industrial piping systems and process plants provides reliable shut-off performance where low-emission sealing is essential. Flanged ends PN10/16/40 acc. to EN 1092-1, Form B1 and face-to-face dimensions in accordance with EN 558-1, Series 1 allow straightforward integration into new or existing piping systems. Built in accordance with EN 13709, the valve features an OS&Y design with a bolted bonnet for dependable and maintenance-friendly operation. Stainless steel bellows and body gasket comply with TA-Luft acc. to ISO 15848-1, ensuring long-term leak-tight sealing. Stellited seat enhances wear resistance and contributes to an extended service life, while the handwheel provides smooth and precise valve operation.
Stainless steel flanged shut-off valve DN 65 PN40Flange connection acc. to EN 1092-1 form B1, Face to face acc. to EN 558-1, series 1, Body & cover stainless steel 1.4408 (CF8M), Gland packing graphite (TA Luft), Body gasket: SS304 + graphite (TA Luft), Max. Operating temperature: 400°C, Actuation handwheel (rising stem), Approval AD2000, NACE, PED2014/68/EU, TA Luft
Globe valve DN 25 PN40 with gland packing sealFlange connection PN40 acc. to EN 1092-1, face-to-face length acc. to EN 558-1, series 1, tightness class A acc. to EN 12266-1, body made of steel 1.0619 (GP240GH), plug made of 1.4021 (X20Cr13), valve seat made of stainless steel, gland packing graphite, body gasket: SS304 + graphite, nominal pressure 40bar, Max. Temperature: +450°C (depending on operating pressure), Kvs: 11 m³/h, Actuation handwheel (EN-GJS-400-18-LT)
Flanged shut-off valve DN 65Flange connection acc. to EN 1092-1 form B1, Face to face acc. to EN 558-1, series 1, Body & cover made of steel 1.0619, Packing gland graphite (TA Luft), Body gasket: SS304 + graphite (TA Luft), Max. Operating temperature: 400°C, Actuation handwheel (rising stem), Approval AD2000, NACE, PED2014/68/EU, TA Luft
Stainless steel flanged shut-off valve DN 25 PN40Flange connection acc. to EN 1092-1 form B1, Face to face acc. to EN 558-1, series 1, Body & cover stainless steel 1.4408 (CF8M), Gland packing graphite (TA Luft), Body gasket: SS304 + graphite (TA Luft), Max. Operating temperature: 400°C, Actuation handwheel (rising stem), Approval AD2000, NACE, PED2014/68/EU, TA Luft
Bellow valve 1/2" ANSI Class300 with handwheel Bellows sealed globe valve with flanged connection acc. to ASME B16.5, Class300, RF and face-to-face dimension acc. to ASME B16.10. The carbon steel body (WCB/1.0619) and the graphite packing make the valve suitable for demanding applications. Welded multi-layer bellows, hardfaced plug and seat and 360° freely rotating conical plug are key advantages of these bellow valves. The bellows valve is tested and certified in accordance with the TA Luft standard and EN ISO 15848-1.
Bellow valve 3/4" ANSI Class600 with handwheel Bellows sealed globe valve with flanged connection acc. to ASME B16.5, Class600, RF and face-to-face dimension acc. to ASME B16.10. The carbon steel body (WCB/1.0619) and the graphite packing make the valve suitable for demanding applications. Welded multi-layer bellows, stelllited plug and seat and 360° freely rotating conical plug are key advantages of these bellow valves. The bellows valve is tested and certified in accordance with the TA Luft standard and EN ISO 15848-1.
Bellow valve DN 150 PN40 stainless steel with handwheel Bellow sealed globe valve in stainless steel for flange connection PN40 acc. to EN 1092-1, Form B and face-to-face dimension acc. to EN 558-1, Series 1. The 1.4408 (CF8M) body and the graphite packing ensure a high degree of application reliability in these valves. Welded multilayer bellows, stellited plugs and seats and 360° freely rotating conical plugs are key properties of these bellow valves. The valves are tested and certified in accordance with TA Luft / EN ISO 15848-1.
