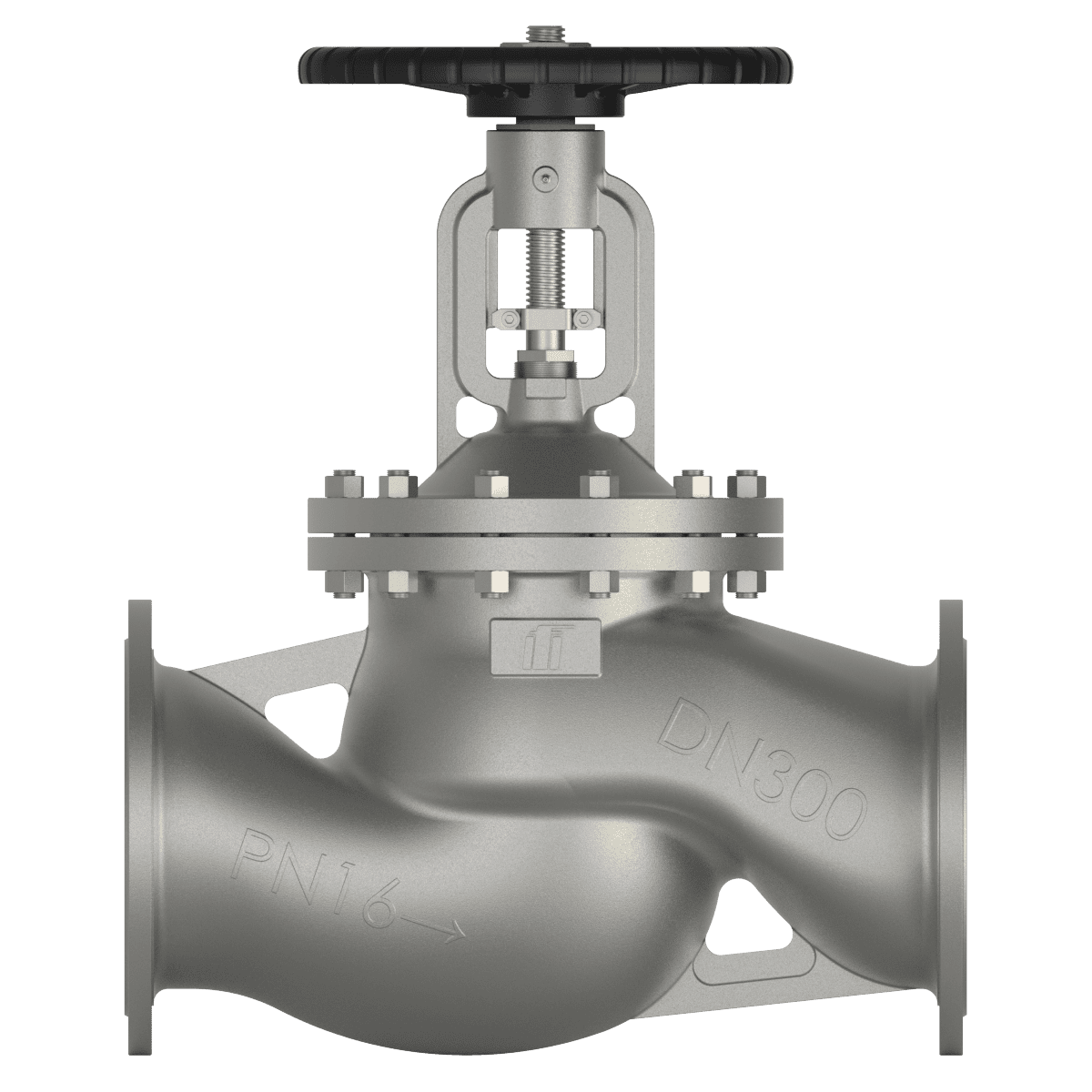

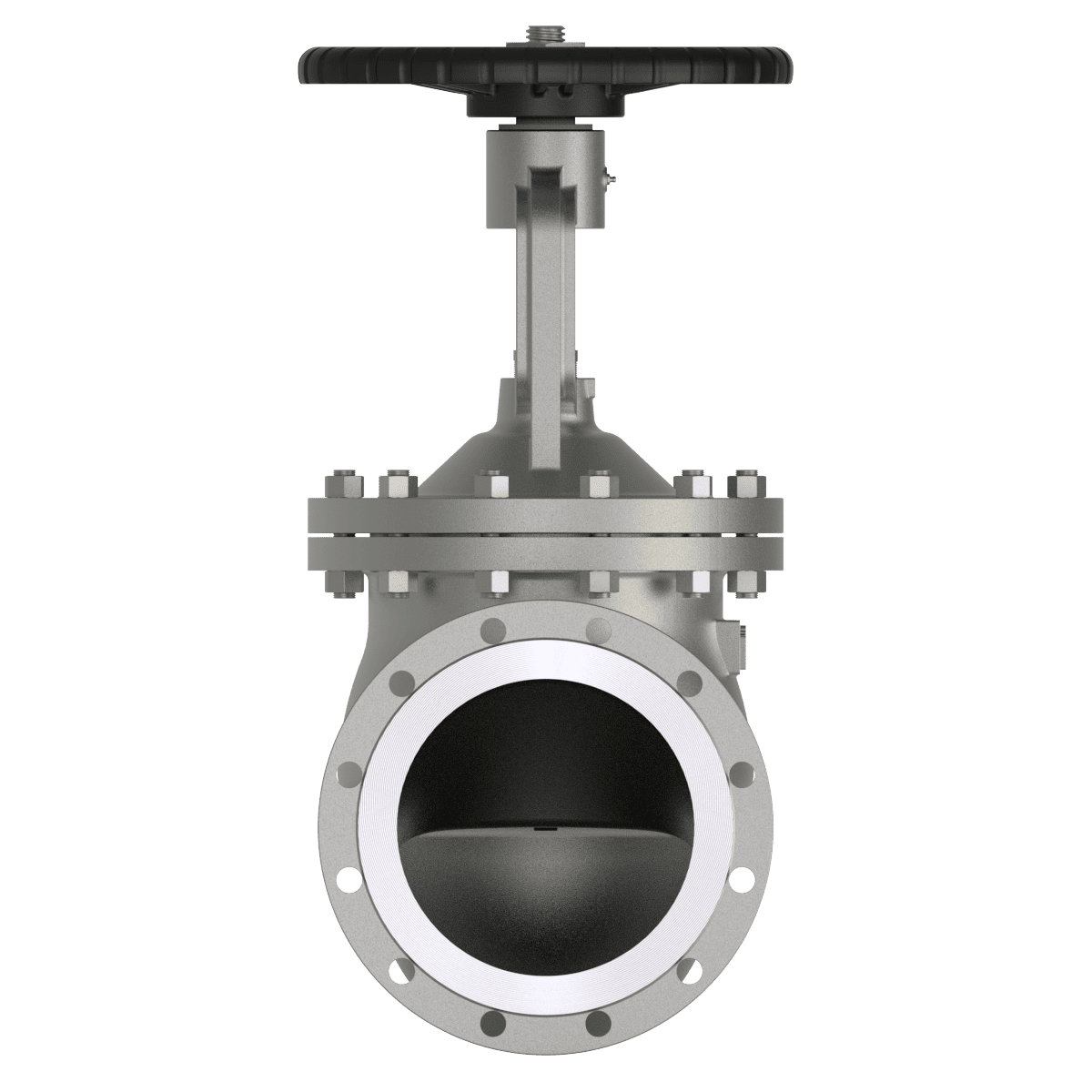

Stainless steel bellows sealed globe valve DN300 PN16
Stainless steel bellows sealed globe valve DN300 PN16
Stainless steel bellows sealed globe valve DN300 PN16
VG460 Bellow sealed valve DN 300 PN16 stainless steel
Stainless steel bellows sealed globe valve DN300 PN16
Stainless steel bellows sealed globe valve DN300 PN16
Stainless steel bellows sealed globe valve DN300 PN16

VG460 Bellow sealed valve DN 300 PN16 stainless steel

Product number 200-4085-20
Price €10,953.60
€13,034.67 incl. VAT
Delivery Time: On request
Available: In Stock
3D Model

Bellow sealed globe valve DN 300 in stainless steel with guided disc is designed for demanding industrial and process applications where corrosion resistance and low-emission sealing are essential. Flanged ends PN16 acc. to EN 1092-1, Form B1 and face-to-face dimensions in accordance with EN 558-1, Series 1 allow easy integration into new or existing piping systems. Manufactured in accordance with EN 13709, the valve features an OS&Y design with a bolted bonnet and a guided disc that provides accurate disc guidance for stable and reliable operation. Bellows and body gasket comply with TA-Luft acc. to ISO 15848-1, ensuring long-term leak-tight sealing. Stellited seat enhances wear resistance and contributes to an extended service life, while the handwheel enables smooth and precise valve operation.

Execution : Bellows Valve
Faltenbalg: 1.4571 (AISI 316Ti)
Nominal width : DN300 - 12'' inch
Plate cone: F316
Spindle : F316
Valve seat : stellited
Connection : Flange PN16
Body: Stainless Steel
Bushing/Seats : Graphite
Face to Face length : EN 558-1 series 1
Temperature range : Max. to 400°C
Actuation : Handwheel
Max. Operating pressure : 16 bar
Certificate : TA Luft, AD2000

Bellows sealed globe valve VG460, PN16-DN300
• OS&Y, bolted bonnet, guided disc
• Design acc. to EN 13709
• Flanged ends acc. to EN 1092-1, Form B1
• Face to face acc. to EN 558-1, Series 1
• Body & Bonnet: 1.4408
• Disc: F316
• Stem: F316
• Seat: stellited
• Bellows: SS316Ti (TA Luft acc. to ISO 15848-1)
• Gasket: SS316 + Graphite (TA Luft acc. to ISO 15848-1)
• Bolting: ASTM A194 8M/ASTM A193 B8M
• Max. working pressure: 16 bar
• Max. working temperature: 400°C
• Operation: handwheel (rising stem)
• AD2000, NACE, PED2014/68/EU, TA-Luft

Download 3D-Model
3D-Model
