3-way ball valve 1 inch made of brass, type T bore

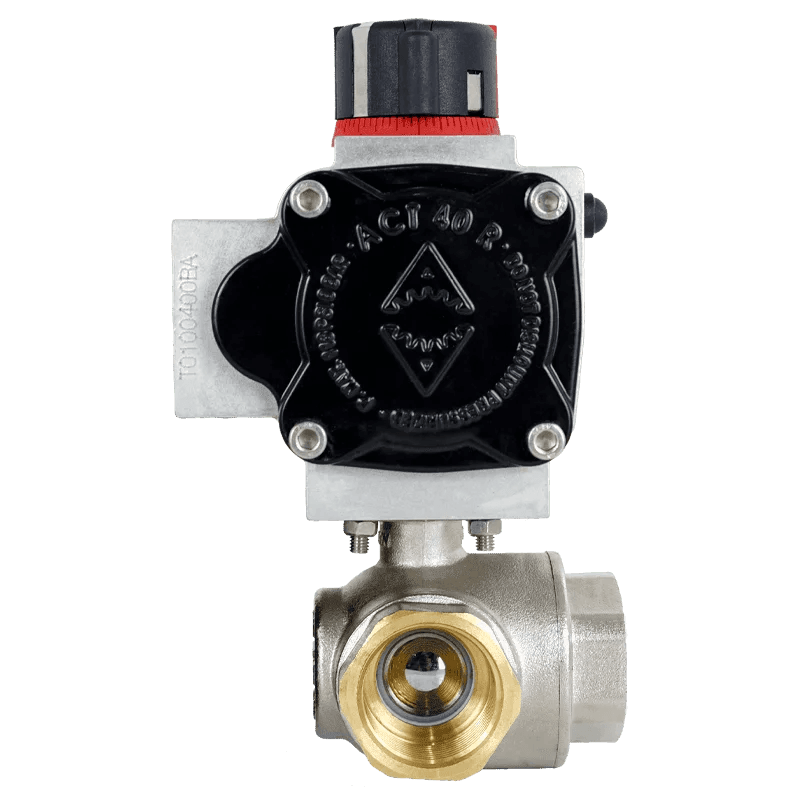

Internal thread (BSP) acc. to ISO 228-1 F-F-F, body made of brass-nickel plated, ball made of brass-chrome plated, ball seal PTFE, stem seal PTFE, medium temp. (min./max.) -20°C to +150°C, max operating pressure: 25 bar with double-acting pneumatic actuator.
3-way ball valve 1 inch made of brassType T bore, internal thread (BSP) acc. to ISO 228-1 F-F-F, body made of brass-nickel plated, ball made of brass-chrome plated, ball seal PTFE, stem seal PTFE, medium temp. (min./max.) -20°C to +150°C, max. operating pressure: 25 bar, actuation hand lever.
3-way ball valve 1 inch stainless steel T bore T bore design, reduced bore, internal thread acc. to ISO 7-1 (EN 10226-1), body & ball made of 1.4408 stainless steel, blow-out proof stem and antistatic device, seal made of PTFE + 15% GF, Operating temperature -25°C to +180°C, Max. Operating pressure: 63 bar, Hand lever.
3-way ball valve 1 inch made of brassType L bore, internal thread (BSP) acc. to ISO 228-1 F-F-F, body made of brass-nickel plated, ball made of brass-chrome plated, ball seal PTFE, stem seal PTFE, medium temp. (min./max.) -20°C to +150°C, max. operating pressure: 25 bar, actuation hand lever.
Brass 3-way ball valve 1 inch, type L bore, female thread acc. to ISO 228 F-F-F, body made of brass, nickel plated, ball made of brass, hard chrome plated, seal PTFE, seal shaft Viton, medium temp. (min./max.) -10°C to +120°C Not suitable for steam, Max. operating pressure 45 bar, Manual lever operation
3-way ball valve 1 inch stainless steel L bore L bore design, reduced bore, internal thread acc. to ISO 7-1 (EN 10226-1), body & ball made of 1.4408 stainless steel, blow-out proof stem and antistatic device, seal made of PTFE + 15% GF, Operating temperature -25°C to +180°C, Max. Operating pressure: 63 bar, Hand lever.
Brass 3-way ball valve 1 inch, type T bore, internal thread acc. to ISO 228 F-F-F, body made of brass, nickel-plated, ball made of brass, hard-chrome plated, seal PTFE, seal shaft: Viton, medium temp. (min./max.): -10°C to +120°C Not suitable for steam, Max. Max. operating pressure: 45 bar, Manual lever operation
3-way ball valve 1 inch brassType L bore, internal thread (BSP) acc. to ISO 228-1 F-F-F, body brass-nickel plated, ball brass-chrome plated, ball seal PTFE, stem seal PTFE, medium temp. -20°C up to +150°C, max. operating pressure 25 bar. Max. operating pressure 25 bar, Actuation: electric (J4C S20) rotary actuator, Running time(90°) 9s ± 10%, 24V - 230V - 240V AC/DC 50/60HZ
Three-way ball valve 1 inch electric T-bore design, reduced bore, internal thread acc. to ISO 7-1 (EN 10226-1), body & ball made of 1.4408, gasket PTFE + 15% GF, Operating temperature -25°C to +180°C, Max. Operating pressure: 63 bar, Actuation: electric (J4C S20). Operating pressure: 63 bar, Actuation: electric actuator (J4C S20), Running time (90°) 9s ± 10%, 24V - 230V - 240V AC/DC 50/60HZ

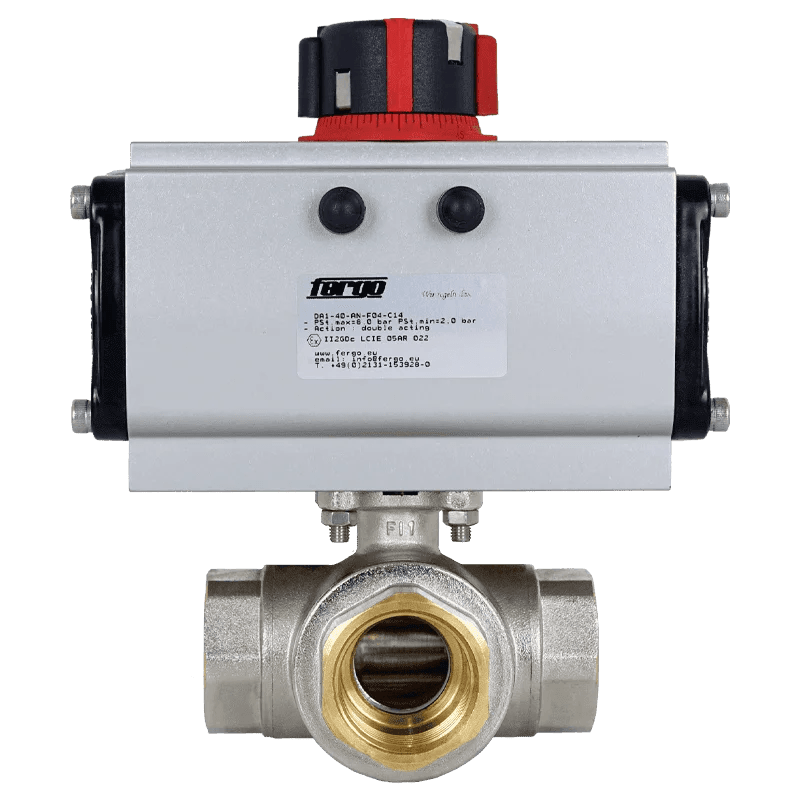

Three-way Ball valve 1 inch pneumaticT-bore design, reduced bore, internal thread to ISO 7-1 (EN 10226-1), body & ball made of 1.4408, ball seal: PTFE + 15% GF, Operating temperature -25°C to +180°C, Max. operating pressure: 63 bar, Actuation double-acting pneumatic actuator
Three-way ball valve 1 inch pneumaticT-bore design, reduced bore, internal thread acc. to ISO 7-1 (EN 10226-1), body & ball made of 1.4408, ball seal: PTFE + 15% GF, Operating temperature -25°C to +180°C, Max. Operating pressure: 63 bar, Actuation Pneumatic single acting actuator (Normally closed)
Three-way ball valve 1 inch pneumaticType L-bore, reduced bore, internal thread acc. to ISO 7-1 (EN 10226-1), body & ball made of 1.4408, seal ball: PTFE + 15% GF, Operating temperature -25°C to +180°C, Max. operating pressure: 63 bar, Actuation double-acting pneumatic actuator
3-way ball valve 1 inch pneumatic actuatorL-bore design, reduced bore, internal thread acc. to ISO 7-1 (EN 10226-1), body & ball made of 1.4408, gasket made of PTFE + 15% GF, Operating temperature -25°C to +180°C, Max. Operating pressure: 63 bar, Actuation Pneumatic single-acting actuator (Normally closed).
3-way ball valve 1 inch electricType L-bore, reduced bore, internal thread acc. to ISO 7-1 (EN 10226-1), body & ball made of 1.4408, seal ball: PTFE + 15% GF, Operating temperature -25°C to +180°C, Max. operating pressure: 63 bar, Actuation: electrical (J4C S35), Running time(90°) 9s ± 10%, 24V - 230V - 240V AC/DC 50/60HZ
