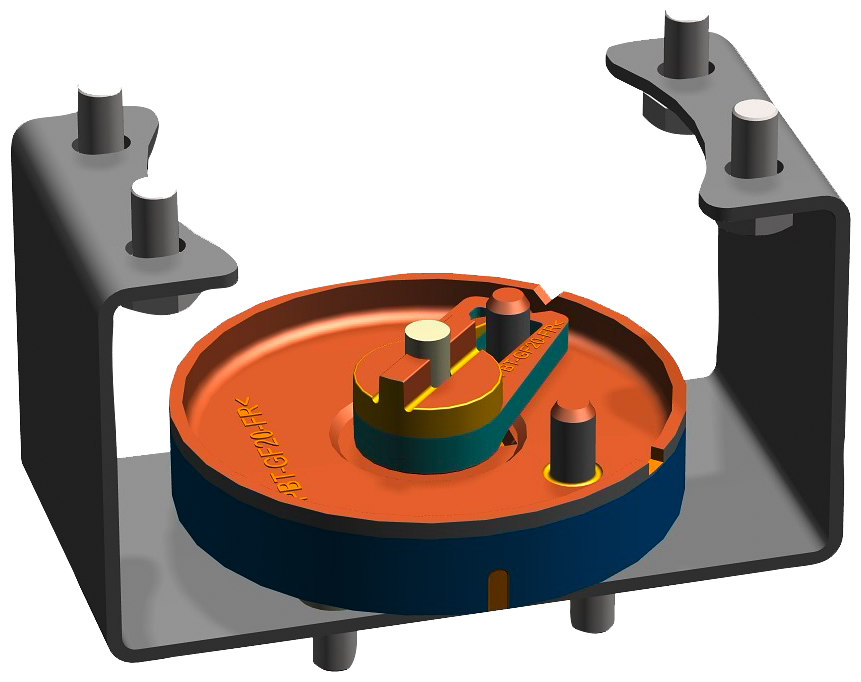

6DR4004-8D mounting kit is designed for the installation of the SIPART PS2 on pneumatic part turn actuators in accordance with VDI/VDE 3845 (NAMUR). The plastic coupling wheel ensures reliable and precise transmission. Ideal for simple and secure installation in industrial applications. (Without mounting bracket – mounting bracket should be ordered separately).
Actuator:Double acting, Single acting
Categories :SIPART PS2
Body:Plastic coupling wheel
Tender
Mounting kit SIPART PS2 for NAMUR part-turn actuators
• 6DR4004-8D • Anbau an Schwenkantriebe nach VDI/VDE 3845 (NAMUR) • Kupplungsrad aus Kunsttoff
