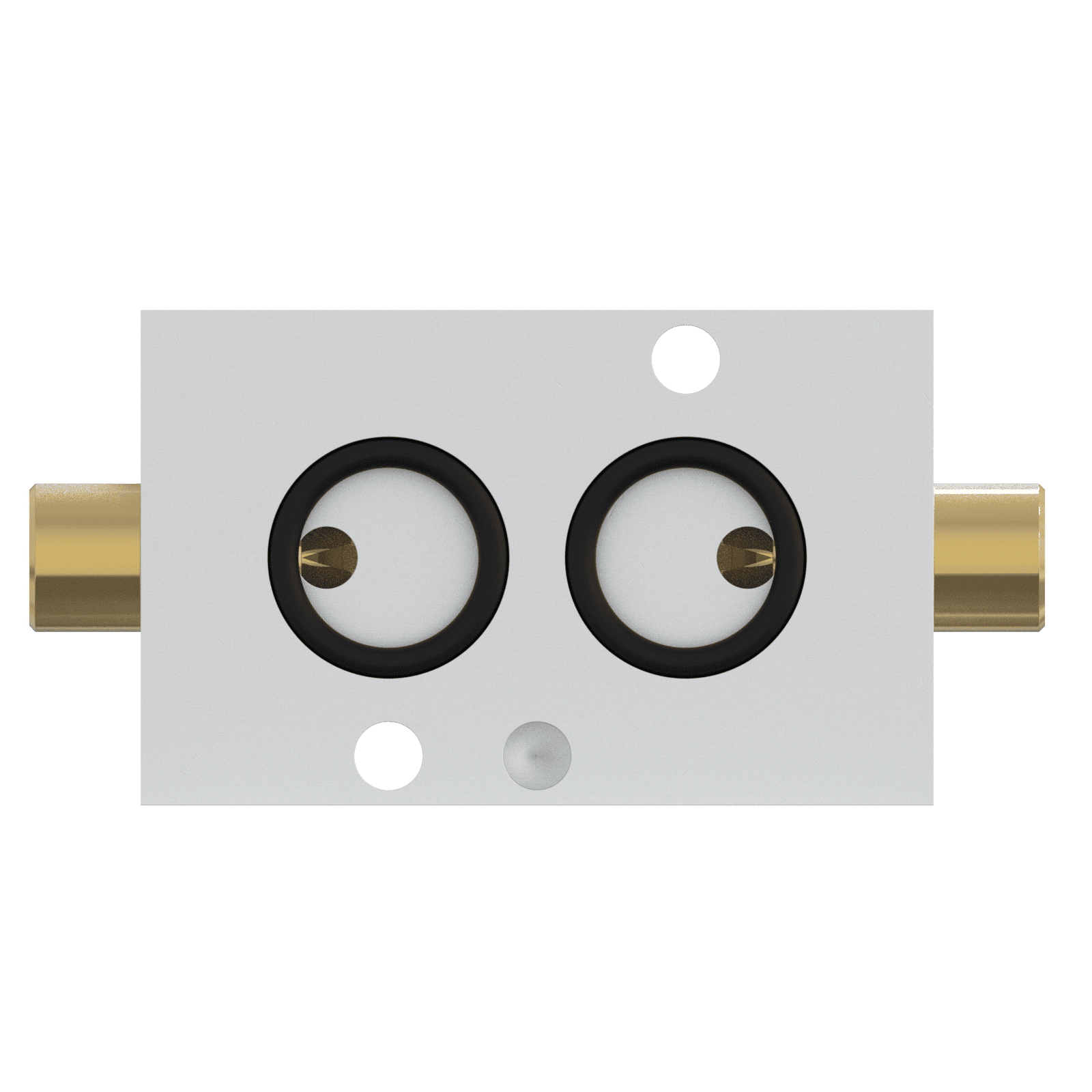

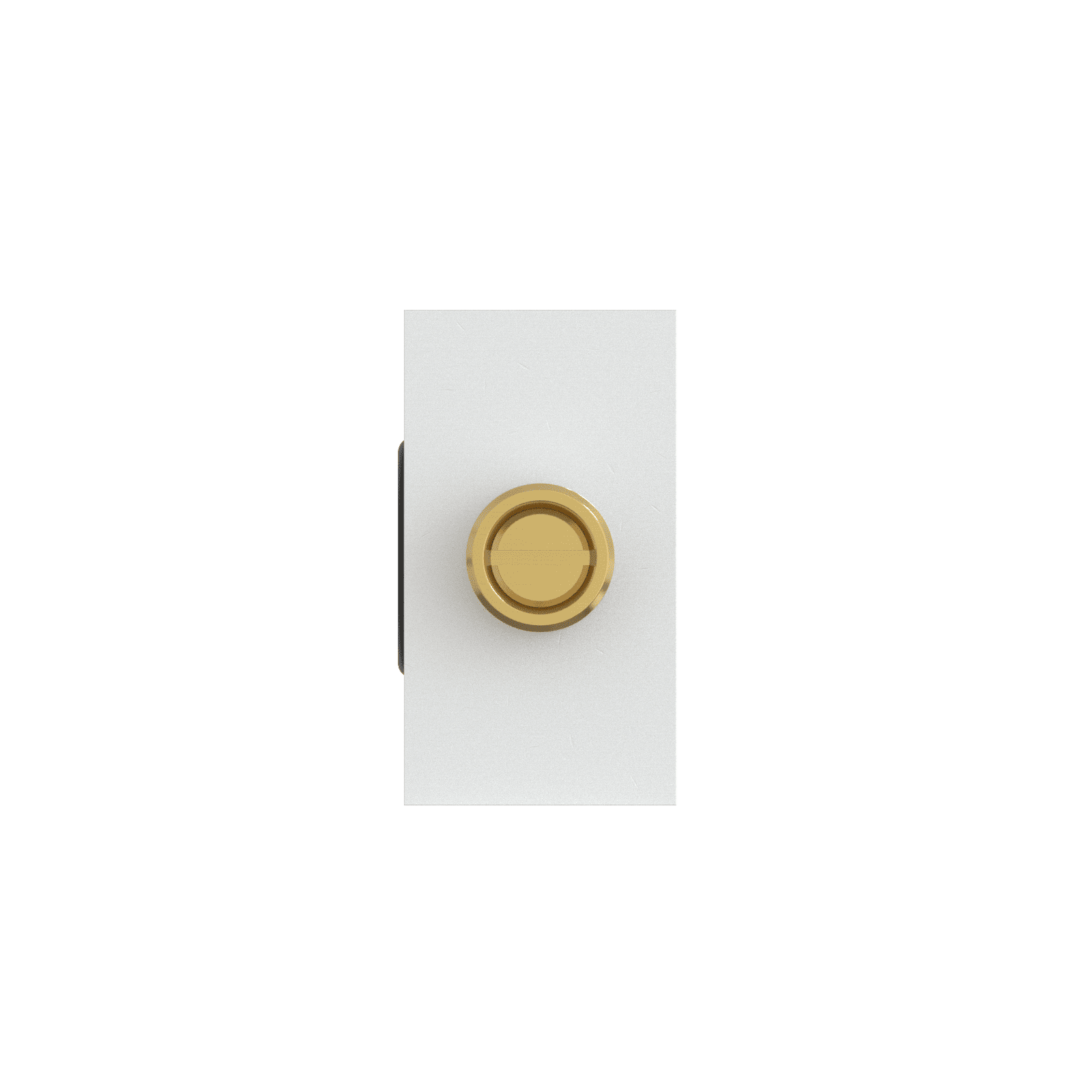

DP52001 5/2-way throttle plate allows for precise adjustment of the opening and closing speed of double-acting pneumatic actuators. These double-block throttles are installed between the double-acting actuator and the 5/2-way pilot valve. Adjustment is done using screwdriver available on both sides. With NAMUR 1/4" interface, connection Ø 5 mm, max. flow rate 650 l/min and operating pressure from 0.5 to 10 bar. Supplied with mounting screws.
• Between double-acting quarter turn actuator and 5/2-way pilot valve • Operation with screwdriver, adjustable on both sides • NAMUR 1/4" • Connection 5mm • Max. flow rate: 650 l/min • Operating pressure: 0,5 to 10 bar • Incl. fasteners 2x DIN 912 M5x46 and 1x DIN 913 M5x10
