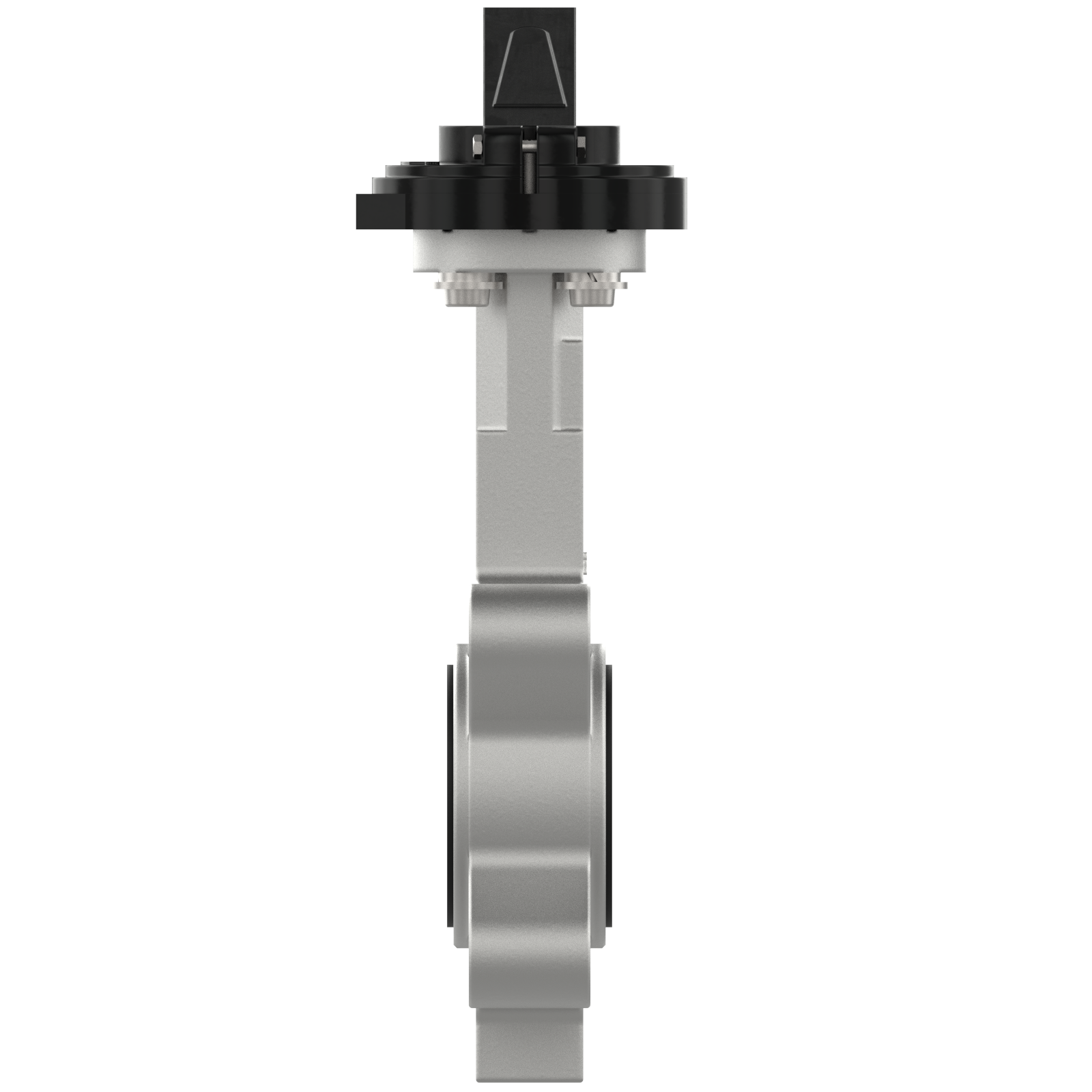

Stainless steel butterfly valve type AK203 with manual operation for installation between flanges according to DIN PN10/16. Lug-type body, centric design. The housing and disc are made of high-quality stainless steel (CF8M/1.4408), and the shaft is made of stainless steel (AISI 420). The seat ring is made of NBR. Ideal for installation in corrosive environments with liquid and gaseous media. Actuated by a hand lever.
Nominal width :DN50 - 2'' inch
Connection :Flange PN10 , Flange PN16
Design :Lug
Body:Stainless Steel
Face to Face length :EN 558-series 20
Sleeve material :NBR
Disc :Stainless steel
Temperature range :-10°C to +80°C
Actuation :Hand Lever
Max. Operating pressure :16 bar
Availability:In Stock
Tender
Butterfly Valve type AK203-SSNLL-DN50 • Lug type for mounting between flanges PN10/16 • Top flange ISO 5211 • Concentric design • Body: CF8M (1.4408) • Disc: CF8M (1.4408) • Shaft: AISI 420 • Nominal pressure (max.): 16bar • Seat: NBR • Temp. (min./max.): -10°C to +80°C • Operation: Hand lever (Aluminium)
