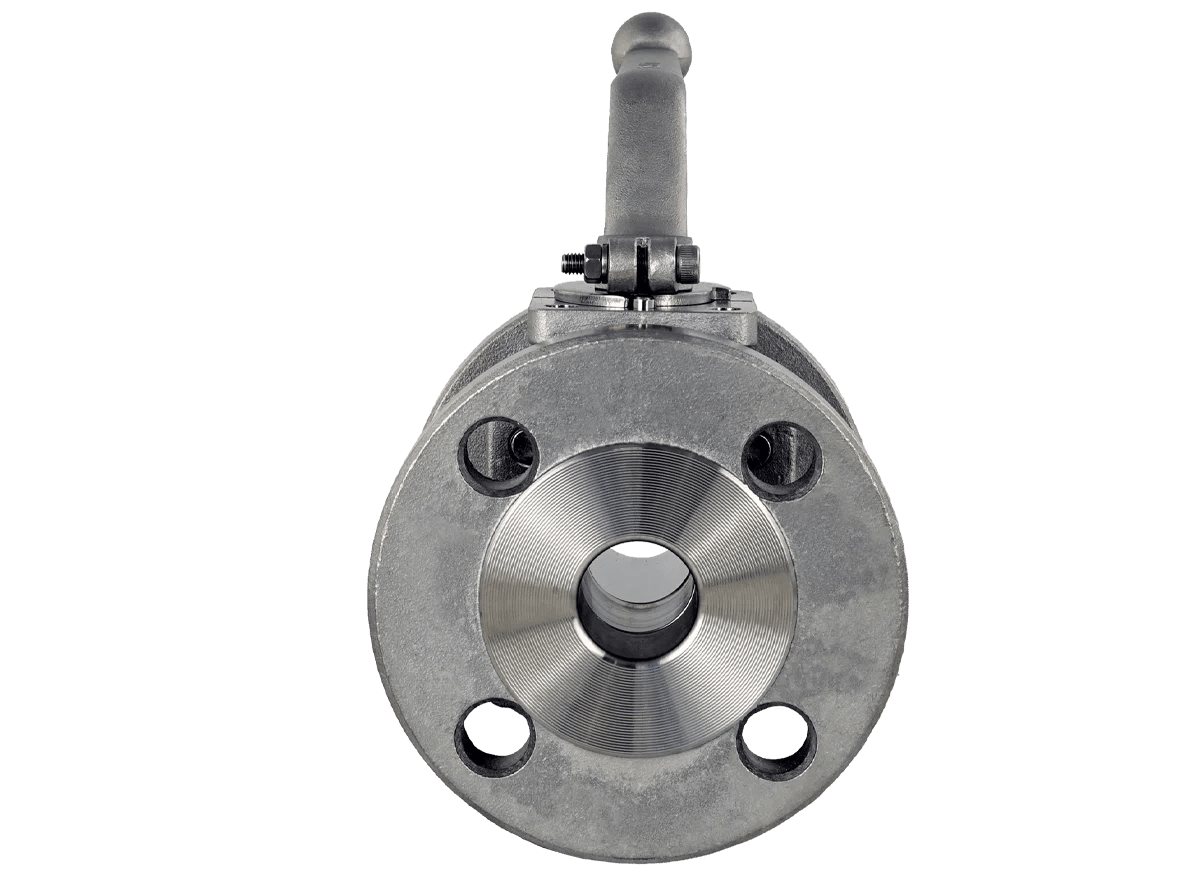

Gas flanged ball valve DN 100 made of stainless steel
Connection acc. to DIN PN16, face-to-face length acc. to EN 558-1, R27, ball seal made of PTFE, seal stem FKM/PTFE, seal body FKM/TFM, ball & body made of stainless steel (1.4408), DVGW PN16 for fuel gases acc. to G260/1, approval acc. to DIN EN 13774
Gehäusedichtung:FKM/TFM
Nominal width :DN100 - 4'' inch
Connection :Flange PN10 , Flange PN16
Design :2 ways
Body:Stainless Steel
Material ball :Stainless steel (1.4408)
Ball seal:PTFE
Face to Face length :EN 558-1 series 14
Temperature range :Depending on the operating pressure / gas -20° to +60
Gas flanged ball valve DN 100Connection acc. to DIN PN16, face-to-face length acc. to EN 558-1, R27, ball seal made of PTFE, seal stem FKM/PTFE, seal body FKM/TFM, ball made of stainless steel (1.4408) & body made of cast steel (1.0619), DVGW PN16 for fuel gases acc. to G260/1, approval acc. to DIN EN 13774
Flanged ball valve DN 100 made of GGG40Connection acc. to DIN PN16, face-to-face length acc. to EN558-1 series 14, ball seal PTFE + glass fibre, ball made of full stainless steel(1.4404), body made of nodular cast iron(GGG40), approval: TA-Luft with hand lever, full bore, 2-piece
Flanged ball valve DN 100 hollow ballConnection acc. to DIN PN16, face-to-face length acc. to EN558-1 series 14, full bore, 2-piece, ball seal PTFE + glass fibre, ball made of hollow stainless steel(1.4301), body made of nodular cast iron(GGG40), Approval: TA-Luft with hand lever
Gas flanged ball valve DN 100 PN16connection acc. to DIN PN16, face-to-face length acc. to EN558-1 series 14 - F4, ball seal made of PTFE, ball made of stainless steel(1.4304), ball valve body made of nodular cast iron(GGG40), approval: DVGW for gas, TA-Luft with hand lever, full bore, 2-piece
Gas flanged ball valve DN100 PN16, connection acc. to DIN PN16, face-to-face length acc. to EN558-1 series 14 - F4, ball seal made of PTFE, ball made of hollow stainless steel(1.4301), ball valve body made of nodular cast iron, approval: DVGW for gas, TA-Luft with hand lever, full bore, 2-piece
Flanged ball valve DN 100, connection acc. to DIN PN40, face to face EN 558-1 series 14 (F4), ball seal made of TFM1600(PTFE), body made of steel(1.0619), ball made of stainless steel, approval: TA-Luft, Firesafe Design, ATEX, AD2000-A4 with hand lever
Flanged ball valve DN 100 PN10/16 in stainless steel Connection according to DIN PN16, face-to-face length EN 558-1-series 14 (F4), ball seal made of TFM1600(PTFE), ball & body made of stainless steel (1.4408), approval: TA-Luft, Firesafe, ATEX, AD2000-A4 with hand lever
Flanged ball valve DN 100, connection acc. to DIN PN16, face-to-face length EN 558-1-series 14 (F4), ball seal TFM1600(PTFE), ball made of stainless steel, body made of steel (1.0619), approval: TA-Luft, Firesafe Design, ATEX, AD2000-A4 with hand lever
Flanged ball valve DN 100, connection acc. to DIN PN40, face to face EN 558-1 series-14, ball seal made of TFM1600(PTFE), ball & body made of stainless steel (1.4408), approval: TA-Luft, Firesafe Design, ATEX, AD2000-A4 with hand lever
