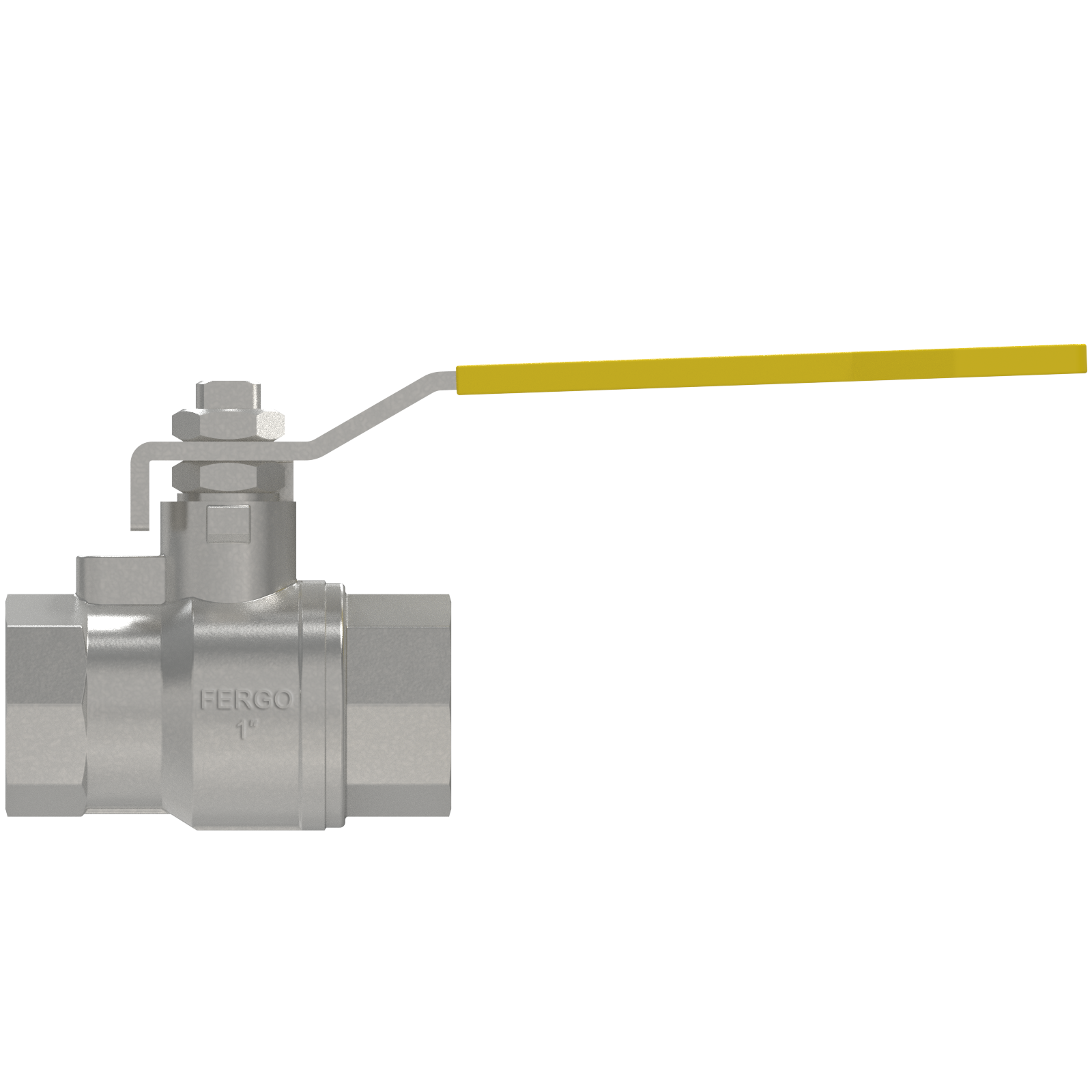

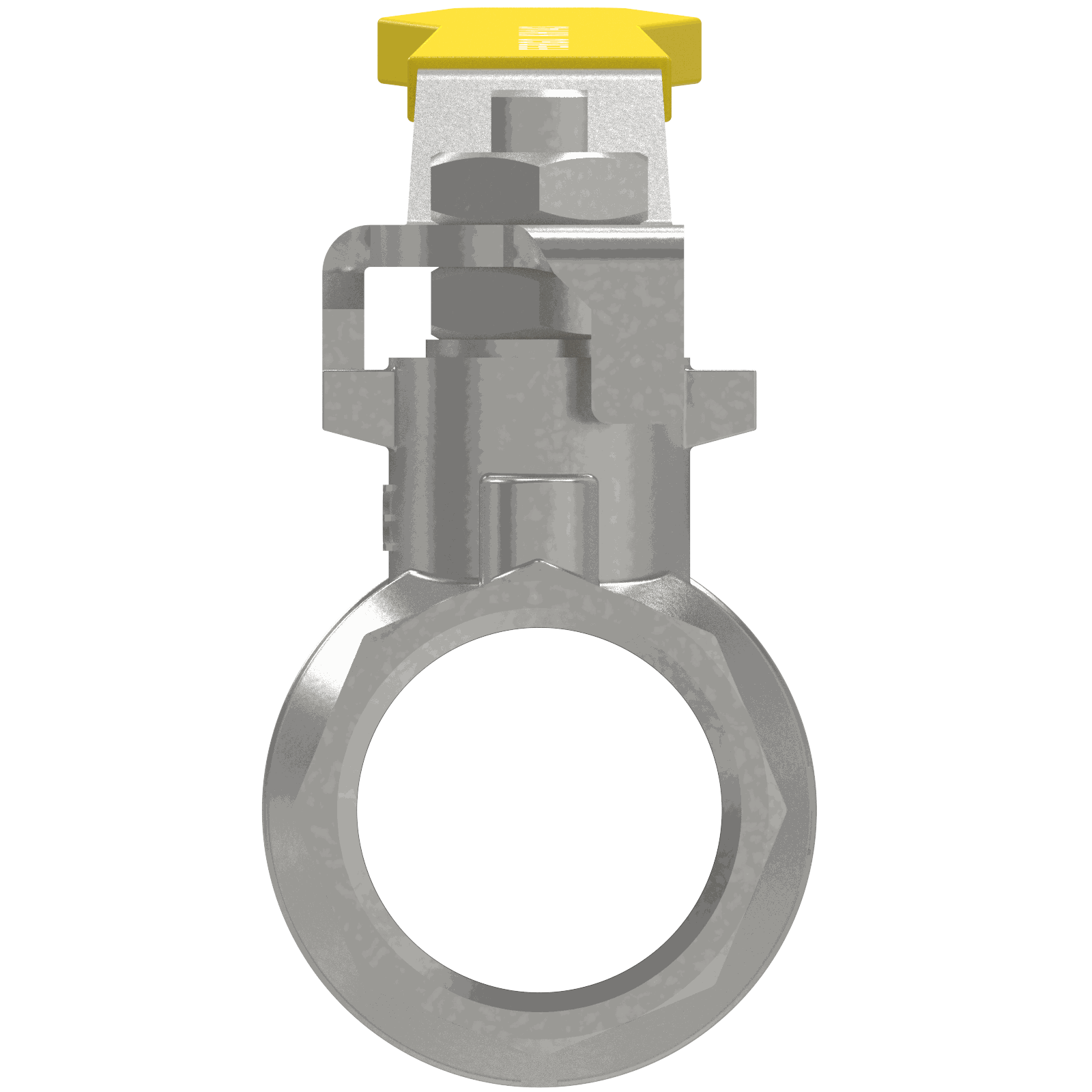

2-way ball valve for gas/biogas with DVGW gas approval PN16 according to DIN EN 13774. Full bore, 2-piece design, with female threads according to DIN EN 10226-1 (ISO 7/1). Body and ball made of stainless steel (1.4408). PTFE seal, adjustable packing gland. Temperature range: -20 °C to +180 °C (depending on operating pressure). Ideal for use in gas/biogas pipelines. Actuated with a hand lever.
Nominal width :DN25 - 1'' inch
Connection :Female thread
Design :2 ways
Body:Stainless Steel
Material ball :Stainless steel (1.4408)
Ball seal:PTFE
Temperature range :-20°C to +180°C , Für DVGW Gas Zulassung -20°C bis +60°C
Actuation :Hand Lever
Certificate :DVGW Gas DIN EN 13774
Option:Full passage
Availability:In Stock
Tender
Ball valve KH143, 1" • Design: 2-way • Full bore • Connection: threaded EN 10226-1, F-F • Body: stainless steel 1.4408 • Ball: stainless steel 1.4408 • Ball seat: PTFE • Adjustable stem packing (has to be retightened within certain periods) • Temperature range: -20°C to + 180°C (depending on working pressure) • Max. pressure: 40 bar • Operation: lever handle • DVGW gas approval PN16 acc. to DIN EN 13774
Gas ball valve 1 inch stainless-steel2-way ball valve for gas with DVGW gas approval according to DIN EN 13774. Full bore, 2-part design, with female threads according to DIN EN 10226-1 (ISO 7/1). The body and ball made of stainless-steel (1.4408), stem made of stainless steel (1.4401). Seals made of PTFE. Temperature range: -20°C to +60°C (depending on pressure), max. pressure: 16 bar. Top flange according to to ISO 5211, suitable for direct actuator mounting. Suitable for ATEX group 2, category 1 (2014-34-EU) with TA Luft certification (DIN EN ISO 15848). Actuation with a hand lever.
Ball valve 1 inch female threadfemale thread acc. to ISO 7/1 Rp (F-F), Ball brass chrome-plated, Seal ballPTFE, O-ring Viton/NBR, Housing brass nickel-plated for liquid and gaseous media, DVGW Gas Max. Operating pressure 40 bar
Ball valve 1 inch female male thread, male thread ISO 7/1 R - female thread ISO 7/1 Rp (M-F), Ball brass chrome-plated, Seal ballPTFE, O-ring Viton/NBR, Housing brass nickel-plated for liquid and gaseous media, DVGW Gas Max. Operating pressure 40 bar
Gas flanged ball valve DN25 PN16, connection acc. to DIN PN16, face-to-face length acc. to EN558-1 series 14 - F4, ball seal made of PTFE, ball made of hollow stainless steel(1.4301), ball valve body made of nodular cast iron(GGG40), approval: DVGW for gas, TA-Luft with hand lever, full bore, 2-piece
Gas flanged ball valve DN 25Connection acc. to DIN PN16, face-to-face length acc. to EN 558-1, R27, ball seal made of PTFE, seal stem FKM/PTFE, seal body FKM/TFM, ball made of stainless steel (1.4408) & body made of cast steel (1.0619), DVGW PN16 for fuel gases acc. to G260/1, approval acc. to DIN EN 13774
Compact flanged ball valve acc. to DIN PN40, ball seal PTFE, ball & body stainless steel(1.4408), full bore, DVGW for gas, TA-Luft, Fire Safe with hand lever, Max.operating pressure 40bar
