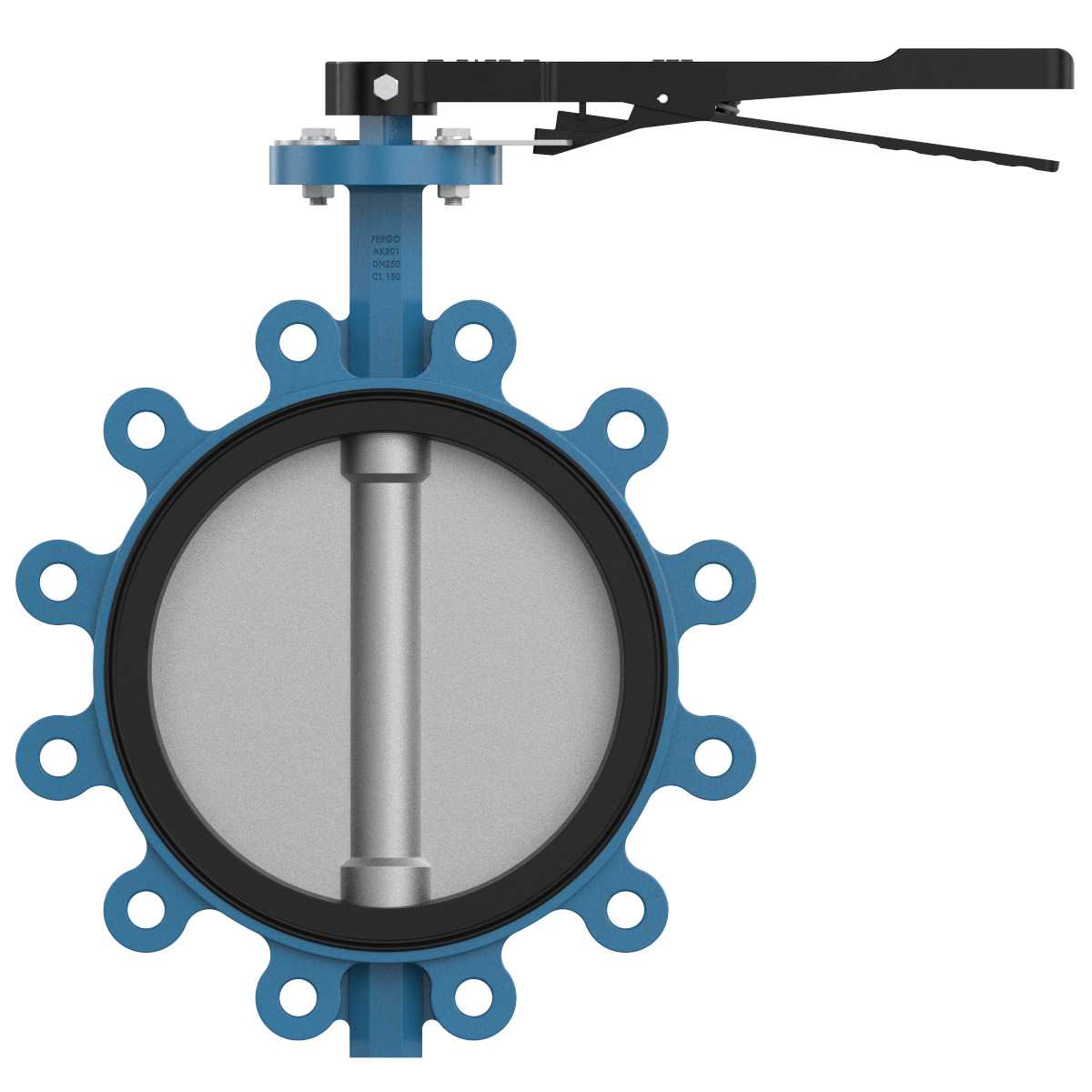

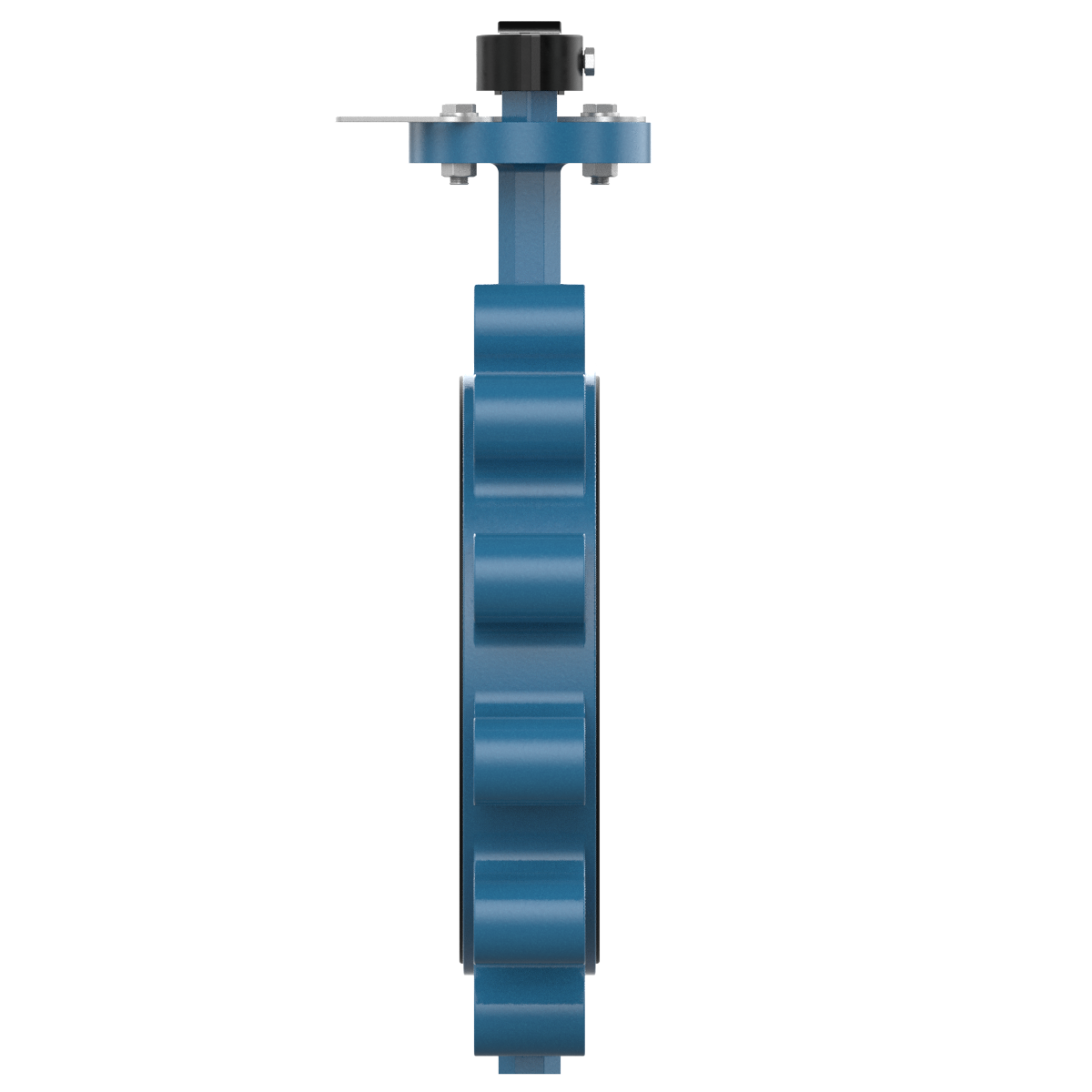

AK201 Butterfly valve 10 inch ASME Class150 EPDM hand lever
Product number 150-1592-18
Price €278.44
€331.34 incl. VAT
Delivery Time: On request
Available: In Stock
Recommended for your application
Description
Lug butterfly valve 10" is designed for installation between flanges in accordance with ASME B16.5, Class150 and ensures a reliable leak-tight shut-off in a wide variety of industrial applications. GGG40 body with a 150μm epoxy coating provides robust corrosion protection for a long service life even in demanding environments. Stainless steel CF8M disc combined with AISI420 shaft and the EPDM seat ring ensures reliable resistance to a wide range of media. Top flange compliant with ISO 5211 enables easy automation with pneumatic or electric actuators. As standard, the butterfly valve is supplied with cast iron hand lever for immediate manual operation.
Nominal width : DN250 - 10'' inch
Connection : Flange ANSI Class150
Design : Lug
Body: Ductile Cast Iron (GGG40)
Face to Face length : EN558-1, Series 20
Sleeve material : EPDM
Disc : Stainless steel
Temperature range : -10°C to +120°C
Actuation : Hand Lever
Max. Operating pressure : 16 bar
Tender
Fergo Butterfly Valve type AK201-D2SELL-DN250 (10")
• LUG type for mounting between flanges ASME B16.5, Class150
• Top flange ISO 5211
• Concentric design
• Body: GGG40 + Epoxy 150µm (blue hammer painting)
• Disc: CF8M
• Shaft: AISI 420
• Nominal pressure (max.): 16bar
• Seat: EPDM
• Temp. (min./max.): -10°C to +120°C
• Operation: hand lever (cast iron)
Accessories
Data sheet
Data sheet
3D-Model
Download 3D-Model
