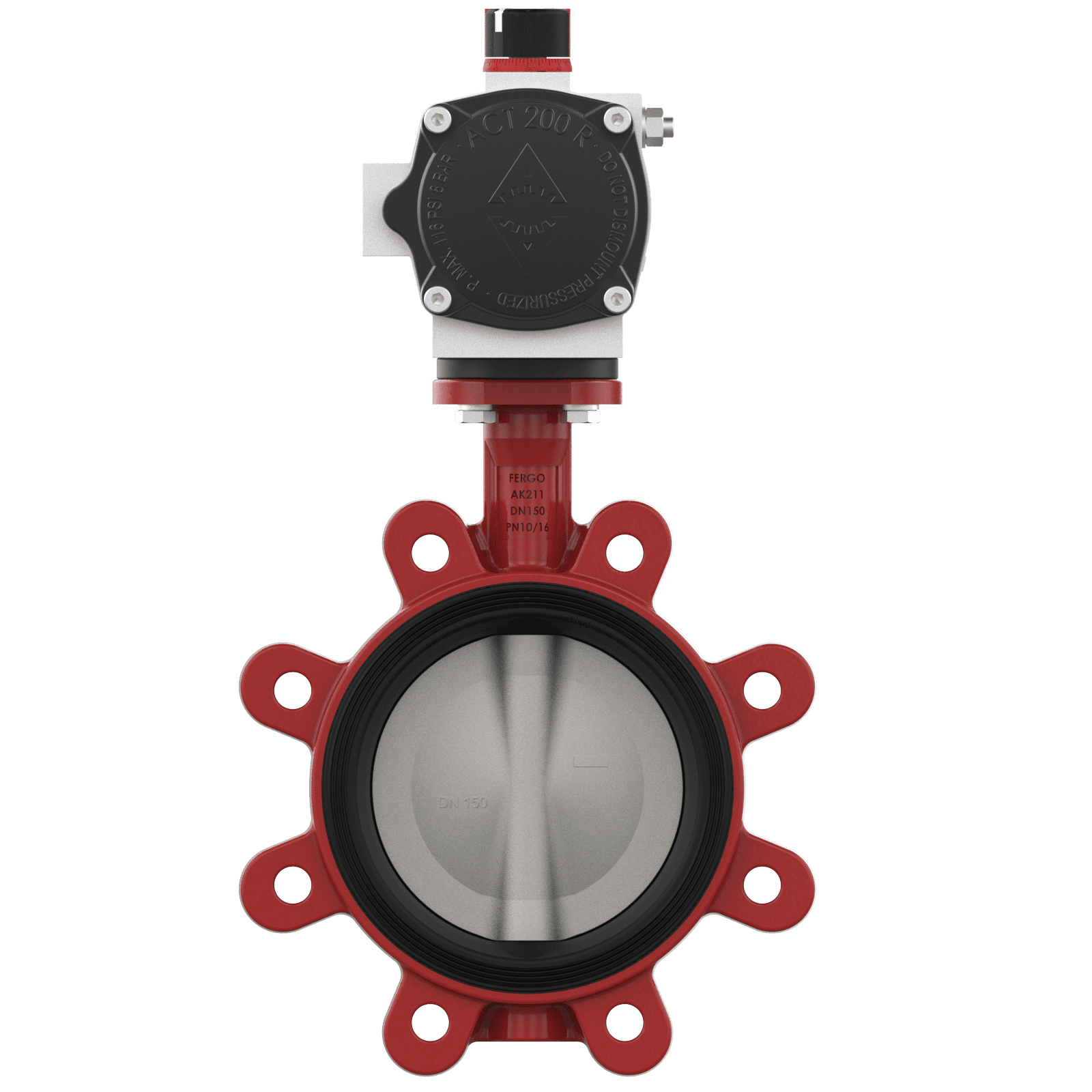

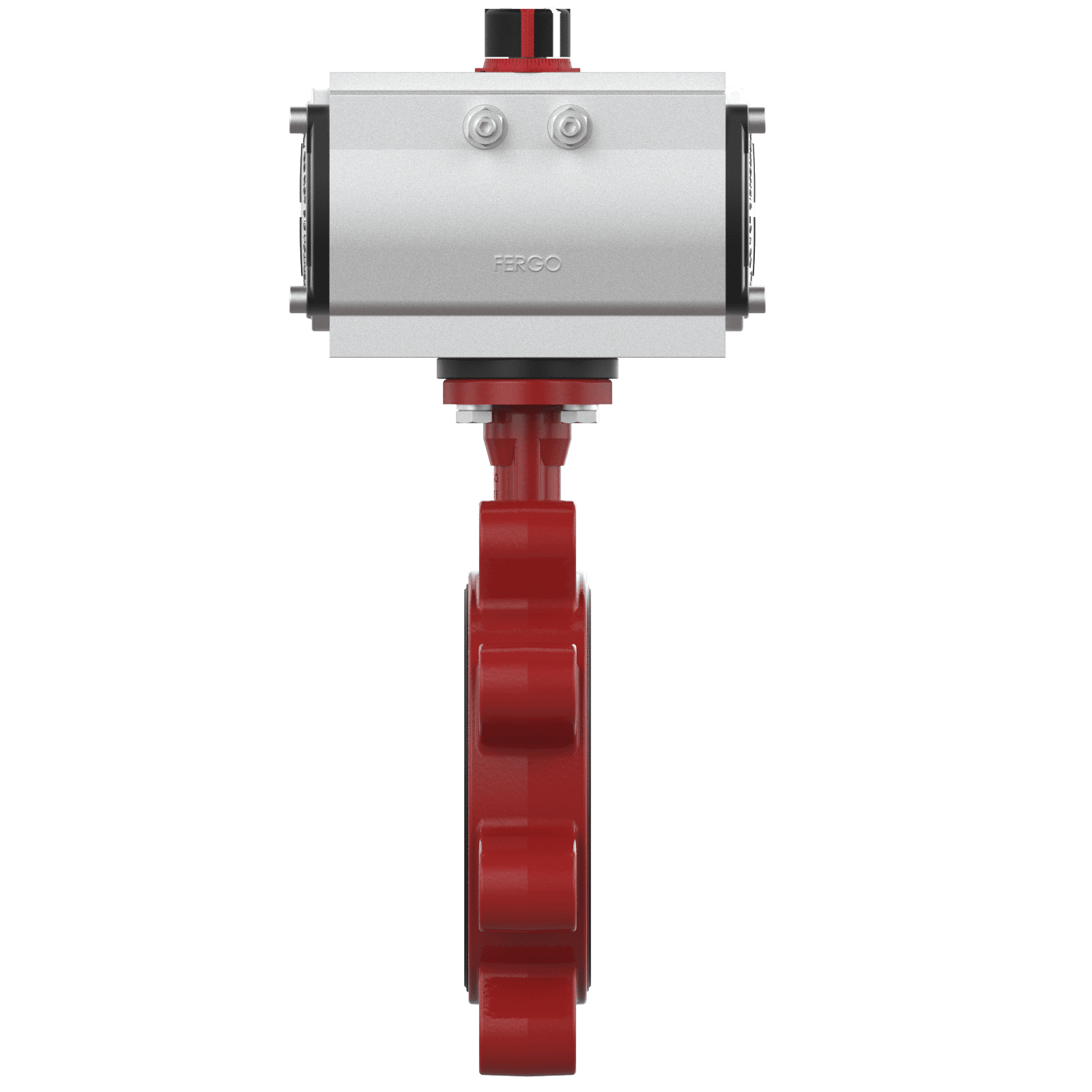

AK211 Butterfly valve DN 150 PN16 FPM/FKM (Viton) double-acting pneumatic actuator
Product number 150-1629-14-DA
Price €612.40
€728.76 incl. VAT
Delivery Time: 2-7 Days
Available: In Stock
Contact
Support and advice at:
Mon-Fri, 8:00 a.m. - 5:00 p.m
Mon-Fri, 8:00 a.m. - 5:00 p.m
Payment Methods
Shipping Methods
Description
Flanged butterfly valve DN 150 connection flanges PN16, body made of nodular cast iron GGG40, disc made of stainless steel 1.4408, seat ring made of FPM/FKM (Viton) with pneumatic quarter-turn actuator double-acting (DA)
Nominal width : DN150 - 6'' inch
Connection : Flange PN10 , Flange PN16
Design : Lug
Body: Ductile Cast Iron (GGG40)
Face to Face length : EN558-1, Series 20
Sleeve material : FPM/FKM - (Viton)
Disc : Stainless steel
Temperature range : -5°C to +200°C
Actuation : Pneumatic Actuator
Option: Double Acting
Availability: In Stock
Data sheet
Data sheet
3D-Model
Download 3D-Model
