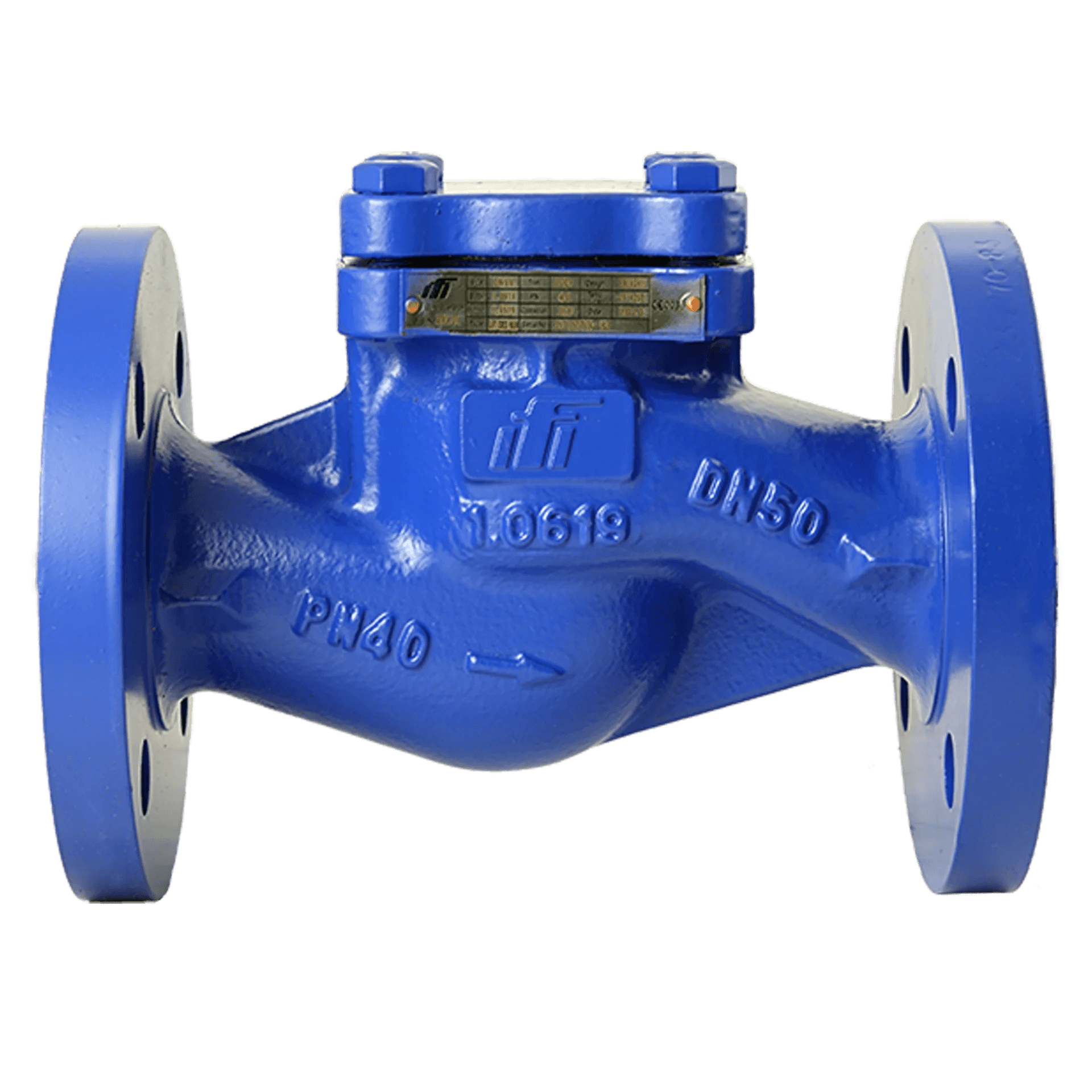

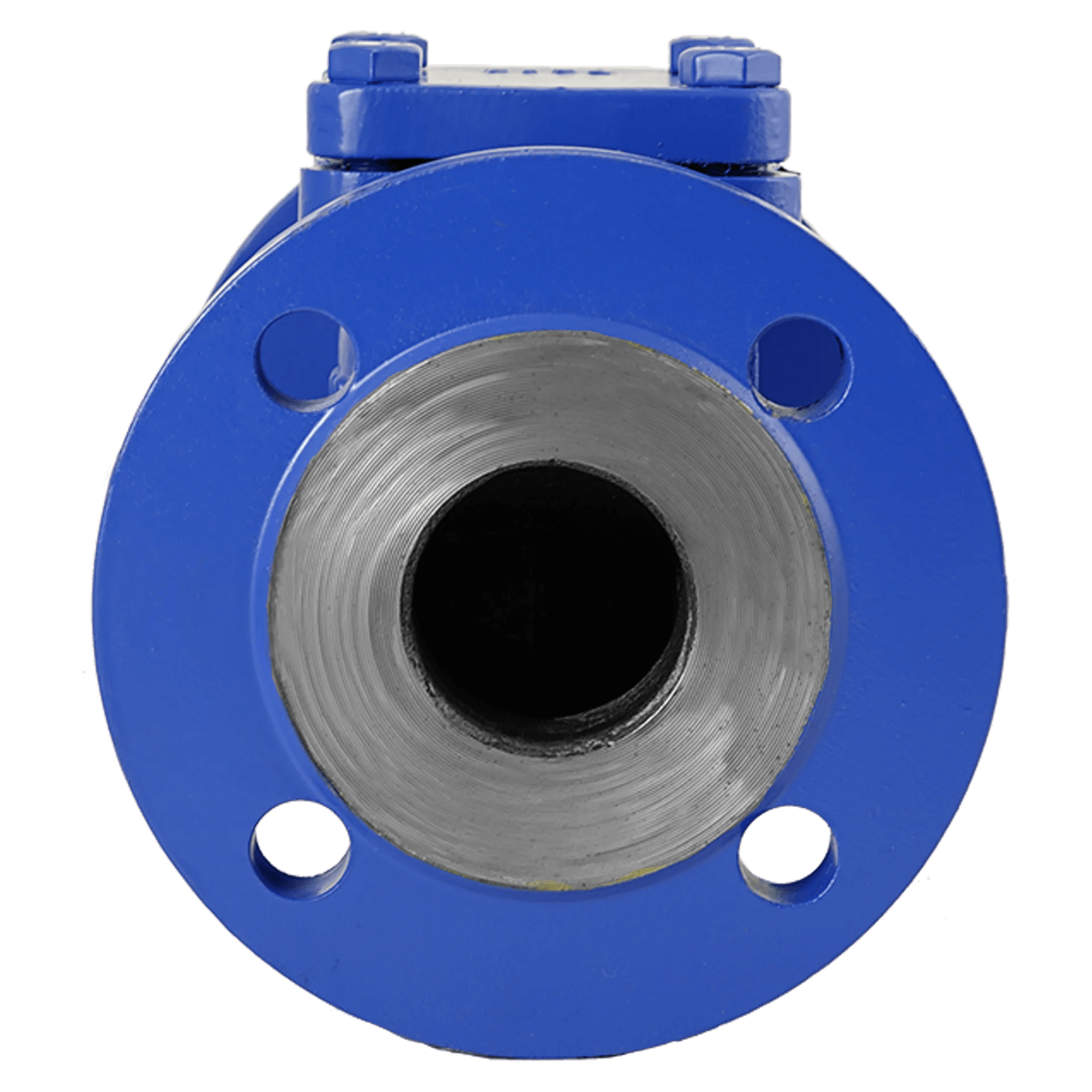

Piston check valve with nominal pressure: PN10/16/40, face-to-face dimension to EN 558-1, series 1, flange connection PN40 with type B1, EN 1092-1, body/cover made of steel 1.0619, disc made of 13Cr, spring made of stainless steel SSS304. Cover gasket made of SSS304 + graphite, operating temperature range -10°C to +400°C
Baulänge nach EN 558-1, Reihe 1 Flanschanschluss PN10-40, Typ B1, EN 1092-1 Gehäuse/Deckel: Stahlguss 1.0619 Teller: 13Cr Feder: SS304 Deckeldichtung: SS304 + Grafit Max. Betriebsdruck: 40bar Betriebstemperatur: -10°C bis +400°C
Lift check valve DN 15 spring-loadedPiston check valve with nominal pressure: PN16, face-to-face dimension to EN 558-1, series 1, flange connection PN16 with coarse sealing strip type B1, EN 1092-2, body made of grey cast iron EN-JL1040, disc cone made of stainless steel 1.4028, seat made of stainless steel 1.4006, spring made of stainless steel 1.4057. Cover seal made of graphite, operating temperature range +2°C to +300°C, Kvs: 5.9 m³/h
Lift check valve DN 15 spring-loadedPiston check valve with nominal pressure: PN25, face-to-face dimension to EN 558-1, series 1, flanged connection PN16 with coarse sealing strip type B1, EN 1092-2, body made of spheroidal graphite cast iron EN-JS1025, disc cone made of stainless steel 1.4028, seat made of stainless steel 1.4006, spring made of stainless steel 1.4057. Cover seal made of graphite, operating temperature range +2°C to +350°C, Kvs: 5.9 m³/h
Bellow sealed valve DN 15 PN40Flange connection PN40 acc. to EN 1092-1, Face-to-face length acc. to EN 558-1, Series 1, Tightness class A acc. to EN 12266-1, Bellows: X6CrNiMoTi17-12-2, Body made of Body made of 1.0619 (GP240GH), Plug made of 1.4021 (X20Cr13 + QT), Valve seat made of stainless steel, Packing rings: Graphite, Nominal pressure 40bar, Max. Temperature: +450°C (depending on operating pressure), Kvs: 6 m³/h, TA Luft acc. to ISO 15848-1 & actuation (steel) handwheel
Flanged globe valve DN 15 PN16/40 with gland packingFlange connection PN40 acc. to EN 1092-1, face-to-face length acc. to EN 558-1, series 1, tightness class A acc. to EN 12266-1, body made of steel 1.0619 (GP240GH), plug made of 1.4021 (X20Cr13), valve seat made of stainless steel, gland packing graphite, body gasket: SS304 + graphite, nominal pressure 40bar, Max. Temperature: +450°C (depending on operating pressure), Kvs: 4,3 m³/h, Actuation handwheel (EN-GJS-400-18-LT)
GESTRA MK 45A-2 DN 20 PN40Thermostatic steam trap GESTRA RHOMBUSline, With single seat, standard capsule 5N2 for larger condensate flowrates, With Y-type strainer and integrated water hammer protection, Installation between flanges EN 1092, PN40, form B1, Face-to-face dimension 150mm, Body and bonnet 1.4404 / ASTM A182 F316L, Sealing ring graphite/CrNi, Control diaphragm: Hastelloy®, Internal parts: Stainless steel
GESTRA MK 45A-1 DN 20 PN40Rhombusline thermal steam trap, With tandem diaphragm 5N1 (standard) for small condensate quantities, With strainer (Y strainer) and integrated non-return function, Installation between flanges EN 1092, PN40, form B1, Face-to-face dimension 150mm, Body and bonnet 1.4404 / ASTM A182 F316L, Sealing ring graphite/CrNi, Control diaphragm: Hastelloy®, Internal parts: Stainless steel
GESTRA MK 45A-2 3/4 inch class 150Thermostatic steam trap GESTRA RHOMBUSline, With single seat, standard capsule 5N2 for larger condensate flowrates, With Y-type strainer and integrated water hammer protection, Installation between flanges ASME B 16.5, Class150 RF, Face-to-face dimension 150mm, Body and bonnet 1.4404 / ASTM A182 F316L, Sealing ring graphite/CrNi, Control diaphragm: Hastelloy®, Internal parts: Stainless steel
GESTRA MK 45A-2 1/2 inch class 150Thermostatic steam trap GESTRA RHOMBUSline, With single seat, standard capsule 5N2 for larger condensate flowrates, With Y-type strainer and integrated water hammer protection, Installation between flanges ASME B 16.5, Class150 RF, Face-to-face dimension 150mm, Body and bonnet 1.4404 / ASTM A182 F316L, Sealing ring graphite/CrNi, Control diaphragm: Hastelloy®, Internal parts: Stainless steel
GESTRA MK 45A-2 3/4 inch class 300Thermostatic steam trap GESTRA RHOMBUSline, With single seat, standard capsule 5N2 for larger condensate flowrates, With Y-type strainer and integrated water hammer protection, Installation between flanges ASME B 16.5, Class300 RF, Face-to-face dimension 150mm, Body and bonnet 1.4404 / ASTM A182 F316L, Sealing ring graphite/CrNi, Control diaphragm: Hastelloy®, Internal parts: Stainless steel
Steam trap GESTRA MK 45A-1, DN 15 PN40Rhombusline thermal steam trap, With tandem diaphragm 5N1 (standard) for small condensate quantities, With strainer (Y strainer) and integrated non-return function, Installation between flanges EN 1092, PN40, form B1, Face-to-face dimension 150mm, Body and bonnet 1.4404 / ASTM A182 F316L, Sealing ring graphite/CrNi, Control diaphragm: Hastelloy®, Internal parts: Stainless steel
