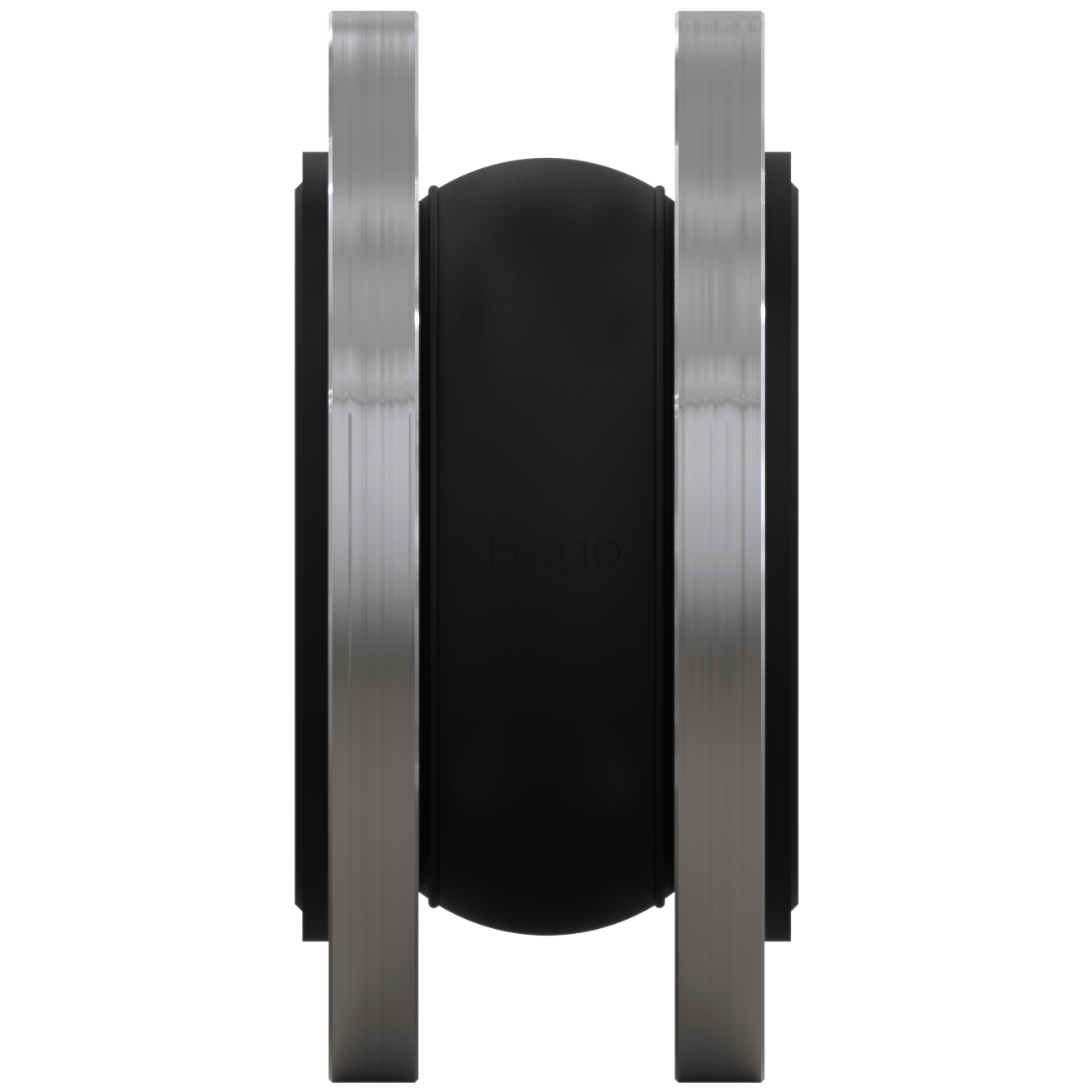

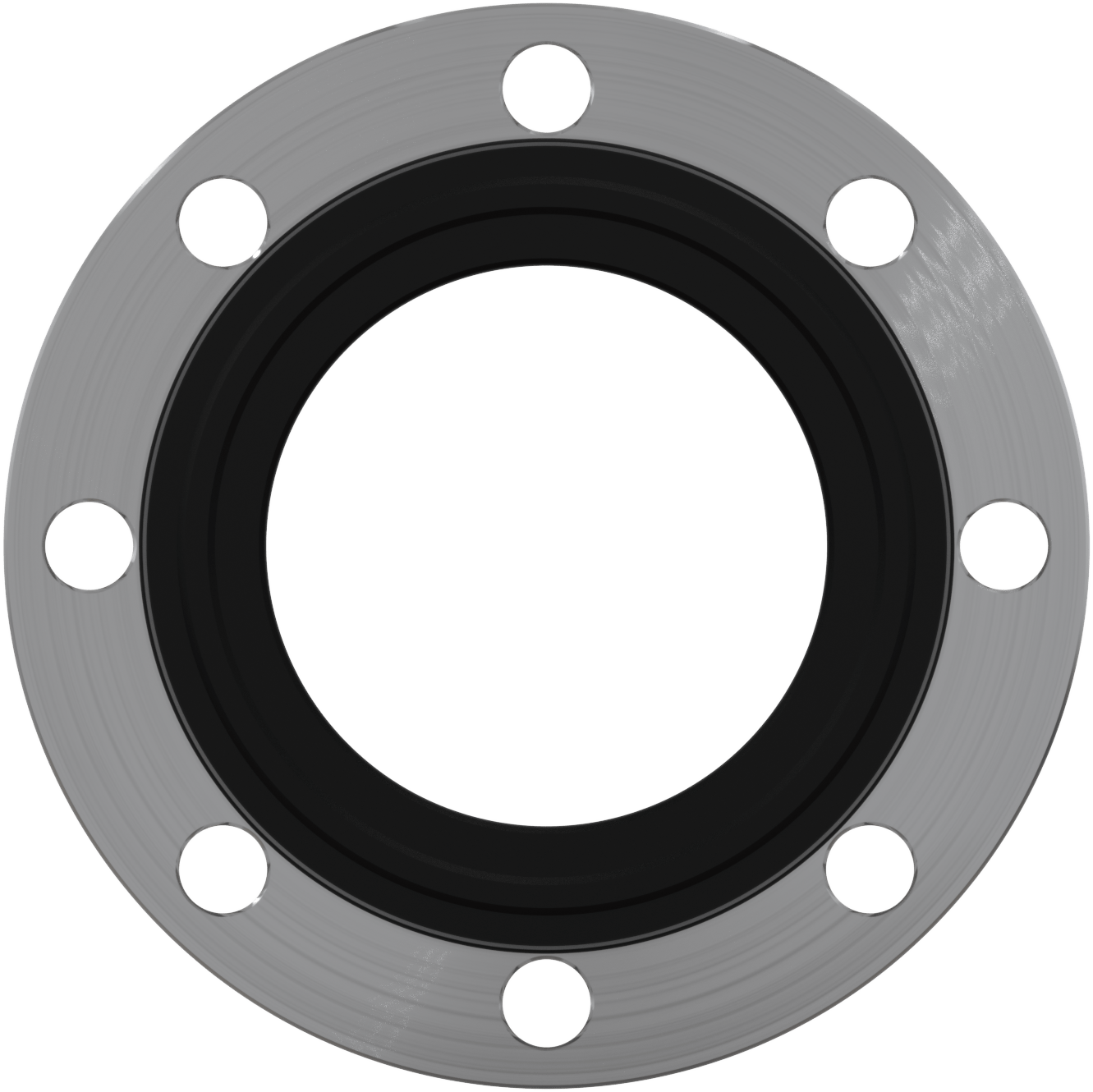

Expansion Joint 130mm DN 150
Rubber Expansion Joint 130mm DN 150
Rubber Expansion Joint 130mm DN 150
Expansion Joint 130mm DN 150
Rubber Expansion Joint 130mm DN 150
Rubber Expansion Joint 130mm DN 150

OG130 Rubber expansion joint DN 150 PN10/16 stainless steel EPDM

Product number 340-1045-14
Price €388.80
€461.72 incl. VAT
Delivery Time: 2-7 Days
Available: In Stock
3D Model
Contact
Support and advice at:
Mon-Fri, 8:00 a.m. - 5:00 p.m
+49 (0) 21 31 / 15 39 28-0
Payment Methods
Paid in advance
Invoice
Shipping Methods
Standard-DHL
Express Forwarding-The shipping cost will be charged separately.
self pickup

Rubber expansion joint DN 150 stainless steel EPDM

DIN PN10/16, Face to Face 130mm, EPDM, nylon reinforced, Flange stainless steel, Max. working pressure 16 bar

Nominal width : DN150 - 6'' inch
Connection : Flange PN10 , Flange PN16
Design : Rubber compensator
Flange: Stainless Steel
Face to Face length : 130mm
Material Bellow: EPDM
Temperature range : max. +110°C (depending on operating pressure)
Availability: In Stock

Fergo Kompensator Typ OG130-SEF-DN150

Flansche gemäß DIN PN10/16
Bauform: Gummikompensator
Baulänge: 130mm
Balg: EPDM, nylonverstärkt (Farbcode: rot)
Flansche: Edelstahl SS316
Max. Betriebsdruck: 16 bar
Temperatur: max. +110°C (abhängig vom Betriebsdruck)
Data sheet
Download 3D-Model
3D-Model
Skip product gallery

Rubber Expansion Joint

Gummi Kompensator DN200
OG150 Rubber expansion joint DN 200 PN16 EPDM Steel galvanized face-to-face 150mm
Product number
Copy to clipboard 340-1022-16
Rubber expansion joint DN 200 for the pipeline Flanges according to DIN PN16, Design rubber expansion joint, Face to face: 150 mm, Bellow EPDM, nylon cord reinforced, Flanges galvanized steel, Max. working pressure 16 bar
Nominal width :
DN200 - 8'' inch
Design :
Rubber compensator
Connection :
Flange PN16
Flange:
Galvanised steel
Material Bellow:
EPDM
Face to Face length :
150mm
Price €181.17
€215.59 incl. VAT
Delivery Time: 2-7 Days
Available: In Stock
Gummikompensator Edelstahl mit VSD
OG150 Rubber expansion joint DN 200 PN10 EPDM stainless steel with vacuum ring
Product number
Copy to clipboard 340-1030-16-VSD
Rubber expansion joint vacuum support ring DN 200 Flanges according to DIN PN10, Design rubber expansion joint, Face to face: 150mm, Bellow EPDM, nylon cord reinforced, Flanges stainless steel, Max. working pressure 10 bar with vacuum support ring DN 200 with SS316 - The movement capacity is reduced by approx. 50%.
Nominal width :
DN200 - 8'' inch
Vacuum ring :
DN200, Stainless steel
Design :
Rubber compensator
Connection :
Flange PN10
Flange:
Stainless Steel
Material Bellow:
EPDM
Price €541.98
€644.96 incl. VAT
Delivery Time: 2-7 Days
Available: In Stock
Gummikompensator Stahl Flansch mit Vakuumstützring
OG150 Rubber expansion joint vacuum support ring DN 200 PN16 EPDM
Product number
Copy to clipboard 340-1022-16-VSD
Rubber expansion joint DN 200 for the pipeline Flanges according to DIN PN16, Design rubber expansion joint, Face to face: 150 mm, Bellow EPDM, nylon cord reinforced, Flanges galvanized steel, Max. working pressure 16 bar with vacuum support ring DN 200 with SS316 - The movement capacity is reduced by approx. 50%.
Nominal width :
DN200 - 8'' inch
Vacuum ring :
DN200, Stainless steel
Design :
Rubber compensator
Connection :
Flange PN16
Flange:
Galvanised steel
Material Bellow:
EPDM
Price €229.05
€272.57 incl. VAT
Delivery Time: 2-7 Days
Available: In Stock
Rubber expansion joint DN150
OG130 rubber expansion joint DN 150 PN10/16 steel galvanized NBR face-to-face 130mm
Product number
Copy to clipboard 340-1050-14
Rubber expansion joint DN 150 for the pipeline, DIN PN10/16, Face to Face 130mm, nitrile/CR-NBR, nylon reinforced, Flanges galvanized steel, Max. working pressure 16 bar
Nominal width :
DN150 - 6'' inch
Design :
Rubber compensator
Connection :
Flange PN16
Connection :
Flange PN10
Flange:
Galvanised steel
Face to Face length :
130mm
Price €120.42
€143.30 incl. VAT
Delivery Time: 2-7 Days
Available: In Stock
