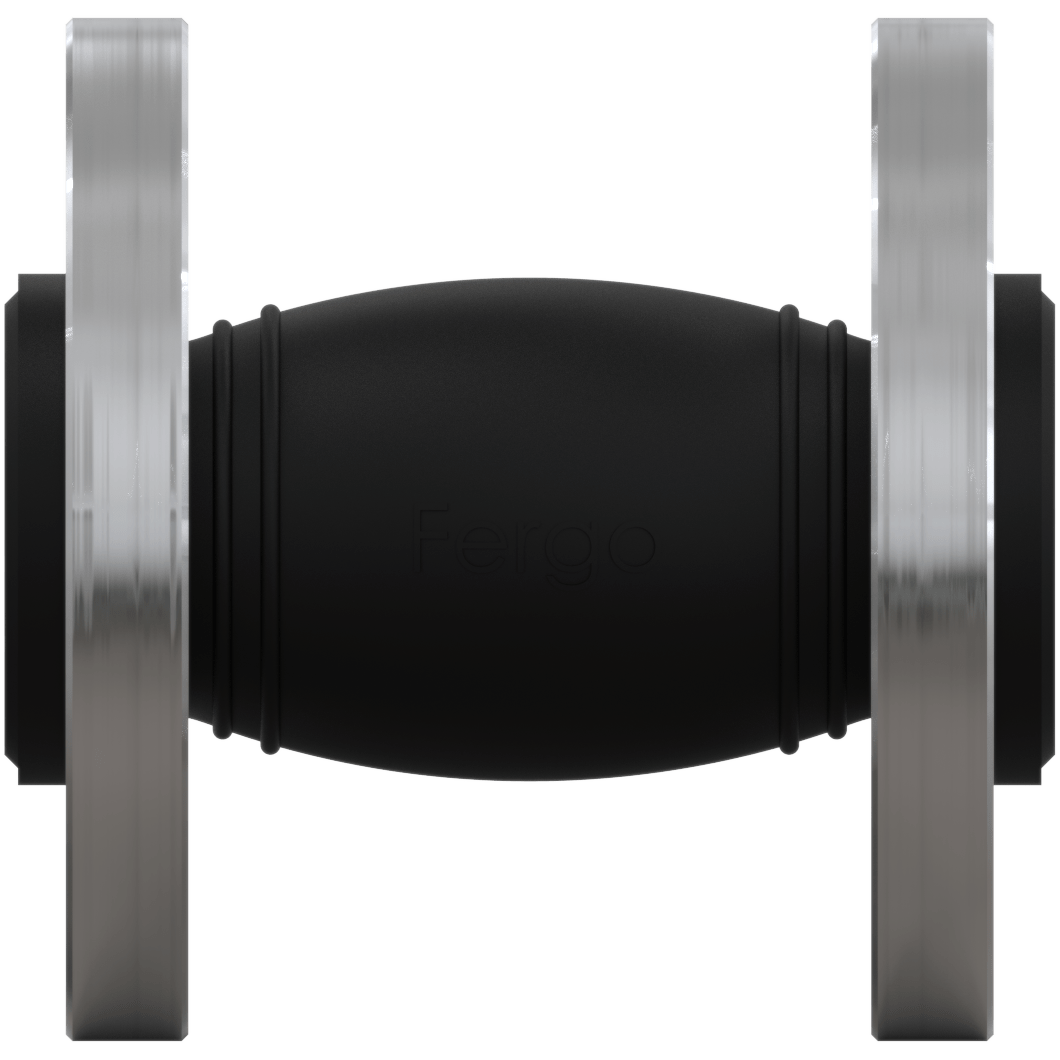

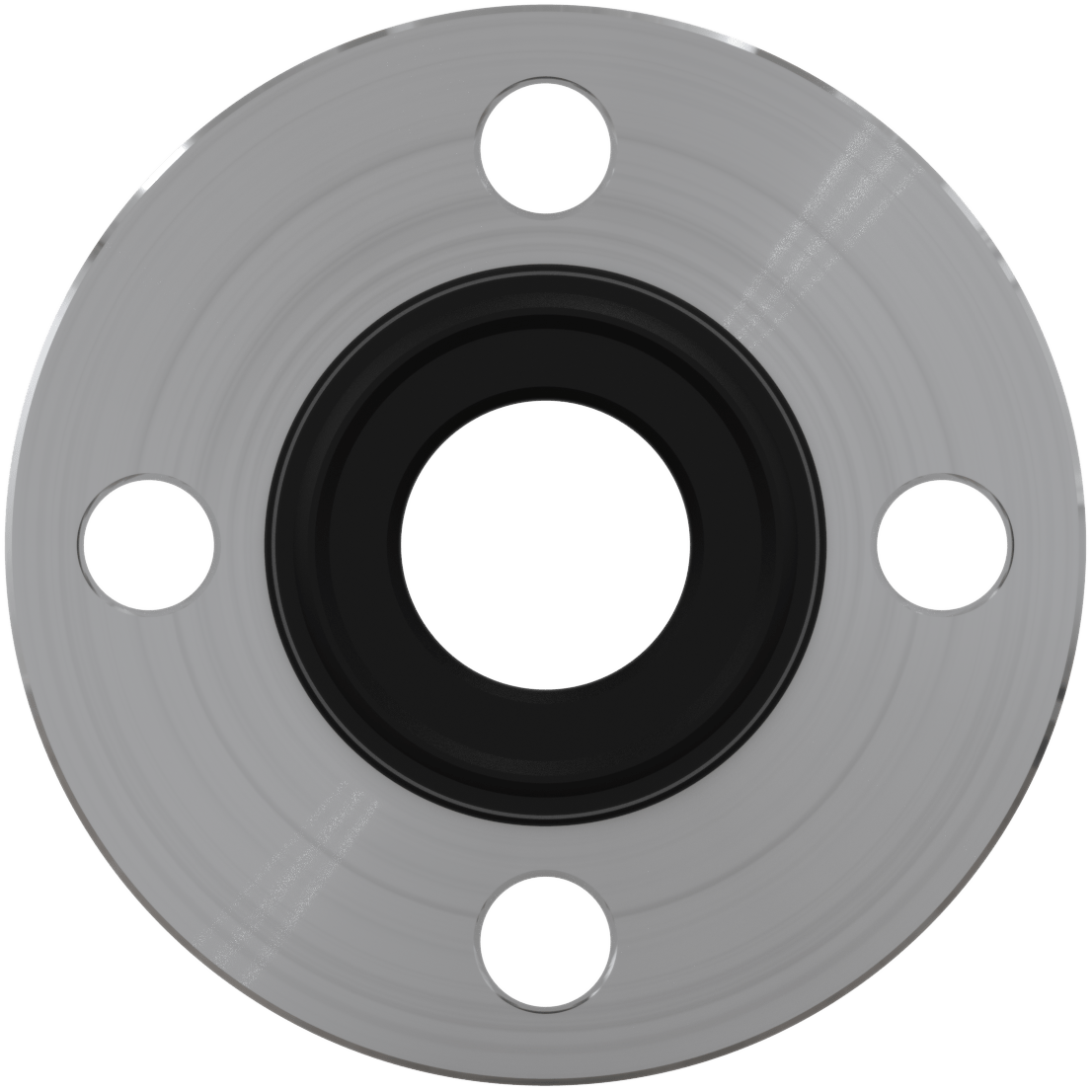

Flanges according to DIN PN10/16,Design rubber expansion joint, Face to face: 150mm, Bellow EPDM, nylon cord reinforced, Flanges stainless steel, Max. working pressure 16 bar
Nominal width :DN40 - 1 1/2'' inch
Connection :Flange PN10 , Flange PN16
Design :Rubber compensator
Flange:Stainless Steel
Face to Face length :150mm
Material Bellow:EPDM
Temperature range :max. +110°C (depending on operating pressure)
Availability:In Stock
Tender
Fergo Kompensator Typ OG150-SEF-DN40 Flansche gemäß DIN PN10/16 Bauform: Gummikompensator Baulänge: 150mm (6 Zoll) Balg: EPDM, nylonverstärkt (Farbcode: rot) Flansche: Edelstahl SS316 Max. Betriebsdruck: 16 bar Temperatur: max. +110°C (abhängig vom Betriebsdruck)
Rubber expansion joint DN 32 for the pipeline Flanges according to DIN PN10/16, Design rubber expansion joint, Face to face: 150 mm, Bellow EPDM, nylon cord reinforced, Flanges galvanized steel, Max. working pressure 16 bar
Rubber expansion joint DN 40 for the pipeline Flanges according to DIN PN10/16, Design rubber expansion joint, Face to face: 150 mm, Bellow EPDM, nylon cord reinforced, Flanges galvanized steel, Max. working pressure 16 bar
Rubber expansion joint DN 32 stainless steel DIN PN10/16, Face to Face 130mm, EPDM nylon reinforced, Flange Stainless steel, Max. working pressure 16 bar
Rubber expansion joint DN 40 stainless steel DIN PN10/16, Face to Face 130mm, EPDM nylon reinforced, Flange Stainless steel, Max. working pressure 16 bar
Rubber expansion joint DN 50 for the pipeline, DIN PN10/16, Face to Face 130mm, EPDM, nylon reinforced, Flanges galvanized steel, Max. working pressure 16 bar
Rubber expansion joint DN 65 for the pipeline, DIN PN10/16, Face to Face 130mm, nitrile/CR-NBR, nylon reinforced, Flanges galvanized steel, Max. working pressure 16 bar
