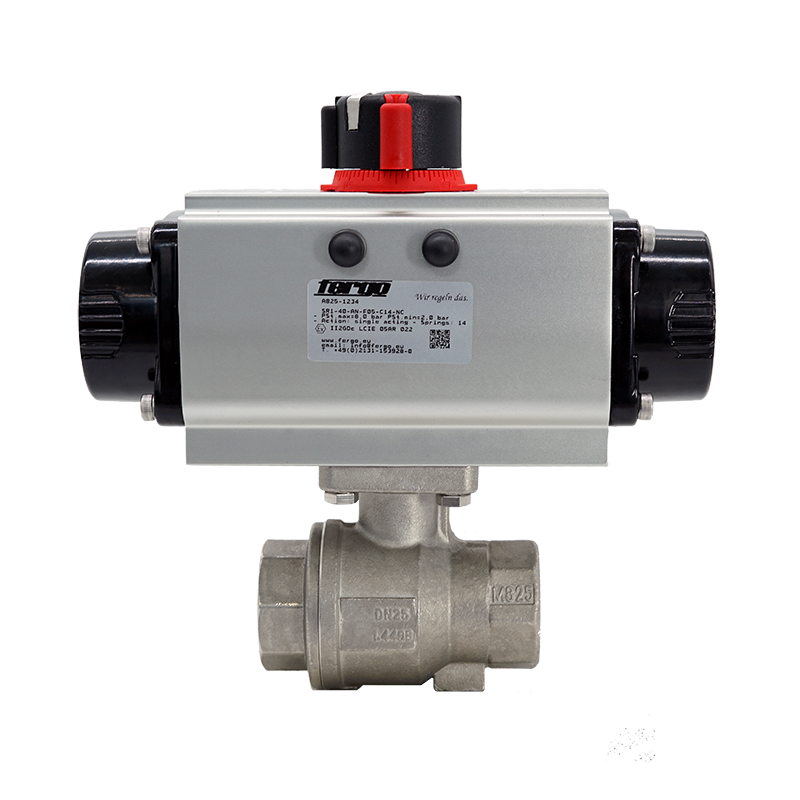

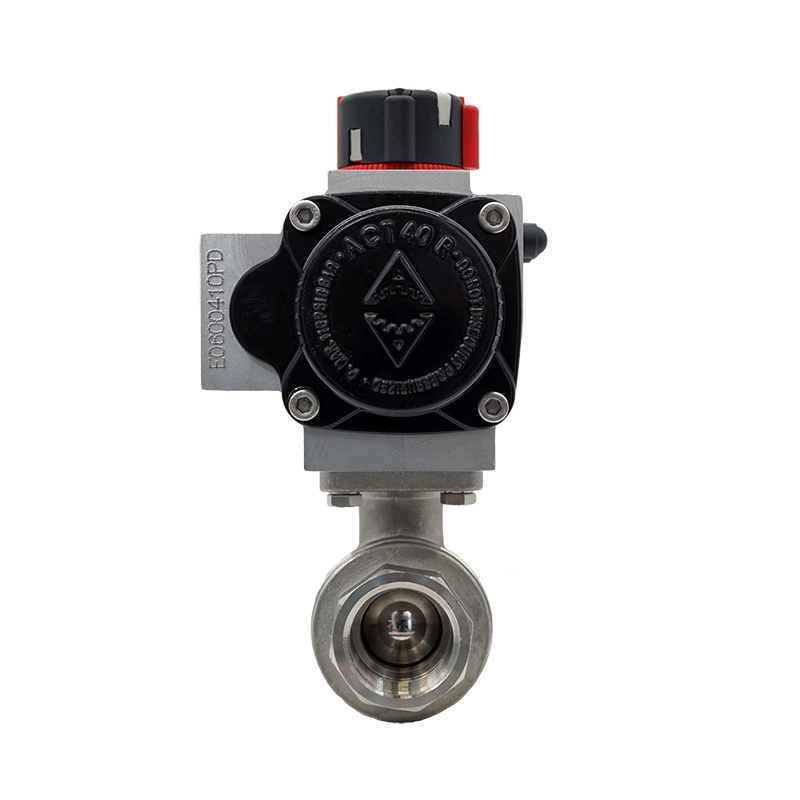

2-way pneumatic ball valve type KH124W made of stainless steel with DVGW drinking water approval PN10 in accordance with DIN EN 13828 W570-1. Ideal for application in potable water/water systems. The shut-off valve has a female threaded connection in accordance with DIN EN 10226-1 (ISO 7/1). The valve body and ball are made of stainless steel (material no.: 1.4408) and the shaft is made of stainless steel (material no.: 1.4401). Full bore with PTFE seal. TA-Luft approval, Fire-safe design, antistatic design, silicone-free, LABS conformity as per VDMA 24364. Actuated by a single-acting pneumatic actuator (spring force closing/normally closed). Note: The pneumatic actuator is sized for a control pressure of 6 bar.
Nominal width :DN40 - 1 1/2'' inch
Connection :Female thread
Design :2 ways
Body:Stainless Steel
Material ball :Stainless steel (1.4408)
Ball seal:PTFE
Temperature range :0°C bis +90°C
Actuation :Pneumatic Actuator
Max. Operating pressure :10 bar
Certificate :DVGW Drinking water , TA Luft
Option:Single Acting , Spring Force Closing(NC) , Full passage
Availability:In Stock
Tender
Ball valve KH124G, 1 1/2" with SR actuator • Design: 2-way • Full bore • 2-piece body • Threaded ends acc. to DIN EN 10226-1 (ISO 7/1), Rp • Body / Ball: 1.4408 • Stem: 1.4401 • Ball seat: PTFE • Shaft seal: PTFE spring-loaded • Temperature range: -20°C...+60°C (depending on working pressure) • Max. working pressure: 16 bar • Direct mounting acc. to DIN ISO 5211 • DVGW gas approval PN16 acc. to DIN EN 13774 • DVGW-approval acc. to gas appliance regulation GAR EU-2016-426 • Ex-area acc. group 2, category1, ATEX 2014-34-EU Operation: Pneumatic actuator SR1-130-AN-F05/F07-C17-NC • Design: single acting, 90° quater turn • FUNCTION: NORMALLY CLOSED • Body: aluminium, hard anodized • Number of springs: 6 • Max. pressure: 8 bar IMPORTANT! Actuator sizing calculation for 6 bar air supply!
Limit switch box EB300-PE2M02 with mechnical micro switchesFlexible box made of polyamide with polycarbonate cover, Mounting bracket and shaft made of stainless steel, Voltage: 12-250 V AC/DC, Operating current: 0,1-10A with protection IP67
Limit switch box EB300-PP2I02 with inductive switchesFlexible box made of polyamide with polycarbonate cover, Mounting bracket and shaft made of polyamid, 2x inductive proximity switches P+F, NBB2-V3-E2 (PNP N.O.), LED Indicator, Max. current: 0-100mA with protection IP67
3/2 way Namur solenoid valve with air springPneumatic solenoid valve 3/2 way G 1/4" with Al anodised frame, inner parts of brass and synthetic material with NBR sealing, Operating pressure of 1.5 to 10 bar with protection class IP65 including solenoid coil and plug
3/2 way Namur solenoid valve with air springPneumatic solenoid valve 3/2 way G 1/4" with Al anodised frame, inner parts of brass and synthetic material with NBR sealing, Operating pressure of 1.5 to 10 bar with protection class IP65 including solenoid coil and plug
DP32001 3/2-way throttle plate allows for precise adjustment of the opening and closing speed of single-acting pneumatic actuators. These double-block throttles are installed between the single-acting actuator and the 3/2-way pilot valve. Adjustment is done using screwdriver available on both sides. With NAMUR 1/4" interface, connection Ø 5 mm, max. flow rate 650 l/min and operating pressure from 0.5 to 10 bar. Supplied with mounting screws.
DP52001 5/2-way throttle plate allows for precise adjustment of the opening and closing speed of double-acting pneumatic actuators. These double-block throttles are installed between the double-acting actuator and the 5/2-way pilot valve. Adjustment is done using screwdriver available on both sides. With NAMUR 1/4" interface, connection Ø 5 mm, max. flow rate 650 l/min and operating pressure from 0.5 to 10 bar. Supplied with mounting screws.
Stainless steel socket check valve 1 1/2 inch, connection female thread ISO 228/1, body, disc & spring made of stainless steel (1.4301), seat made of Viton, Max. Operating pressure 16 bar, Temp.max 150°C
Stainless steel ball valve 1 1/2'' inch PN 63 female thread acc. to ISO 7-1(EN 10226-1) F-F, Body / ball / shaft made of stainless steel (SS316)(CF8M), Seal made of ball PTFE + 15% glass fibre, Full bore , 2 pieces Max. Operating pressure 63 bar with single-acting pneumatic actuator
