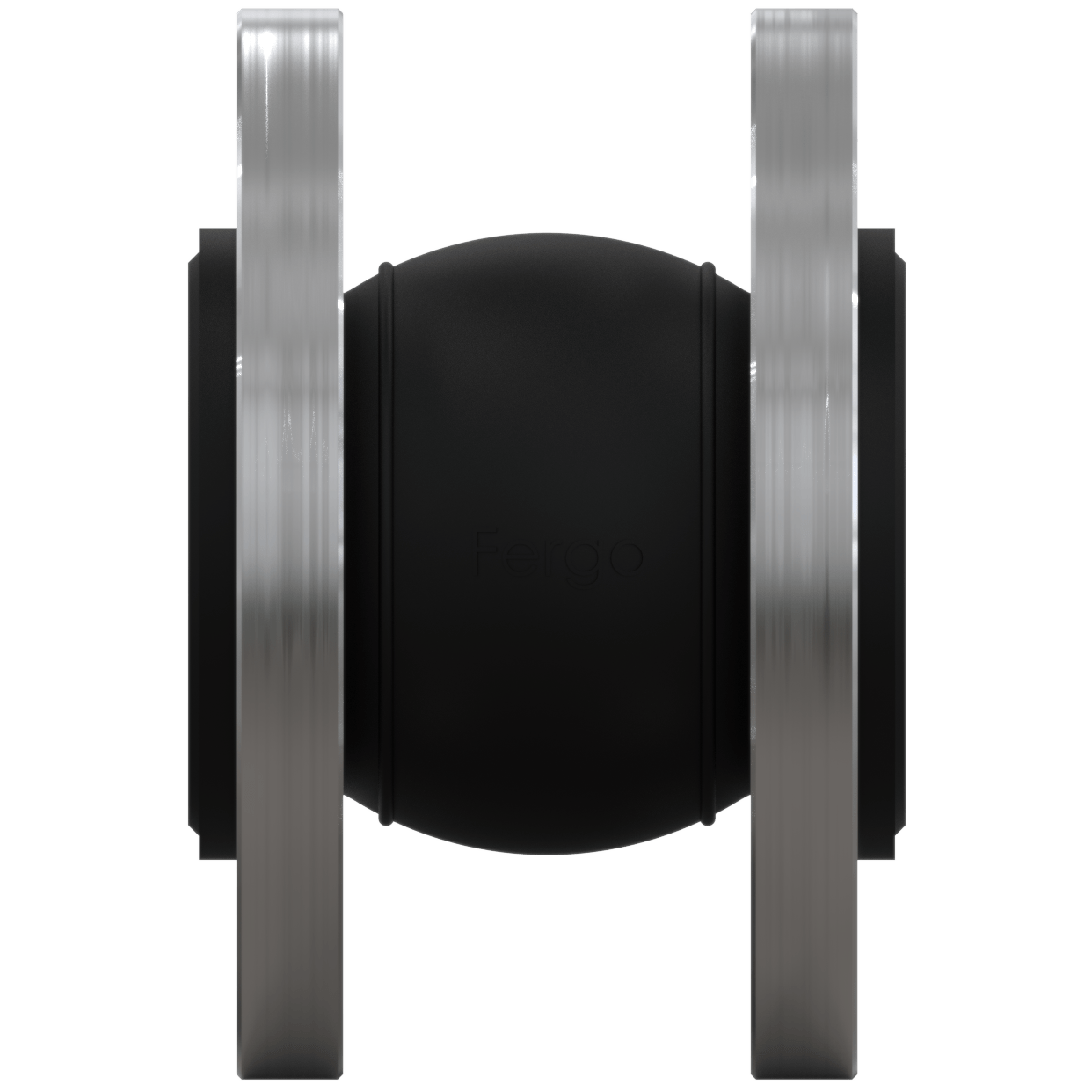

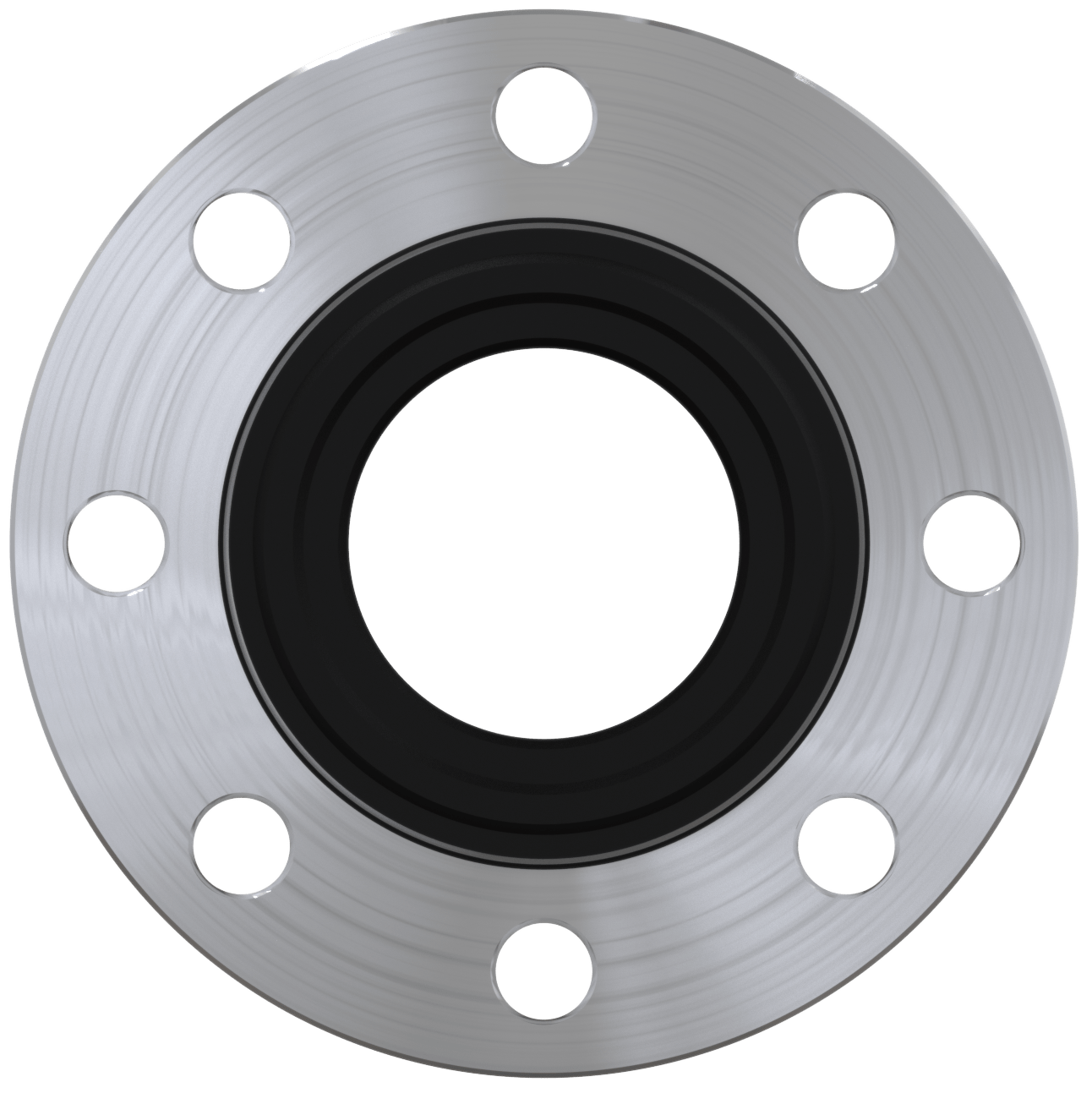

OG130 Rubber expansion joint DN 80 PN10/16 stainless steel EPDM 130mm
Product number 340-1045-11
Price €193.59
€230.37 incl. VAT
Delivery Time: 2-7 Days
Available: In Stock
Contact
Support and advice at:
Mon-Fri, 8:00 a.m. - 5:00 p.m
Mon-Fri, 8:00 a.m. - 5:00 p.m
Payment Methods
Shipping Methods
Description
Rubber expansion joint DN 80 with stainless steel flange
DIN PN10/16, Face to Face 130mm, EPDM nylon reinforced, Flange stainless steel, Max. working pressure 16 bar
Nominal width : DN80 3'' inch
Connection : Flange PN10 , Flange PN16
Design : Rubber compensator
Flange: Stainless Steel
Face to Face length : 130mm
Material Bellow: EPDM
Temperature range : max. +110°C (depending on operating pressure)
Availability: In Stock
Tender
Fergo Kompensator Typ OG130-SEF-DN80
Flansche gemäß DIN PN10/16Bauform: Gummikompensator
Baulänge: 130mm
Balg: EPDM, nylonverstärkt (Farbcode: rot)
Flansche: Edelstahl SS316
Max. Betriebsdruck: 16 bar
Temperatur: max. +110°C (abhängig vom Betriebsdruck)
Data sheet
Data sheet
3D-Model
Download 3D-Model
